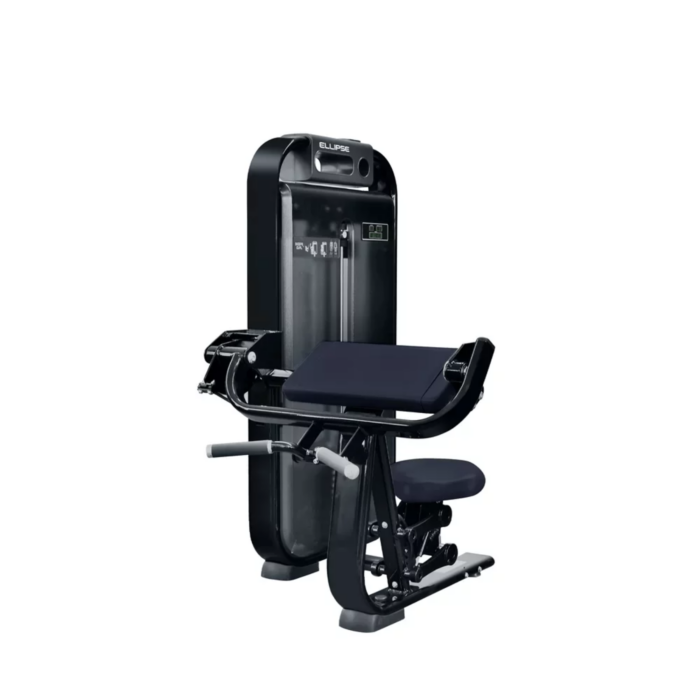

Gold SPG009 Biceps Curl Machine - Ellipse Selectorised

The Gold SPG009 biceps curl machine works from a 90 kg selectorised stack on a 242 kg frame measuring 1,115 x 1,422 mm. It is the dedicated elbow flexion station of the Ellipse line and is rated for users up to 180 kg.

Why a dedicated curl station earns its floor space

Free-weight curls are cheap to provide but expensive in supervision: members swing the torso, shorten the range and load the lumbar spine. The SPG009 fixes the shoulder against a preacher-style support and puts the elbow on a defined axis, so the load stays on the elbow flexors. In a busy club that translates into shorter coaching interventions and fewer complaints about elbow and wrist discomfort.

• Supported elbow flexion isolating biceps brachii and brachialis
• 90 kg pin-selected stack
• Seat and arm support geometry fixing the shoulder to prevent torso assistance
• 1,115 x 1,422 mm footprint, 1,656 mm overall height
• 242 kg machine weight, maximum user weight 180 kg

Programming and progression

The 90 kg stack covers the full membership range for a single-joint arm movement. Typical prescriptions are 3 sets of 10 to 15 repetitions for hypertrophy blocks, or higher-repetition finishing sets in circuit format. Because the movement is fully guided, it is also used as a controlled loading exercise in the later stages of elbow and forearm rehabilitation, where a free barbell would be inappropriate.

Arm zone layout

The SPG009 is usually paired with the SPG010 triceps station so that members can superset push and pull at the elbow without crossing the floor. Allow a clear 1.5 m in front of the arm pad for entry and exit. The 1,656 mm height keeps it below sightline level, which is useful when the arm zone sits along a mirrored wall or near the reception desk.

Technical specification

Frequently asked questions

Can two members of very different heights use it without tools?

Yes. Seat height is adjusted by the user before each set so that the upper arm lies flat on the pad with the elbow aligned to the pivot. No tools are needed and the adjustment takes a few seconds, which is what makes the station workable in a timed circuit.

How does it compare with a plate-loaded curl machine?

A selectorised stack is faster between sets and removes plate handling and storage, which suits high-traffic clubs and unstaffed sites. Plate-loaded units allow higher peak loads and a different resistance feel, but they need a plate tree next to every station.

What maintenance does it need?

Monthly inspection of the cable and end fittings, guide rod cleaning and lubrication, and a check on upholstery seams. Cable replacement intervals depend on traffic; in a club running above 400 sessions a week on the arm zone, plan an annual cable inspection with replacement as required.

Professional price: 1,950 EUR excluding VAT, delivered and positioned on quotation. We supply the SPG009 individually or as part of a matched Gold Ellipse circuit. Send us your equipment list for a consolidated quotation within 24 to 72 hours.
