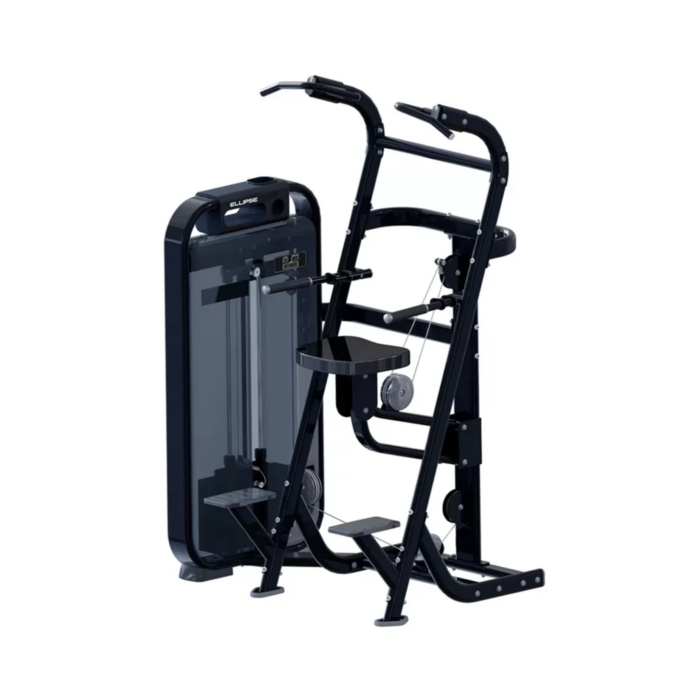

Gold SPG008 Assisted Pull-Up and Dip Machine - Ellipse

In brief — Gold SPG008 Assisted Pull-Up and Dip Machine: dimensions 148.5 × 116.5 × 219.5 cm, weight 290 kg, brand Ellipse, distributed by Light In Fitness, price 1,950.00 € excl. VAT.

The Gold SPG008 assisted pull-up and dip station carries the largest stack in the Ellipse range, 115 kg, on a 290 kg frame standing 2,195 mm tall. Footprint is 1,485 x 1,165 mm and maximum user weight is 180 kg.

Counterweight assistance, not resistance

This is the one station in the range where the stack works in the opposite direction. Instead of adding load, the selected weight counterbalances part of the member body weight through a kneeling or standing platform, so a member who cannot perform a single pull-up can complete a full set with correct technique. That is why the stack is 115 kg rather than 102 kg: the assistance has to scale up to cover heavier members.

• Assisted pull-up and assisted dip on a single frame
• 115 kg pin-selected counterweight stack, the largest in the Ellipse range
• 2,195 mm height, 1,485 x 1,165 mm footprint
• 290 kg machine weight, maximum user weight 180 kg
• Free-standing, no wall or ceiling fixing required

Progression pathway for a club

The commercial value of an assisted station is that it creates a visible progression. A member starting at 50 kg of assistance and reducing by 5 kg every few weeks has a measurable goal, and the first unassisted pull-up is a retention event. Clubs that run a pull-up progression as a member challenge typically build it around this station because the numbers are objective and easy to record.

Two exercises, one floor position

Pull-up and dip are the two most useful bodyweight upper-body movements, and both are inaccessible to a large part of a general membership. Covering them on one 1,485 x 1,165 mm frame is efficient use of floor area compared with a fixed bar and a separate dip station, neither of which would be usable by the members who need them most. Note the 2,195 mm height, the tallest station in the range: confirm ceiling and delivery access before ordering.

Technical specification

Frequently asked questions

How is the assistance level chosen?

More weight selected means more assistance, which is the opposite of every other machine on the floor and the single point that confuses new members. State it explicitly in the induction and in any signage next to the station.

Can a 180 kg member use it?

The station is rated to 180 kg. With 115 kg of assistance available, a heavier member still performs a meaningful portion of the movement, and the assistance is reduced as strength develops.

Does it replace a fixed pull-up bar?

Not for members who already train unassisted, who generally prefer a bar or a rig. It serves the members who cannot yet use one. Facilities with both usually see the assisted station used more heavily.

Professional price: 1,950 EUR excluding VAT, delivery and installation quoted per site. Confirm your ceiling height with the enquiry and we will return a layout and price within 24 business hours.
