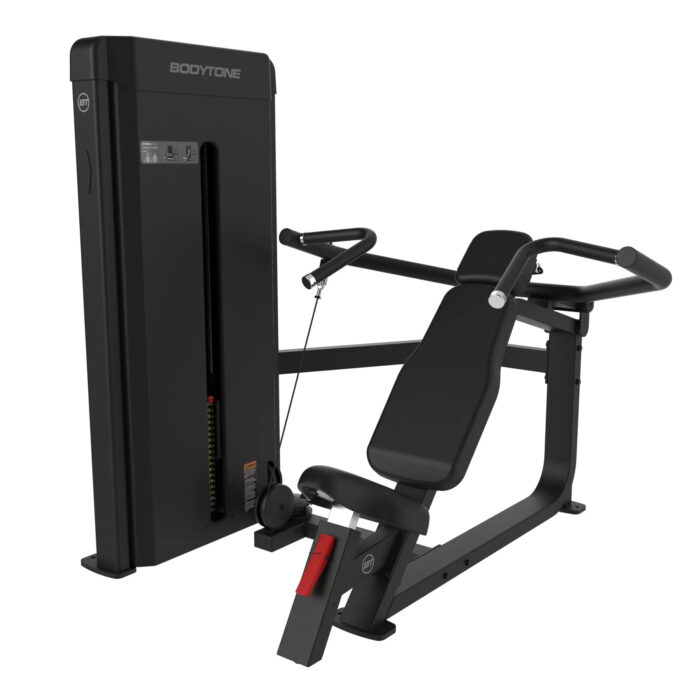

Bodytone Forza FB20 shoulder press with 107 kg stack

The Forza FB20 is a seated shoulder press with a 107 kg stack, a 145 by 145 cm footprint and a bottle holder and tray moulded into the shroud. The storage detail sounds trivial until a club counts how many drinks bottles end up on the floor around a press station.

Structurally the machine follows the Forza pattern: a stack tower in 110 x 50 mm carbon steel tube and a working frame in 100 x 50 mm, both with a 2.5 mm wall, joined by robot welding without spatter. Guide rods are stainless steel with a double hard chrome treatment for a consistent glide, pulleys are V grooved nylon running on internal bearings, and the cables are PVC coated steel of 5 mm diameter tested to 1000 kg. Plates run on ball bearings that stay quiet under repeated selection.

The finish is applied in three stages. Parts are pickled and stabilised by full immersion in degreasing solutions, an anti oxidation primer is applied, then two epoxy polyester powder coats are cured at 240 degrees Celsius. End caps are 3.5 mm ABS thermoplastic and the accessory tray is 3 mm ABS with a non slip texture. In service the machine weighs 102.5 kg plus 107 kg of plates.

Technical specification

Overhead pressing for a general membership

Barbell overhead work asks for shoulder mobility and bar control that a large part of any membership does not have. A guided press puts the same pattern within reach on the first visit, which is why the station tends to run continuously through peak hours in mixed clubs.

The footprint is close to square at 145 by 145 cm and the machine stands 150 cm tall, so headroom is not usually the constraint. Leave the stack loading flank clear and allow entry in front of the seat. A siting plan with clearances is issued with the quotation once we have your room drawing. We deliver to France, Belgium, Switzerland and Luxembourg, quote export per project, and dispatch within five to ten working days from stock.

Frequently asked questions

Which muscles does the station train?

The deltoids principally, with the triceps assisting the press and the upper chest and rhomboids contributing depending on the seat setting and handle position.

What does the three coat finish achieve?

Pickling and priming before painting is what stops corrosion starting under the coating. In a humid room with frequent cleaning, that preparation matters more to the life of the frame than the top coat itself.

Is the machine suitable for a hotel or residential gym?

Yes. It is built to class S for professional and commercial use, which covers unsupervised access in hotels and residences, and the guided path means no spotter is required.
