Circinus rope net play structure with four slides
Circinus rope net play structure with four slides : rope play sets for playgrounds, marque Light In Fitness, tarif sur devis. Circinus – structure de jeu en corde pour aire de jeux extérieureCircinus est une structure de jeu en corde composée de neuf poteaux porteurs, sur lesquels sont suspendus quatre modules de filets. Delivery and installation priced on quotation across Europe.
Price on request
Nine-post rope structure with four suspended net modules and four different slide types, from tube to triple.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-CIRCINUS-153. Layout study, delivery, installation and after sales.
Description

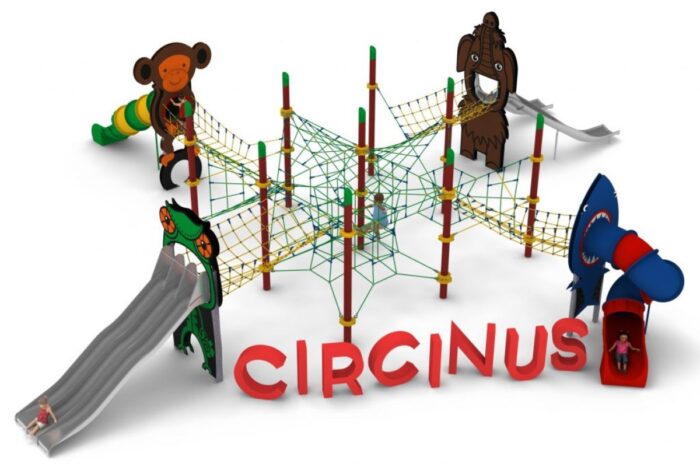

Circinus carries four suspended net modules on nine steel posts and pairs them with four different slides: a tube slide, a straight slide, a double slide and a triple slide, all faced with animal-themed HPL panels. That range of descents is the defining feature and it solves a specific operational problem.
Four slides, four experiences
- Nine steel bearing posts
- Four play net modules suspended between the posts
- Tube slide, straight slide, double slide and triple slide
- Animal-themed HPL decorative panels on all slide elements
A single slide is a bottleneck. Four slides of different types spread the descent load and, more importantly, let children self-select: the cautious take the straight slide, confident groups race on the double or triple, and the tube slide gives an enclosed option that appeals to a different temperament again.
Site requirements
The structure covers 20.5 x 18.6 m and stands 4.6 m high, with a reserved zone of 24.4 x 22.8 m. Each slide exit needs its own clear run-out inside that zone, so orientation matters: set the exits away from circulation routes and boundary fences at layout stage rather than after the foundations are cast at 1.0 m depth.
Materials
Hot-dip galvanised steel structure, nets in braided polyamide rope reinforced with a zinc-plated steel core, animal-themed HPL panels on the slides.
Technical specification
| Reference (SKU) | LIF-CIRCINUS-153 |
|---|---|
| Overall dimensions | 20.5 x 18.6 x 4.6 m (L x W x H) |
| Minimum safety area | 24.4 x 22.8 m |
| Age range | 5 to 14 years |
| Free height of fall | 2.85 m |
| Foundation depth | 1.0 m |
| Frame | Hot-dip galvanised steel posts, nine bearing posts |
| Finish | Hot-dip galvanised; steel-cored polyamide nets, HPL panels |
| Standard | PN EN 1176-1:2017, certificate issued by an independent body |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
Do four slides increase the maintenance burden?
Marginally. Slide beds and side walls are inspected visually at each routine check; the HPL facing panels are individually replaceable if damaged, so a repair is a component swap rather than a slide replacement.
Can the slide positions be reorientated on our site?
The design is supplied as a certified assembly, but the whole structure can be rotated to suit the plot. Send us the layout constraints and we will position the exits on the site drawing before manufacture.
How does Circinus differ from Sagitta?
Both stand 4.6 m. Sagitta is larger, with seventeen posts, twelve net modules and three slides, so it prioritises net area; Circinus concentrates on slide variety with four net modules and four descents.
Tell us your plot dimensions and where the circulation routes run and we will position the structure. Browse the combined rope play structures range or request a quote.
