Phoenix twelve-post rope net play structure
Phoenix twelve-post rope net play structure : rope play sets for playgrounds, marque Light In Fitness, tarif sur devis. Phoenix – structure de jeu en corde pour aire de jeux extérieurePhoenix est une grande structure de jeu en corde composée de douze poteaux porteurs, sur lesquels sont suspendus neuf modules de filets. Delivery and installation priced on quotation across Europe.
Price on request

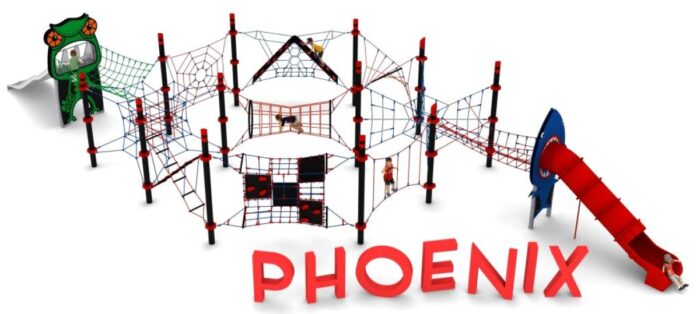

Large low-profile rope structure with twelve posts, nine suspended net modules and two decorated slides.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-PHOENIX-151. Layout study, delivery, installation and after sales.
Description
Phoenix spreads nine suspended net modules between twelve steel posts across a 21.5 x 13.0 m plan, but tops out at just 3.8 m. It is the lowest of the large multi-post structures, which makes it the one to specify where planning constraints, sightlines or a conservation setting rule out a tall silhouette.
A low, wide net landscape
- Twelve steel bearing posts carrying the net field
- Nine play net modules suspended between the posts
- A straight slide and a triple slide, both faced with animal-themed HPL panels
- Overall height limited to 3.8 m
Suspending the nets between posts rather than hanging them from a single mast produces a horizontal play field. Children travel across it, choosing their own line, instead of queueing to climb and descend. On a busy site that changes the character of the play area entirely.
Materials
Hot-dip galvanised steel structure. Nets in braided polyamide rope reinforced with a zinc-plated steel core. Animal-themed HPL decorative panels on the slides. Foundations at 1.0 m depth.
Technical specification
| Reference (SKU) | LIF-PHOENIX-151 |
|---|---|
| Overall dimensions | 21.5 x 13.0 x 3.8 m (L x W x H) |
| Minimum safety area | 25.7 x 17.3 m |
| Age range | 5 to 14 years |
| Free height of fall | 2.85 m |
| Foundation depth | 1.0 m |
| Frame | Hot-dip galvanised steel posts, twelve bearing posts |
| Finish | Hot-dip galvanised; steel-cored polyamide nets, HPL panels |
| Standard | PN EN 1176-1:2017, certificate issued by an independent body |
| Price | On request – project quotation within 24 business hours |
How suspended nets behave
A net hung between two posts moves under load, and that is the point. Children have to read the movement and adjust to it, which trains balance and core stability in a way a rigid frame cannot. The same yielding behaviour spreads impact rather than concentrating it, which is part of why a large net field carries so many users comfortably.
Frequently asked questions
Does a low structure mean a low fall height?
Not here. The free height of fall is 2.85 m because the net modules are suspended at height between the posts. Specify the surfacing from 2.85 m, not from the 3.8 m overall dimension.
Why choose Phoenix over a tall pyramid?
Sightlines and planning. A 3.8 m profile sits below most tree canopies and boundary treatments, which helps in sensitive settings, while the 21.5 x 13.0 m net field gives more simultaneous play than a pyramid of equivalent cost.
Are the slides part of the same certification?
Yes. The complete assembly, nets and slides together, is certified to PN EN 1176-1:2017 by an independent body, and the certificate is supplied with the technical file.
Send us your plot dimensions and any height restriction and we will confirm the fit. Browse the combined rope play structures range or request a quote.
