Vulcepula multi-unit rope net play structure
Vulcepula multi-unit rope net play structure : rope play sets for playgrounds, marque Light In Fitness, tarif sur devis. Vulcepula – structure de jeu en corde pour aire de jeux extérieureVulcepula est une très grande structure de jeu en corde combinant trois unités de grimpe reliées entre elles par dix poteaux et dix-sept modules de filets suspendus. Delivery and installation priced on quotation across Europe.
Price on request
Very large rope structure combining three linked climbing units, ten posts and seventeen suspended net modules.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-VULCEPULA-154. Layout study, delivery, installation and after sales.
Description

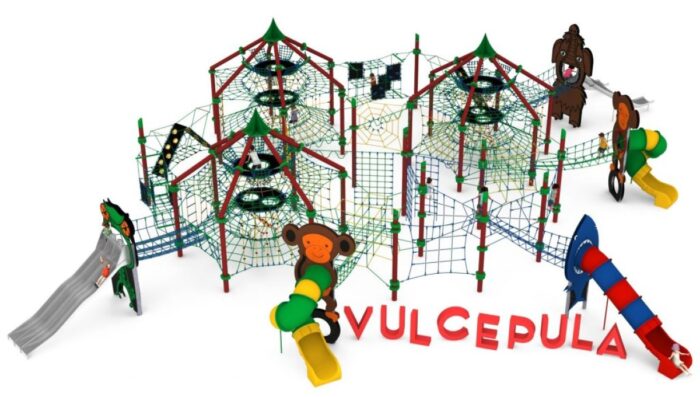

Vulcepula is organised as three climbing units linked into one continuous structure, carried on ten posts with seventeen suspended net modules and integrated slides. Across 30.8 x 23.8 m and rising to 5.7 m, it lets a designer do something a single unit cannot: zone the play area by ability while keeping it visually and physically connected.
Zoning without separating
- Three interconnected rope climbing units
- Ten bearing posts and seventeen suspended net modules
- Slides and descent elements faced with animal-themed HPL panels
- Continuous routes between units, so children progress rather than switch equipment
Separate pieces of equipment force a child to leave one and cross open ground to reach another, which is where supervision fails on large sites. Linking the units keeps the whole cohort inside one defined play envelope while still offering easier and harder zones.
Surfacing and site
The landing area must be finished with an impact-attenuating surface appropriate to the 2.85 m free height of fall, tested to EN 1177, across the full 34.8 x 28.3 m reserved zone. Foundations are cast at 1.0 m depth. At this scale the surfacing is a major cost line and should be tendered with the equipment rather than separately.
Materials
Hot-dip galvanised steel structure, nets in braided polyamide rope reinforced with a zinc-plated steel core, animal-themed HPL decorative panels.
Technical specification
| Reference (SKU) | LIF-VULCEPULA-154 |
|---|---|
| Overall dimensions | 30.8 x 23.8 x 5.7 m (L x W x H) |
| Minimum safety area | 34.8 x 28.3 m |
| Age range | 5 to 14 years |
| Free height of fall | 2.85 m |
| Foundation depth | 1.0 m |
| Frame | Hot-dip galvanised steel posts, ten bearing posts |
| Finish | Hot-dip galvanised; steel-cored polyamide nets, HPL panels |
| Standard | PN EN 1176-1:2017; impact surfacing to EN 1177 |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
What does EN 1177 cover that EN 1176 does not?
EN 1176 governs the equipment; EN 1177 governs the impact-attenuating surfacing beneath it, setting out how the critical fall height of a surface is determined by test. Both are needed for a compliant installation, and only the surfacing standard depends on your chosen material and depth.
Can the three units be installed in phases?
The design is supplied and certified as one assembly, so it is installed as a whole. Where budget has to be phased, a smaller structure now with a second unit later is usually the more practical route.
How does Vulcepula compare with Aquila?
Aquila is larger again at 39.9 x 39.3 m and 7.2 m high. Vulcepula gives a comparable multi-unit concept on roughly two thirds of the reserved area.
Send us the plot dimensions and your surfacing preference and we will price the equipment and the impact surface together. Browse the combined rope play structures range or request a quote.
