Viktoria rope play spacecraft structure for playgrounds
Price on request
Spacecraft shaped rope play structure of 7.1 by 6.3 m and 5.7 m high on 168.3 mm hot dip galvanised steel tube. Three levels, six access nets, certified to EN 1176-1:2017.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-VIKTORIA-045. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

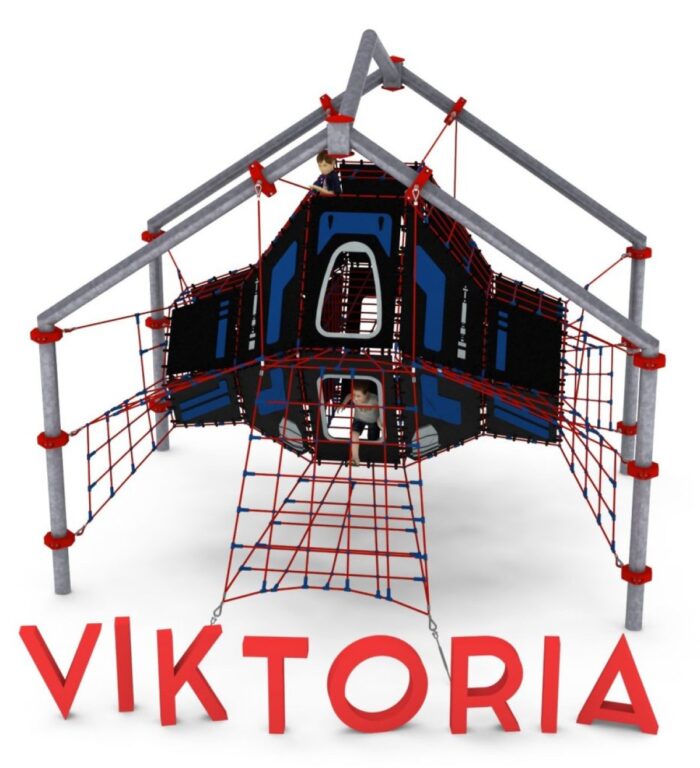

Viktoria is a rope play structure shaped as a spacecraft, 7.1 by 6.3 m and 5.7 m high, built on hot dip galvanised steel tubes of 168.3 mm diameter. The hull outline is drawn by the rope frame itself, reinforced by a rubber mat carrying decorative HPL plates, so the theme is part of the climbing structure rather than an applied decoration.
Inside, three horizontal levels and two rope walls of different sizes organise the circulation, and six peripheral nets of varying format provide access at several heights. That mix suits a mixed age group: the lower nets are reached by younger climbers while the upper levels require more confidence. Net tension is set and reset with hot dip galvanised turnbuckles.
The ropes are braided and bonded polyamide of 18 mm diameter reinforced with galvanised steel strands. Connectors are plastic and aluminium, while the rope to post fixings use stainless steel and cast steel coated in chloroprene rubber, a detail that protects the rope where movement concentrates.
Technical specification
| Structure | Hot dip galvanised steel tube, 168.3 mm diameter |
| Overall dimensions | 7.1 x 6.3 x 5.7 m |
| Minimum safety area | 11.3 x 10.2 m |
| Play levels | Three horizontal levels, two rope walls |
| Access nets | Six, of different formats |
| Rope | Braided and bonded polyamide, 18 mm, galvanised steel strands |
| Fixings | Plastic and aluminium connectors; stainless steel and chloroprene coated cast steel at posts |
| Free height of fall | 2.85 m |
| Foundation depth | 1.0 m, reinforced concrete |
| Age range | 5 to 14 years |
| Standard | EN 1176-1:2017, certified by an independent body |
| Reference | LIF-VIKTORIA-045 |
| Price | On application, quotation within 24 working hours |
Site requirements
Allow 11.3 by 10.2 m of clear area, surfaced with an impact attenuating material rated for a 2.85 m fall height in accordance with EN 1176-1:2017 and EN 1177. Foundations are reinforced concrete at 1.0 m depth, and installation requires access for heavy plant, which is the point to verify first on an enclosed courtyard or a school ground with restricted gates.
The structure works well as the single feature of a medium sized play area: it offers balance, coordination and imaginative play in one footprint, which is often more useful to a municipality than three small separate items.
Frequently asked questions
What clear area is required?
11.3 by 10.2 m minimum, including the impact area to be surfaced for a free height of fall of 2.85 m.
How is rope tension maintained?
Hot dip galvanised turnbuckles allow the tension to be adjusted during the periodic inspections required by EN 1176.
Does installation need special access?
Yes, heavy plant access is required for the foundation works and for placing the steel frame. Confirm gate widths and ground bearing at survey stage.
Request a quotation for a reply within 24 working hours, or browse the rope play sets range.
