Orpheus Circular Rope Climbing Tower
Orpheus Circular Rope Climbing Tower : rope play sets for playgrounds, marque Light In Fitness, tarif sur devis. Orpheus – structure de jeu en corde pour aire de jeux extérieureOrpheus est une tour de jeu en corde à géométrie circulaire, composée de six poteaux d'acier disposés autour d'un axe central et se rejoignant en un sommet commun. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Circular six-post rope climbing tower with variable-geometry net, climbing walls and six suspended rope seats. Ages 5 to 14, EN 1176-1.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-ORPHEUS-046. Layout study, delivery, installation and after sales.
Description

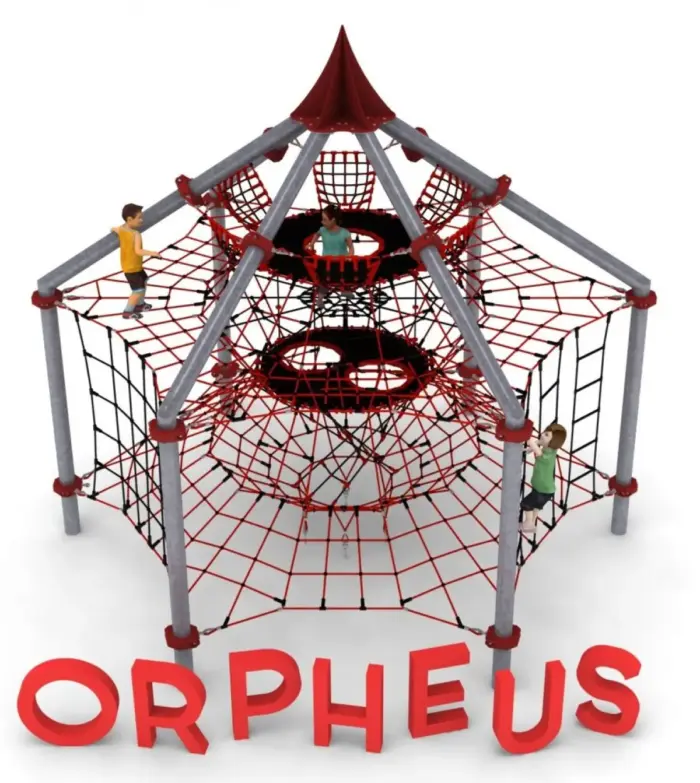

Orpheus is a circular climbing tower. Six galvanised steel posts stand on a three-metre-radius circle and converge on a common galvanised head, meeting at 124 degrees at a height of 3 m. Inside that cone sits a variable-geometry net, climbing walls and rope ladders, with six rope seats suspended in the upper section.
A tower that rewards route-finding
The circular plan means there is no front and no back. A child can start anywhere on the perimeter, and the varying mesh density of the central net makes some routes easy and others deliberately awkward. The seats at the top are the destination: reaching them requires a sustained climb rather than a few steps, and they give the small group who get there somewhere to stay.
Specification highlights
- Six steel posts, 168.3 mm diameter, hot-dip galvanised, arranged on a 3 m radius.
- Convergence angle of 124 degrees at a height of 3 m, meeting at a galvanised head.
- Central net of variable geometry, plus climbing walls and rope ladders.
- Six suspended rope seats in the upper section.
- Braided polyamide rope, 18 mm diameter, reinforced with galvanised steel strands.
Siting and surfacing
Orpheus occupies 6.3 x 5.5 m and stands 5.7 m tall, with a free height of fall of 2.85 m. The minimum safety area is 10.7 x 9.8 m and foundations are 1.0 m deep. The equipment is certified to EN 1176-1:2017 by an independent certification body; EN 1176-1 sets out the general safety requirements for playground equipment. The impact-attenuating surface beneath the tower is a separate specification and is tested and rated under EN 1177, to a critical fall height of at least 2.85 m across the whole safety area.
Technical specification
| Reference / SKU | LIF-ORPHEUS-046 |
|---|---|
| Dimensions (L x W x H) | 6.3 x 5.5 x 5.7 m |
| Age range | 5 to 14 years |
| Free height of fall | 2.85 m |
| Safety area | 10.7 x 9.8 m minimum |
| Frame | Steel posts 168.3 mm diameter, hot-dip galvanised, 6 units on a 3 m radius |
| Finish | 18 mm braided polyamide rope reinforced with galvanised steel strands |
| Foundations | 1.0 m depth |
| Standard | EN 1176-1:2017 (equipment), certified by an independent body; surfacing to EN 1177 |
| Price | On request — project quotation within 24 business hours |
Frequently asked questions
Which standard applies to the surfacing under Orpheus?
EN 1177. It defines how impact-attenuating playground surfacing is tested and how its critical fall height is determined. EN 1176-1 applies to the equipment, not to the ground — the two are often confused in supplier literature.
How many children can use the tower at once?
The six rope seats set the practical limit at the top, while the perimeter net accommodates a larger group lower down. Circulation stays comfortable because there is no single entry point.
Does the 5.7 m height need planning consent?
That depends on the local authority and the site designation. We supply elevation drawings with the quotation so the height can be submitted with any application.
Request a quotation. Send your site plan and we will return a project quotation, siting drawing and certification file within 24 business hours.
