Playground safety surfacing and critical fall height
On a playground, the surfacing is the only component that acts after the accident, and it is specified from the free fall height of the equipment, never from the appearance of the material. Two surfaces of identical thickness can attenuate impact very differently, which is why the figure that matters is the critical fall height determined by test, not the depth quoted in a catalogue. This guide explains how the thresholds work, how impact areas are calculated and how the main surfacing families compare.
The two standards that govern the surface
Across Europe, playground equipment is covered by the EN 1176 series, with dedicated parts for swings, slides, cableways, roundabouts and rope structures. Impact attenuating surfacing is covered by EN 1177, which determines the critical fall height of a surface through a head injury criterion test. National implementing rules differ from one country to another, in particular on who is responsible for what and on record keeping, but the technical reference is the same everywhere.
Two other standards are frequently confused with these. EN 16630 covers permanently installed outdoor fitness equipment and EN 16899 covers parkour equipment. If a site combines a children’s playground with an adult outdoor gym, they are two distinct zones, with two sets of signage and two reference standards. Treating them as one installation is a common cause of non conformity.
Free fall height, critical fall height and impact areas
Free fall height is the greatest height from which a child can fall from a foreseeable use position. It is calculated using the method in EN 1176 1, it is not estimated by eye, and it drives two decisions: whether a certified attenuating surface is required, and how far that surface has to extend.
| Free fall height | Surfacing required | Impact area |
|---|---|---|
| Up to 60 cm | Attenuating surface with no formal certification required; concrete and asphalt are excluded under any equipment | 1.50 m |
| 60 cm to 1.50 m | Certified attenuating surfacing, with critical fall height at least equal to the free fall height | 1.50 m |
| Above 1.50 m | Certified attenuating surfacing, with critical fall height at least equal to the free fall height | Two thirds of the height plus 0.50 m |
Undersized impact areas are the single most frequent problem we see on installed sites. A cramped layout creates three cumulative risks: collisions between users, falls beyond the edge of the attenuating surface, and unsafe routes for accompanying adults and pushchairs. The area of the site is therefore calculated as the sum of the impact areas plus circulation, never from the footprint of the structures alone. If the distances have to be reduced for the layout to fit the plot, it is the programme that needs revising, not the distances. Three correctly placed modules are worth more than six non compliant ones.
Comparing the surfacing families
| Solution | Strengths | Points to watch | Best suited to |
|---|---|---|---|
| Wet pour rubber | Seamless finish, graphics possible, comfort, good wheelchair access | Installation quality is decisive, substrate drainage, localised repairs remain visible | Urban sites with heavy use and high design expectations |
| Rubber impact attenuating tiles | Modular, replaceable individually, simple maintenance, thickness calibrated to the required critical fall height | Substrate flatness, joint integrity, edge restraint | The best cost to maintenance compromise on most projects |
| Wood effect rubber tiles | Landscape integration, the visual warmth of timber without its upkeep | Same substrate requirements as standard tiles | Residential schemes, hotels, campsites, natural settings |
| Graded wood chips | Low initial cost, natural and free draining material, high critical fall height at sufficient depth | Regular levelling, hygiene monitoring, material displacement under swings | Parks, wooded sites, constrained budgets with maintenance resource in place |
| Washed sand or gravel | Very low cost, available everywhere | Cleanliness, contamination, accumulation of litter, frequent regrading | Occasional use, rarely recommended for public authorities |
| Natural grass | Visually pleasant, no cost where it already exists | Insufficient on its own once fall height is significant, wears out rapidly in impact areas | Circulation zones only, never under equipment |
For loose fill materials, a 30 cm layer of wood chips graded 5 to 30 mm, bark 20 to 80 mm, washed sand 0.2 to 2 mm or rounded gravel 2 to 8 mm reaches a critical fall height in the order of 3 m. In intensive use, plan 40 cm to compensate for material displacement, and budget for regrading as a recurring operating cost rather than an occasional task.
What decides whether the surface lasts ten years
Three technical points determine durability, and none of them appears on a product data sheet.
Drainage comes first. Standing water under the surfacing is the primary cause of degradation on any outdoor installation. Falls, perimeter drains and a free draining sub base are handled during groundworks and cannot be corrected afterwards.
Substrate bearing capacity comes second. Tiles laid on poorly compacted fill separate within one or two winters, and the joints open irreversibly.
Edge restraint comes third. A kerb or edge anchor prevents the surface from creeping under frost cycles and foot traffic. On tiled surfaces this is what keeps the joints closed over time.
Site layout also affects the surface. Orientation and shade matter, since a stainless slide facing full south becomes hot; visibility from resting areas matters for supervision; and access for maintenance plant should be planned before the surfacing is laid, not discovered afterwards.

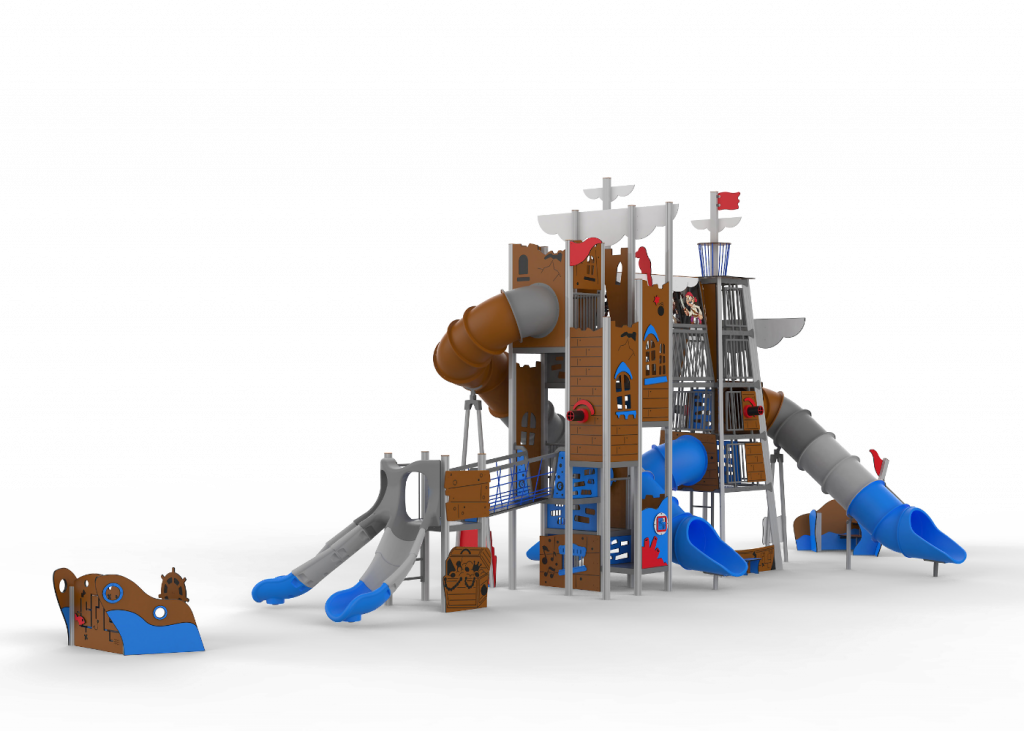

Materials of the equipment above the surface
The surfacing choice is often driven by the equipment it sits under, so the material specification of the structures is part of the same decision.
| Material | What it offers | What it requires |
|---|---|---|
| Timber | Visual warmth, landscape integration, favourable carbon footprint | Serious design and finishing, approved treatment, monitoring of wear and splintering |
| Hot dip galvanised and powder coated steel | The outdoor standard: robustness, corrosion resistance, wide colour choice | Touch up after impact or vandalism |
| Stainless steel 304 or 316L | Essential in corrosive environments such as coastal sites and salt spray | Higher cost, and the grade must genuinely match the exposure |
| HPL and HDPE panels | Excellent UV stability, colour through the mass, easy cleaning, graffiti resistance | Fixings and panel thickness to be checked on large panels |
| Braided polyamide ropes and nets | Flexibility, durability, steel core on professional ranges | Inspection of swaged terminals and wear at friction points |
For coastal projects the rule is straightforward: stainless steel takes over from galvanised steel. More generally the deciding factor is not the material but the maintenance you can actually deliver. The best material is the one you can clean easily, inspect visually, and repair by replacing a single part without closing the site for three months, so check spare part availability before ordering.
Access and inclusion also influence the surface choice. Routes that are usable by wheelchair up to the modules point towards wet pour or tiled surfacing rather than loose fill, and shared activities offered at several difficulty levels work better than one isolated dedicated module.
Frequently asked questions
When is a certified attenuating surface mandatory?
As soon as the free fall height exceeds 60 cm. Below that threshold an attenuating surface is still required, but without formal certification. Concrete and asphalt are excluded under any equipment, at any height.
Does thickness alone determine the performance of a surface?
No. What counts is the critical fall height established by the EN 1177 test for that specific product and build up. Two surfaces of the same thickness can perform very differently, which is why the certificate is requested product by product.
Can wood chips replace rubber tiles?
They can, at 30 cm depth, or 40 cm in intensive use, provided the site has the resource to regrade the material regularly and monitor its condition. Loose fill has a lower purchase price and a higher operating cost.
Can a playground and an outdoor gym share the same surface?
They should be two distinct zones, because they fall under different standards, EN 1176 for play equipment and EN 16630 for outdoor fitness. Each zone needs its own signage and its own surfacing specification.
What documents should be requested at handover?
The layout drawings, the assembly and use instructions, the spare parts list, the declaration of conformity for the equipment and the classification certificate for the surfacing, plus a maintenance record opened on day one.
