TRAINER Steel4Fit Cross-Country Skier - Outdoor Full-Body Station

In brief — TRAINER Steel4Fit Cross-Country Skier: dimensions 161.8 × 51.3 × 202 cm, weight 50 kg, maximum load 150 kg, minimum height 140 cm, safety area 462 x 352 cm, standards EN 16630:2015, designed by Light In Fitness in Tours and manufactured in Europe (steel with 20-year warranty), price 2,130.00 € excl. VAT.

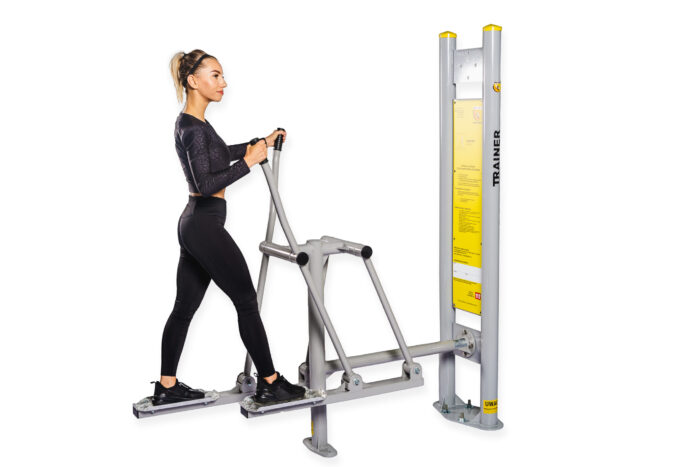

The TRAINER Steel4Fit Cross-Country Skier reproduces the skiing action outdoors for a full-body workout. It measures 1,618 x 513 x 2,020 mm, weighs 50 kg plus a 50 kg mounting pylon, and is certified to EN 16630:2015 by TUV Rheinland. Professional price: 2,130 EUR excluding VAT.

Full-body work at an easy difficulty level

Arms and legs move in opposition, as in cross-country skiing, so the station loads the legs, the arms and the trunk in one continuous pattern. That combination is unusual on an outdoor circuit: most stations isolate either the upper or the lower body, and few train coordination at all. Difficulty is rated easy and the movement is self-limiting, which makes it accessible to every level while still producing a genuine cardio-respiratory effect over a sustained session.

It is also one of the more intuitive stations on a public site – users understand the movement without instruction, which matters where there is no signage or staff.

Steel4Fit construction

• Seamless S355 curved sections and S235 straight sections, high-quality welded
• Hot-dip galvanised, then powder coated twice
• Red and graphite finish, RAL 3000 / RAL 7016
• Mounted on its pylon, anchored into concrete foundations
• No stack, cable or electronics

Technical specifications

Where it is installed

Urban parks and municipal fitness areas under intensive use. EN 16630:2015 is the European standard for permanently installed outdoor fitness equipment and is the reference specified in public tenders for this category. Keep the 462 x 352 cm safety area clear and surfaced to the free height of fall.

See the full Steel4Fit outdoor range to combine cardio and strength stations on one circuit.

Frequently asked questions

Is the movement suitable for beginners?

Yes. It is rated easy, the arc is limited by the frame and there is no load to select. It is one of the stations we recommend placing near the entrance of a fitness area for that reason.

Why are station and pylon weights listed separately?

The station weighs 50 kg and the pylon a further 50 kg. Both are needed to size the concrete foundation, and the drawings supplied with the order use the combined figure.

What maintenance does it need?

An annual inspection of the pivot bearings, anchor bolts and coating. There is no cable, stack or upholstery to replace.

Light In Fitness designs and supplies outdoor fitness areas for local authorities, campsites, hotels and property developers. Send us your site plan and we will quote equipment, surfacing and installation together.
