TRAINER Steel4Fit quadriceps press, outdoor leg station

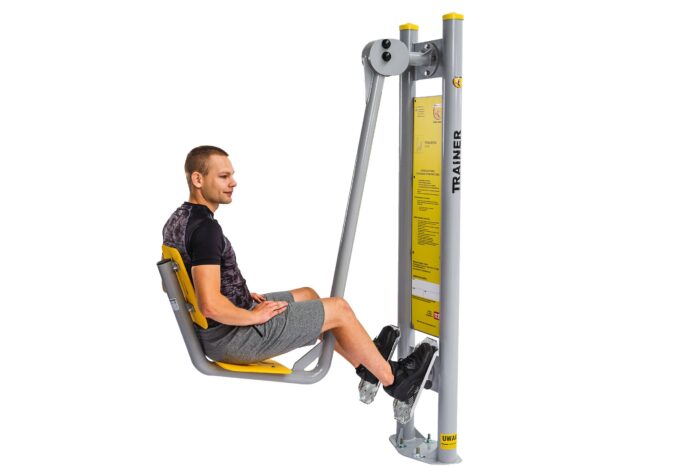

The TRAINER Steel4Fit quadriceps press is a pylon mounted outdoor leg press of 163.5 x 60 x 202 cm weighing 35 kg, certified to EN 16630:2015 and tested by TUV Rheinland. A guided pressing movement loads the quadriceps first, with the glutes and the lower abdominal muscles working to stabilise. It is the lower body strength station in the reinforced range, and in a public circuit it is the one that most directly addresses the leg strength people lose with age.

Technical specification

Leg strength as a public health objective

Quadriceps strength is one of the clearest predictors of independence in later life, because it governs standing up from a chair, climbing stairs and recovering balance. A guided leg press lets someone train that capacity with the trunk supported and no risk of losing balance under load, which a squat or a step up cannot offer to an unsupervised user. In a municipal fitness area serving a mixed age population, this station has a wider practical benefit than most of the upper body units alongside it.

• Guided press loading the quadriceps directly
• Glutes and lower abdominal muscles working as stabilisers
• Seated, supported position with no balance demand
• Body weight resistance, nothing to select or adjust
• 163.5 x 60 cm envelope on a shared support pylon

Installation and durability

The station mounts on a support pylon which adds around 50 kg and is priced separately with its foundation. Reserve the 455 x 360 cm safety area, the longest in this group of stations because the legs extend well beyond the frame, and surface it against the free height of fall on the installation drawing.

The Steel4Fit specification uses seamless S355 for curved elements, so no weld seam sits in the highest stress zone, and S235 for straight members. Hot dip galvanising followed by two powder coats gives corrosion and UV protection that does not depend on the paint remaining intact. Inspect the pivot bushings, the footplate and the pylon anchorage during routine visits, and record the annual main inspection required of the operator.

Frequently asked questions

How heavy is the resistance?

It is a proportion of the user own body weight, set by the lever geometry. That makes the station usable by a wide range of visitors without any adjustment, and it means progression comes from repetitions and control rather than added load.

Is the pylon included?

No. The support pylon adds around 50 kg and is quoted separately along with its foundation, delivery and installation.

Why is the safety area longer than for other stations?

Because the legs extend forward through the movement. The 455 x 360 cm zone covers the working envelope of an extended user, not just the footprint of the frame, in line with EN 16630 practice.
