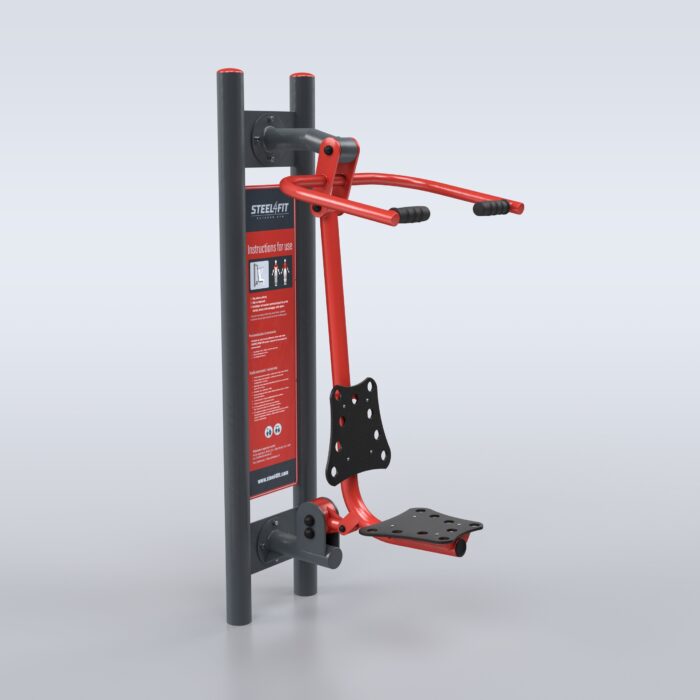

TRAINER Steel4Fit Single Puller - Outdoor Pull Station
2,448.00 € excl. VAT
Outdoor upper-body pulling station from the reinforced Steel4Fit range. Seamless S355 curved sections, S235 straight components, hot-dip galvanised and twice powder coated, HDPE seats and aluminium treads.
Priced quotation within 24 business hours. No commitment. Our commitments
Description
The Steel4Fit Single Puller is an outdoor upper-body station built for pulling movements against body weight. Curved elements are seamless S355 steel, straight components S235, hot-dip galvanised and powder coated twice. The apparatus weighs around 40 kg with a further 50 kg for the mounting post. Professional price: 2,448 EUR excluding VAT.
The pulling half of a balanced circuit
The station loads the shoulders, the back, the shoulder girdle and the chest through a seated pulling movement. Public fitness trails routinely over-supply pushing stations, and the result is a circuit that reinforces the postural imbalance most desk-based users already have. A dedicated pulling station is the correction, and its medium difficulty rating keeps it usable by the general public.
- Seated pulling movement loading the back, shoulders and shoulder girdle
- Difficulty rated medium
- Minimum user height 140 cm, maximum user weight 150 kg
- HDPE seats and aluminium treads
- No cables, no weight stack, no seasonal servicing
The Steel4Fit specification
Steel4Fit is the reinforced build of the TRAINER range. Curved sections are formed from seamless S355 steel instead of welded tube, straight components are S235, and the assembly is hot-dip galvanised then powder coated twice. The second coat is what extends the repainting interval on sites exposed to UV, salt or heavy handling. The signature finish is red and graphite, RAL 3000 and RAL 7016. The range is galvanised steel, not stainless.
Standards and site planning
Certified to EN 16630:2015 and tested by TUV Rheinland. The recommended safety zone is approximately 4 x 3.75 m, around 15 square metres kept clear of paths, planting and neighbouring apparatus. The 50 kg mounting post is set into a concrete foundation designed to the anchoring drawings supplied with the equipment.
| Reference | R02A-STEEL4FIT |
|---|---|
| Type | Outdoor upper-body pulling station, post mounted |
| Dimensions | 962 to 1254 mm long, 705 to 741 mm wide, up to 2020 mm high |
| Weight | Approximately 40 kg, plus 50 kg mounting post |
| Maximum user weight | 150 kg |
| Minimum user height | 140 cm |
| Safety zone | Approximately 4 x 3.75 m |
| Difficulty | Medium |
| Frame | Seamless S355 curved sections, S235 straight components, hot-dip galvanised |
| Finish | Double powder coating, RAL 3000 / RAL 7016 |
| Fittings | HDPE seats, aluminium treads |
| Standard | EN 16630:2015, TUV Rheinland certified |
| Price | 2,448 EUR excluding VAT |
Frequently asked questions
Why specify Steel4Fit rather than the standard build?
Because of the site, not the exercise. Seamless S355 curved sections resist impact damage, and the second powder coat over hot-dip galvanising extends corrosion protection. Both pay for themselves on high-traffic urban and coastal installations; on a quiet residential site the standard build is usually sufficient.
Can it be installed alongside the Single Pusher?
Yes, and that is the recommended pairing. The two stations load opposing muscle groups and share the same post format, finish and inspection regime, so they can be installed on the same run of foundations.
How much clear ground is needed?
Approximately 4 x 3.75 m, around 15 square metres. The apparatus footprint is much smaller, but the safety zone is the figure that determines whether the site can take the station.
This station is quoted at 2,448 EUR excluding VAT, before delivery, foundations and installation. Send us the site plan and the list of stations under consideration and we will return a complete budget within 24 to 72 hours. See the full outdoor gym equipment range.
