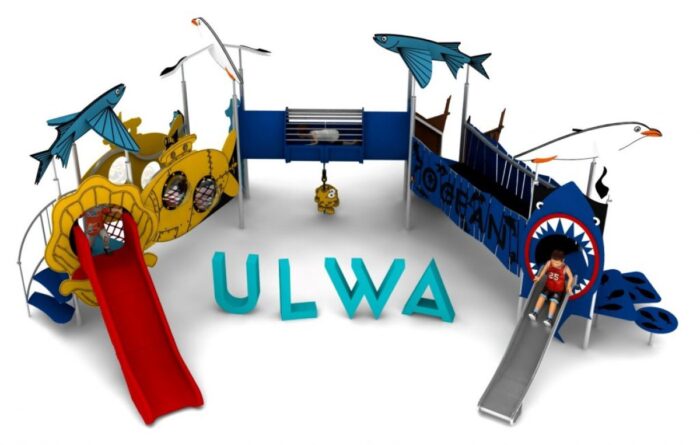

ULWA large rope play structure

In brief — ULWA large rope play structure: dimensions 880 × 850 × 330 cm, material stainless steel, free fall height 1,0 m, age range 0 to 14 years, safety area 11,3 x 11,1 m, standards EN 1176, certification certificate of conformity from an independent certification body, price on quotation.

ULWA covers 8.8 x 8.5 m and stands 3.3 m high, but the figure that matters most to a specifier is the free height of fall: 1.0 m. That combination, a large play surface with a low fall height, is unusual and it is exactly what makes ULWA a practical choice for open-access sites where supervision cannot be guaranteed.

Capacity without the fall height

• Rope nets on several faces so children are not queueing at a single entry point
• Several raised platforms, giving groups somewhere to gather rather than one contested summit
• A secure access point suited to the youngest users
• Approved from 0 to 14 years, so a single unit serves toddlers and primary-age children

Why the low fall height matters

Surfacing is often the largest line in a playground budget after the equipment itself. A 1.0 m free height of fall keeps the required impact attenuation modest across a 11.3 x 11.1 m safety area, which can make the difference between a scheme that lands inside budget and one that does not. It also widens the range of acceptable surfaces, so you are not automatically pushed towards the deepest and most expensive build-up.

Materials

Stainless steel posts, 18 mm polyamide rope with a braided galvanised steel core, aluminium and stainless steel connectors, HPL decorative panels and high-strength concrete foundations at 0.6 m depth.

Technical specification

Frequently asked questions

How many children can play on ULWA at the same time?

The 8.8 x 8.5 m plan area and the spread of nets and platforms are sized for a class-sized group rather than a handful of users, which is why the unit suits schools, large campsites and busy district parks.

Can toddlers use it unaccompanied?

The approved range starts at 0 years and there is a secure access point designed for very young users, but the equipment is not a substitute for supervision. Operators should keep to a documented routine inspection regime whatever the age band.

How does ULWA compare with the taller units in the range?

Taller marine-themed structures reach a 2.6 or 3.0 m free height of fall and are aimed at children from 3 or 5 years upward. ULWA deliberately stays low, trading vertical challenge for inclusivity and lower surfacing cost.

Send us the plot dimensions and the surfacing you have in mind and we will return a costed layout. Explore the wider rope play sets range or request a quote for ULWA.
