STADION - Large Central-Mast Rope Structure with Six Arches

In brief — STADION – Large Central-Mast Rope Structure with Six Arches: dimensions 1430 × 1370 × 700 cm, material steel, free fall height 3,0 m, age range 5 to 14 years, standards EN 1176-1:2017, certification certificate of conformity from an independent certification body, price on quotation.

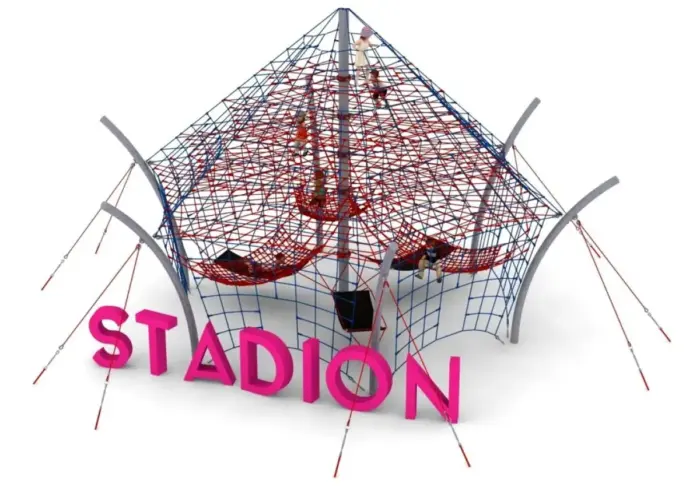

The STADION is our high-capacity rope structure for busy public playgrounds. Built around a 7.0 m central mast ringed by six peripheral steel arches, it deploys a six-wall climbing net, four elevated platforms and six suspended hammocks – enough varied play zones to absorb the footfall of a major park, leisure destination or school campus.

Designed for crowds, not queues

Where single-route climbers create waiting lines, the STADION spreads children aged 5 to 14 across a 14.3 x 13.7 m arena of nets, platforms and rest points. Four horizontal platforms at 3.0, 3.85, 4.70 and 5.55 m create a vertical progression, while three reinforced-rubber hammocks at 1.0 m and three net hammocks at 1.5 m give younger or tired users places to swing, lounge and socialise without leaving the structure.

Key features

• Central steel mast 7.0 m high, diameter 219.1 mm, hot-dip galvanised
• Six peripheral steel arches, diameter 168.3 mm
• Six-wall linear climbing net in braided polyamide reinforced with galvanised steel cable, diameter 18 mm
• Four horizontal platforms at 3.0 / 3.85 / 4.70 / 5.55 m
• Three reinforced-rubber hammocks (2.0 x 0.9 m at 1.0 m) and three net hammocks (2.3 x 1.5 m at 1.5 m)
• Plastic and aluminium connectors; stainless and cast steel fixings; reinforced concrete foundations
• Free fall height 3.0 m; foundation depth 1.0 m; minimum space 17.3 x 16.6 m

Specifications

Frequently asked questions

How does the STADION handle peak-time crowds?

Its six net walls, four platforms and six hammocks operate as parallel play zones, so dozens of children can climb, traverse and rest simultaneously instead of queueing for a single route.

What site area should I reserve?

Plan a minimum clear area of 17.3 x 16.6 m with impact-attenuating surfacing rated for a 3.0 m free fall height, plus construction access for installation machinery.

Can the STADION be paired with smaller equipment?

Yes. It is often specified as the centrepiece of a zoned playground, with compact cones and web climbers nearby for younger children; we can propose a full layout with your quotation.

Request your quotation
