AKUKU - Four-Arch Rope Dome with Central Well

In brief — AKUKU – Four-Arch Rope Dome with Central Well: dimensions 720 × 720 × 550 cm, free fall height 3,0 m, age range 5 to 14 years, standards EN 1176-1:2017, certification certificate of conformity from an independent certification body, price on quotation.

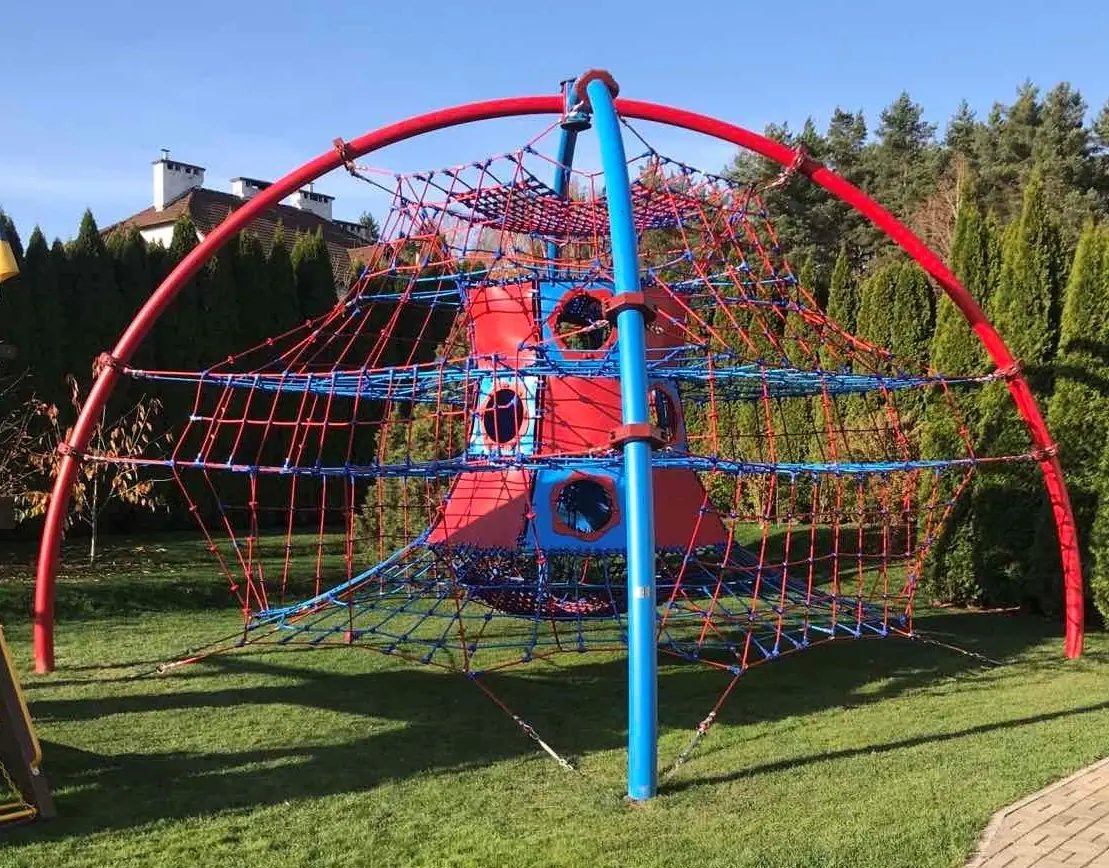

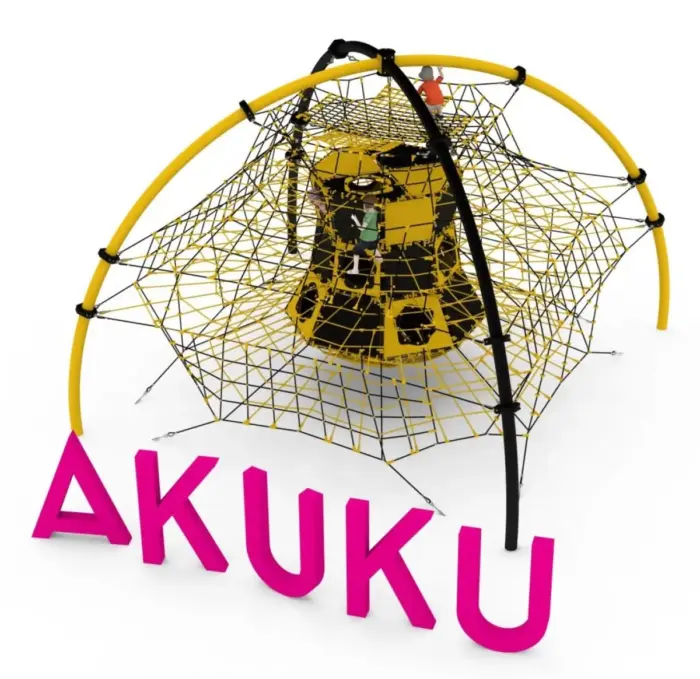

The AKUKU wraps a five-level spatial rope network around four curved steel arches, creating a dome that looks impressive yet feels reassuring. A central well protected by a reinforced rubber mat and a low-level hammock give younger climbers safe places to pause, making this the dome to specify when your audience skews towards first-time climbers.

A confidence-building dome for young climbers

Many spatial nets intimidate cautious children. The AKUKU is organised differently: four external net walls lead progressively inwards and upwards across five horizontal levels, while the rubber-matted central well and the hammock in the lower section provide visible, easy-to-reach comfort zones. Children aged 5 to 14 can choose their own level of challenge within the same 7.2 x 7.2 m structure.

Key features

• Four curved steel arches, diameter 168.3 mm, hot-dip galvanised and powder-coated
• Four external net walls with five horizontal levels
• Central well protected by 10 mm reinforced rubber matting
• Low-level hammock for rest and social play
• Braided, bonded polyamide ropes; cast steel fixings
• Age range 5 to 14; free fall height 3.0 m; foundation depth 1.0 m
• Certified to EN 1176-1:2017 by an independent test body

Specifications

Frequently asked questions

What makes the AKUKU suitable for less confident climbers?

The rubber-protected central well and low hammock offer safe resting points inside the net, so children can progress level by level instead of committing to a full ascent.

What is the required safety area?

Plan a minimum clear zone of 12.1 x 12.1 m with impact-attenuating surfacing rated for the 3.0 m free fall height.

How is the frame protected against corrosion?

The steel arches and cast fixings are hot-dip galvanised and then powder-coated, a dual protection suited to year-round outdoor exposure in public settings.
