METIS XL Rope Crossing with Net and Arches
METIS XL Rope Crossing with Net and Arches : rope play modules for playgrounds, marque Light In Fitness, tarif sur devis. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Wide-span combined module with three arches and a dense climbing net.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-METISXL-015. Layout study, delivery, installation and after sales.
Description

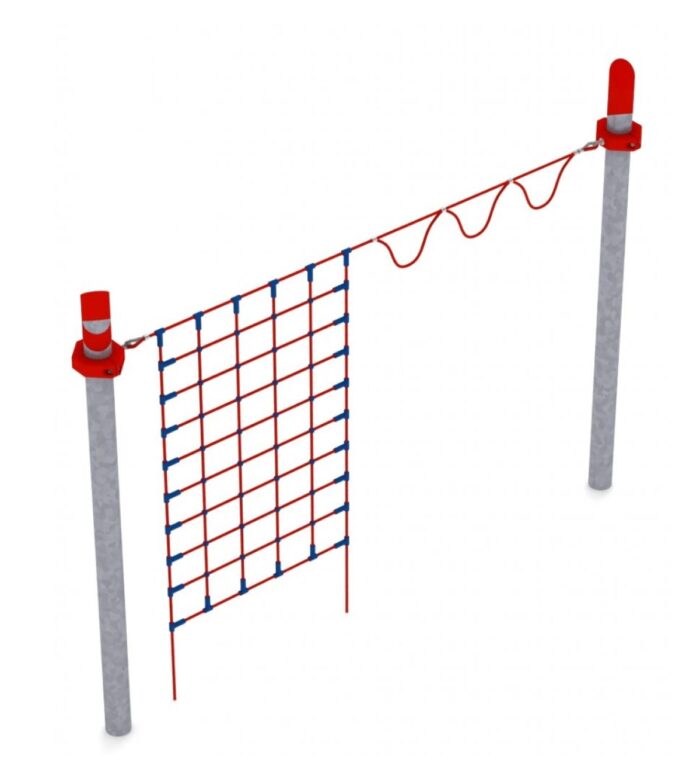

METIS XL combines a main rope at 2.65 m to 2.85 m with three half-circle arches and a net of nine horizontal and six vertical ropes, over a post spacing of 4.24 m. Two vertical ropes anchored to the ground hold the assembly in its designed shape.
A module that behaves like three
With three arches and a denser net, METIS XL offers a traverse along the top, a climb through the mesh and a hanging route underneath. Children move between the three without leaving the module, which is why it is often the piece that ends up defining a rope trail rather than simply belonging to it. The approximately 0.3 x 0.3 m mesh is fine enough to be climbed by feet as well as hands.
- Main horizontal rope at 2.65 m to 2.85 m
- Three half-circle arches, radius approximately 0.3 m
- Net of nine horizontal and six vertical ropes, mesh approximately 0.3 x 0.3 m
- Two vertical ropes anchored to the ground
- Posts with galvanised and powder coated caps
Technical specification
| Reference | LIF-METISXL-015 |
|---|---|
| Dimensions | 4.6 x 0.3 x 3.0 m (L x W x H) |
| Age range | 5 to 14 years |
| Free height of fall | 2.85 m |
| Safety area | 5.3 x 9.6 m minimum |
| Foundation depth | 1.0 m, reinforced concrete footings |
| Net | Nine horizontal and six vertical ropes, mesh approximately 0.3 x 0.3 m |
| Arches | Three half-circles |
| Post spacing | 4.24 m |
| Frame | Hot-dip galvanised steel posts, 168.3 mm diameter |
| Ropes | Braided and bonded polyamide, 18 mm, galvanised steel core |
| Standard | EN 1176-1:2017, certificate issued by an independent certification body |
| Price | On request — project quotation within 24 business hours |
Choosing it as a single-module scheme
Where a client can install only one rope module, the combined types give the widest range of movement for a single surfaced area. METIS XL asks for 5.3 x 9.6 m of impact attenuating surface to EN 1176-1, roughly 51 square metres, and in return supports climbing, traversing and hanging.
Maintenance
The denser the net, the more crossing points there are to inspect. Sheath abrasion at the intersections and the condition of the ground anchors are the two recurring items, recorded under the routine, operational and annual regime required by EN 1176.
Frequently asked questions
How many children can use it at once?
Several, distributed between the net and the traverse. Loading the module at multiple points changes how it moves, which is part of the play value and is accounted for in the certification.
Does it need more foundation work than a simple crossing?
No. It uses the same two posts on 1.0 m reinforced concrete footings, plus the ground anchors for the vertical ropes.
Can the net be specified with a different mesh?
No. The configuration is certified as built, and opening sizes are part of that assessment.
Request a quotation for a reply within 24 working hours, or compare the other rope play modules.
