SANCHO square rope play structure
SANCHO square rope play structure : diamond Collection large rope play structures, marque Light In Fitness, tarif sur devis. SANCHO – Large structure de jeu en corde carréeSANCHO offre une emprise généreuse et équilibrée, permettant à plusieurs enfants d'évoluer simultanément sur ses filets de cordes et plateformes. Delivery and installation priced on quotation across Europe.
Price on request
Near-square rope structure giving equal access on all four sides, with a low 1.0 m free height of fall.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-SANCHO-1316. Layout study, delivery, installation and after sales.
Description

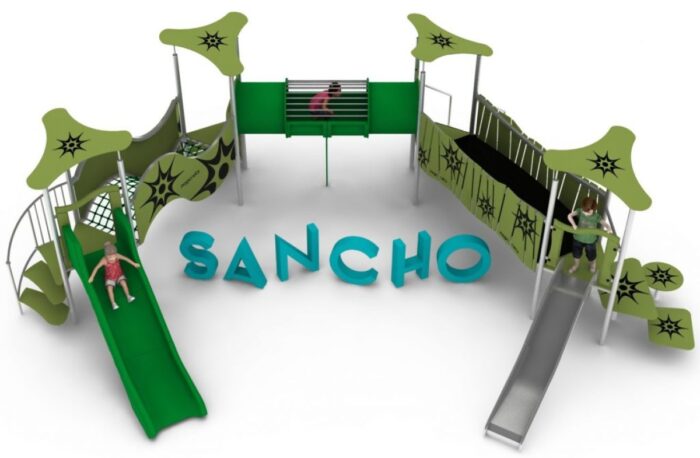

SANCHO is close to square at 8.7 x 8.2 m and stands only 2.8 m high. The symmetry is the point: children can join the structure from any side, so groups arriving from different directions distribute themselves naturally instead of converging on one entrance.
Four-sided access in practice
- Climbing nets on every face, each one a valid way in
- Raised play platforms reachable by more than one route
- A secure access point suited to the youngest users
- Approved from 0 to 14 years, free height of fall held to 1.0 m
In a school playground where a whole year group arrives at the same moment, a single-entry structure creates a queue and a supervision problem within seconds. A symmetrical layout removes it. The 2.8 m overall height also keeps the whole unit within the sightline of a member of staff standing at the edge of the surfacing.
Materials
Stainless steel posts, 18 mm polyamide rope with a braided galvanised steel core that is cut resistant and UV stabilised, aluminium and stainless steel connectors, HPL decorative panels and high-strength concrete foundations at 0.6 m depth.
Technical specification
| Reference (SKU) | LIF-SANCHO-1316 |
|---|---|
| Overall dimensions | 8.7 x 8.2 x 2.8 m (L x W x H) |
| Minimum safety area | 11.3 x 11.1 m |
| Age range | 0 to 14 years |
| Free height of fall | 1.0 m |
| Foundation depth | 0.6 m |
| Frame | Stainless steel posts; 18 mm polyamide rope with braided galvanised steel core |
| Finish | Aluminium and stainless steel connectors, HPL decorative panels |
| Standard | EN 1176 |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
Why does a 2.8 m structure only have a 1.0 m fall height?
Free height of fall measures the greatest distance a user can actually fall from a supported body position, not the height of the highest post. The platform levels and the enclosing nets on SANCHO keep that figure at 1.0 m throughout.
Does the square plan need a square plot?
The reserved zone is 11.3 x 11.1 m, so an approximately square area is needed. On rectangular plots JONKER at 17.5 x 7.5 m or MOUNTY at 12.6 x 9.4 m usually sit better.
Is SANCHO suitable for supervised group activity?
Yes. Four-sided access, an open 2.8 m profile and a uniform fall height make it straightforward to run structured sessions with a class, which is why it is a common choice for primary schools and holiday clubs.
Send us your plot dimensions and expected group size and we will confirm the fit. Browse the Diamond Collection play structures or request a quote.
