Rope play configuration no. 35 - pyramid with sliding pole and double slide

In brief — Rope play configuration no. 35: dimensions 3480 × 1950 × 800 cm, material hot-dip galvanised and powder-coated steel, free fall height 3,0 m, age range 5 to 14 years, standards EN 1176-1:2017, certification certificate of conformity from an independent certification body, price on quotation.

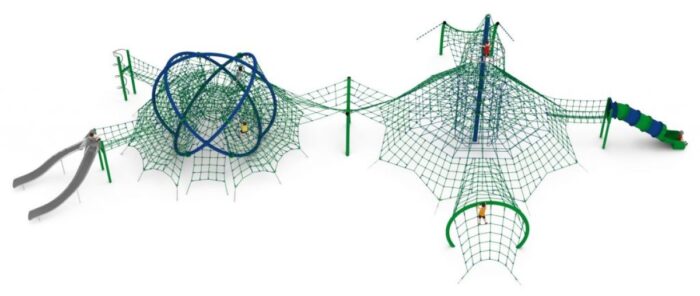

Configuration 35 brings eight integrated components together across 34.8 x 19.5 m and 8.0 m in height: a rope play pyramid with decorative elements and a straight slide, a transition passage, and a play structure equipped with a tubular sliding pole and a double slide.

Components

• A rope play pyramid with decorative elements
• A straight slide
• A play structure fitted with a tubular sliding pole
• A double slide
• A transition passage linking the two ends

Why a sliding pole earns its place

A sliding pole is the fastest descent on any play structure and it demands a different skill from a slide: a controlled grip and a deliberate release rather than a passive ride. Including one alongside two slide types gives children three genuinely different ways down, which spreads the descent load and keeps older users engaged on a structure they would otherwise outgrow.

Site and installation

Reserve 39.1 x 22.8 m. The free height of fall is 3.0 m and foundations are cast at 1.0 m depth. The sliding pole and both slides each need a clear landing area within the reserved zone, so the orientation is fixed at layout stage.

Materials

Hot-dip galvanised and powder-coated steel structure.

Technical specification

Frequently asked questions

Is a sliding pole suitable for a public playground?

Yes, within the 5 to 14 age range this configuration is approved for. It is a certified component of the assembly, with the landing area included in the safety zone, and it is inspected as part of the routine regime.

Why is this configuration 8.0 m tall?

The play structure and the pyramid both rise well above the transition passage, which gives the composition its silhouette. The free height of fall remains 3.0 m, so the surfacing is specified from that figure rather than the overall height.

Can the decorative elements be themed to our brief?

Decorative elements are supplied with the pyramid and the steelwork is powder coated, so colour and finish can be discussed at order stage.

Send us the plot dimensions and your theme brief and we will return a costed layout. Browse the complex playground configurations range or request a quote.
