Portia Parent and Child Swing
Portia Parent and Child Swing : playground swing sets and inclusive swing seats, marque Light In Fitness, tarif sur devis. Portia – Balançoire Parent-EnfantPortia permet à un parent et un jeune enfant de se balancer ensemble, face à face. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Face-to-face swing in stainless steel letting an adult and a young child swing together.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-PORTIA-615. Layout study, delivery, installation and after sales.
Description

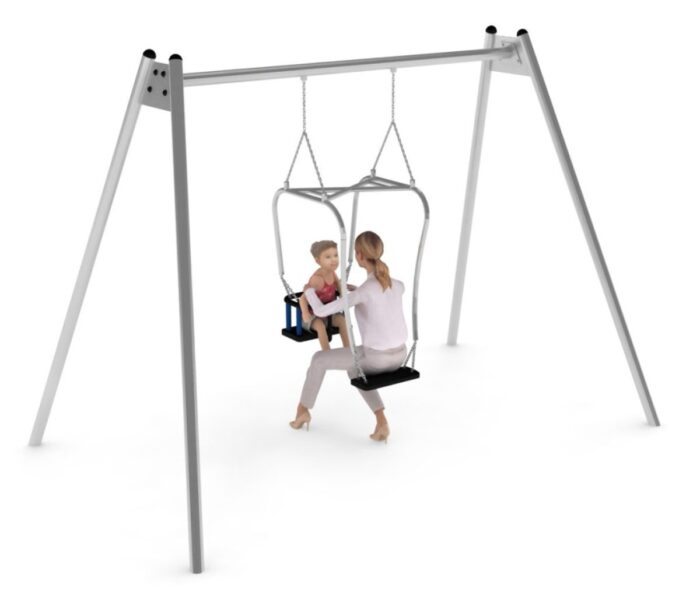

Portia lets an adult and a small child swing together, facing each other, on a single splayed-leg frame in grade 0H18N9 stainless steel. One side carries a flat seat with a steel insert and an EPDM rubber cover for the adult; the other carries a cradle seat, also EPDM covered, for the child.
Why a face-to-face swing
Very young children get more from a swing when they can see the adult who is with them. The face-to-face arrangement keeps eye contact throughout the movement, which makes it usable from a much earlier age than a conventional bay, and it removes the awkward business of an adult pushing from behind while trying to reassure a nervous toddler. In practice it is the item that keeps parents in the play area rather than on the bench.
- Splayed-leg frame and top beam in 76.1 mm grade 0H18N9 stainless steel tube
- Flat adult seat with steel insert, EPDM rubber covered
- Cradle seat for the young child, EPDM rubber covered
- Stainless steel connectors, chains and suspensions with maintenance-free bearings
Technical specification
| Reference | LIF-PORTIA-615 |
|---|---|
| Dimensions | 3.5 x 2.2 x 2.5 m (L x W x H) |
| Age range | 0 to 14 years |
| Free height of fall | 1.8 m |
| Safety area | 8.0 x 2.2 m minimum |
| Foundation depth | 0.6 m, concrete footings |
| Frame | Stainless steel tube, grade 0H18N9, 76.1 mm |
| Seats | Flat seat with steel insert and cradle seat, both EPDM rubber |
| Finish | Bare stainless steel |
| Standard | Certified to EN 1176 by an independent certification body |
| Price | On request — project quotation within 24 business hours |
Siting
The safety area of 8.0 x 2.2 m runs along the direction of travel, so Portia fits a long, narrow strip better than a square corner. The landing zone must be finished with an impact attenuating surface to EN 1176-1, sized against the 1.8 m free height of fall.
Maintenance
Stainless steel needs no repainting, and the suspension bearings require no lubrication. Inspection concentrates on the EPDM seat covers and the chain condition, within the routine, operational and annual regime required by EN 1176.
Frequently asked questions
What adult weight is the flat seat designed for?
The seat is built around a steel insert for adult use with a young child opposite. We confirm the design loading in writing with the technical file at quotation stage.
Can the cradle seat be swapped for a second flat seat later?
Yes. The suspension points are common, so the seat can be changed as the child population of the site ages, without altering the frame or the foundations.
Is it a good fit for a campsite or holiday park?
It is one of the most used items on family sites, because it works for the youngest guests and keeps an adult involved. The stainless frame also holds up well in coastal locations.
Tell us the strip of ground you have available and we will confirm the fit. Request a quotation or browse the playground swing sets range.
