PHOBOS 3 m Rope Climbing Pyramid

Name: PHOBOS 3 m rope climbing pyramid
Brand: Light In Fitness
SKU: LIF-PHOBOS-202

PHOBOS 3 m rope climbing pyramid

PHOBOS 3 m rope climbing pyramid: rope climbing pyramids for playgrounds, marque Light In Fitness, tarif sur devis. Overall dimensions 600 × 600 × 300 cm. Brand: Light In Fitness. Delivery and installation priced on quotation across Europe.

Price on request

Shipping quoted separately The shipping cost is confirmed before you approve the order.

Compact 3 m climbing pyramid with a single net platform at 1.8 m, concentrating the challenge rather than spreading it.

Price on request – project quotation within 24 business hours.

This item is supplied on quotation: configuration, delivery and installation are priced against your project.

Request a quotation +33 6 20 72 66 96

Answer within 24 working hours, quote reference LIF-PHOBOS-202. Layout study, delivery, installation and after sales.

Conformity: equipment designed to EN 1176 (playground equipment); the Light In Fitness declaration of conformity for this reference is supplied on request with the quotation.

Warranty: specified in the quotation for each reference — details of our warranties.

Light In Fitness: B2B manufacturer and distributor of professional sports equipment since 2013, with more than 2,500 customers equipped (gyms, CrossFit boxes, local authorities, hotels, care homes, military bases). New equipment only. Light In Fitness range: designed in Tours, France, manufactured in Europe.

Description

In brief — PHOBOS 3 m rope climbing pyramid: dimensions 600 × 600 × 300 cm, free fall height 1,8 m, age range 5 to 14 years, standards EN 1176-1, price on quotation.

PHOBOS takes a different approach from the multi-level pyramids: instead of two or three intermediate nets, it has one platform, set high at 1.8 m. Reaching it is the whole objective, and that single clear goal is what makes a 3 m structure hold the attention of children from five upwards.

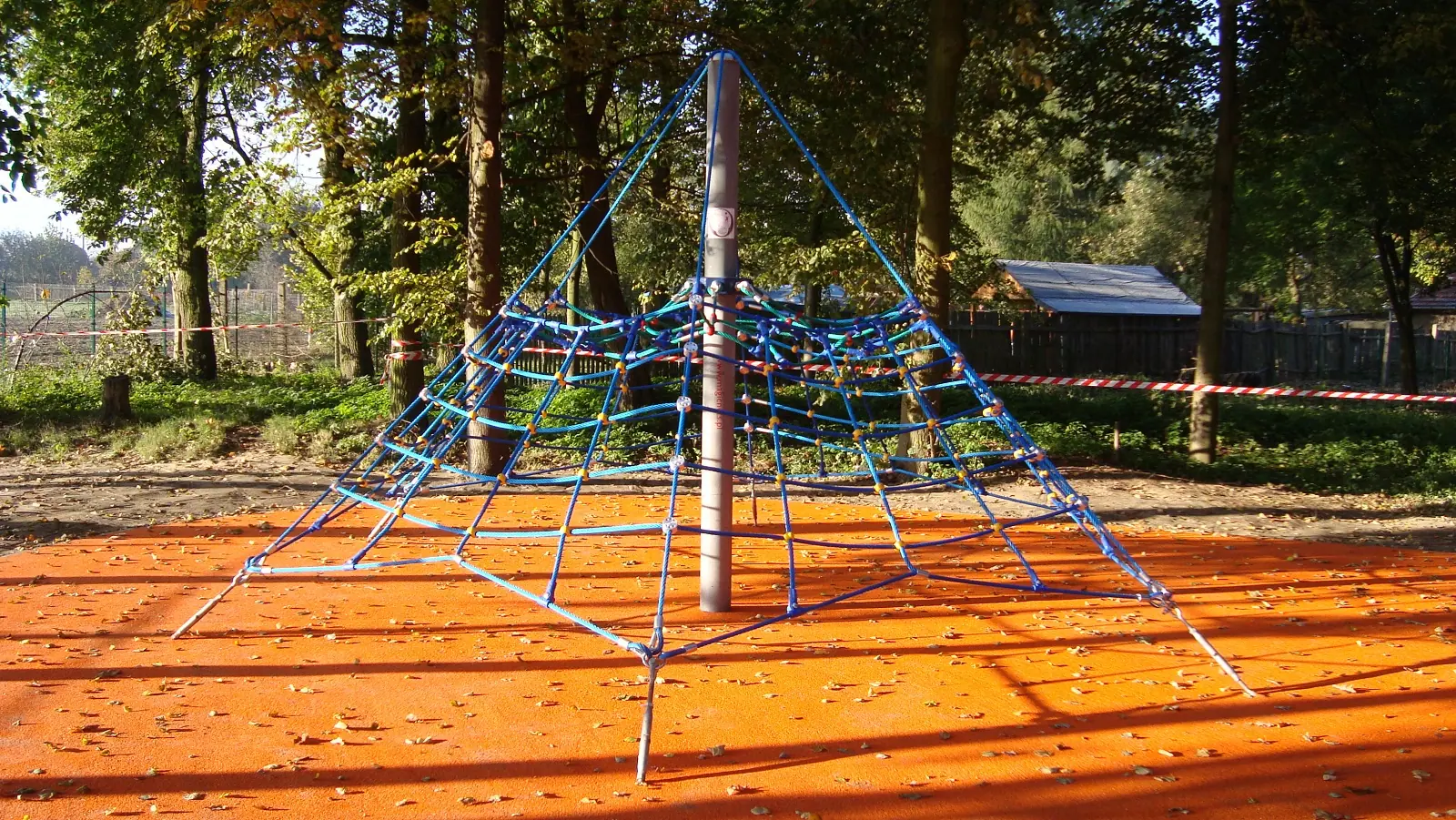

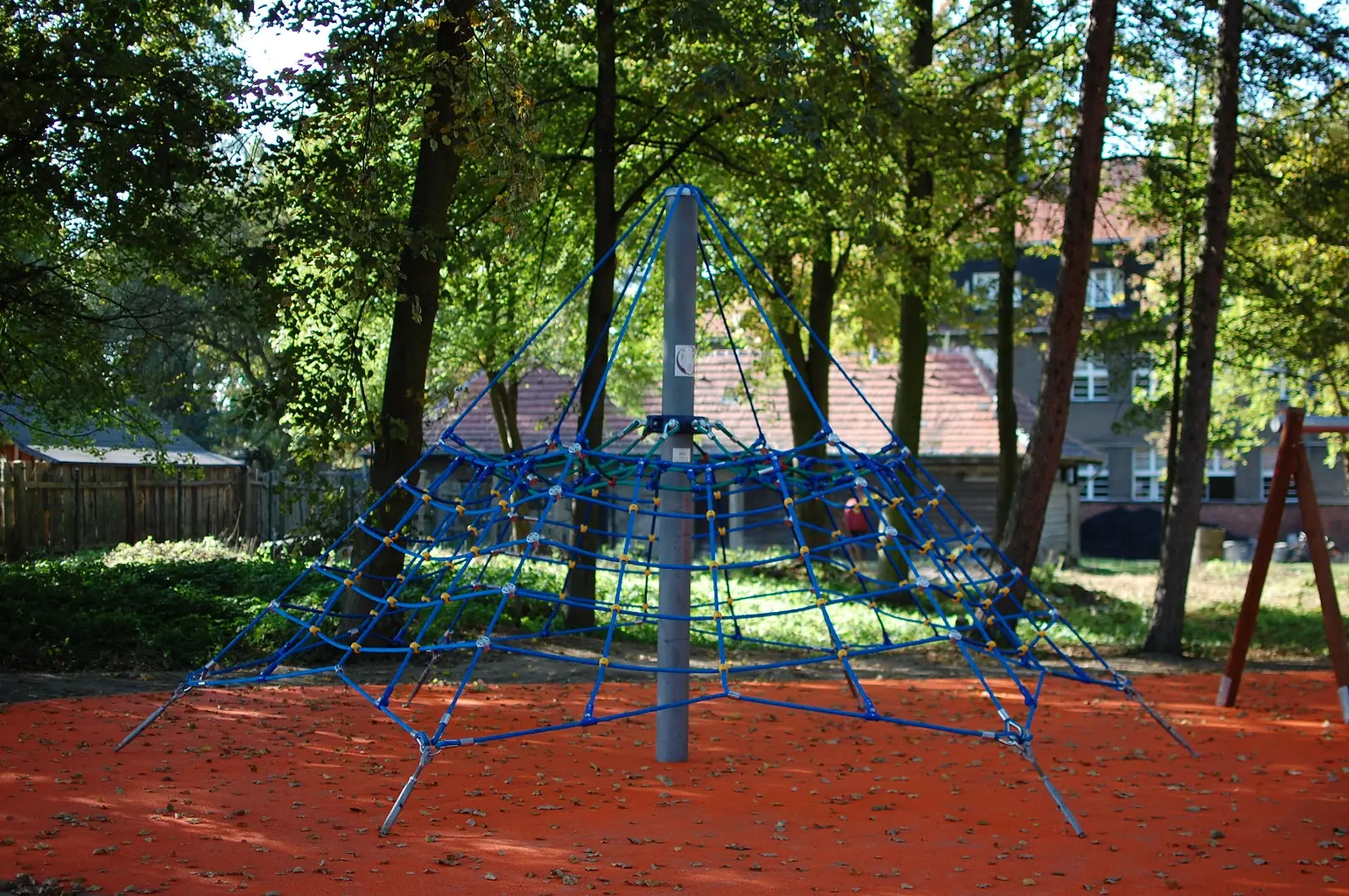

Configuration

Central hot-dip galvanised steel mast, 168.3 mm diameter, 3 m high
Six main bearing cables anchored to the ground
Six net walls between the bearing cables

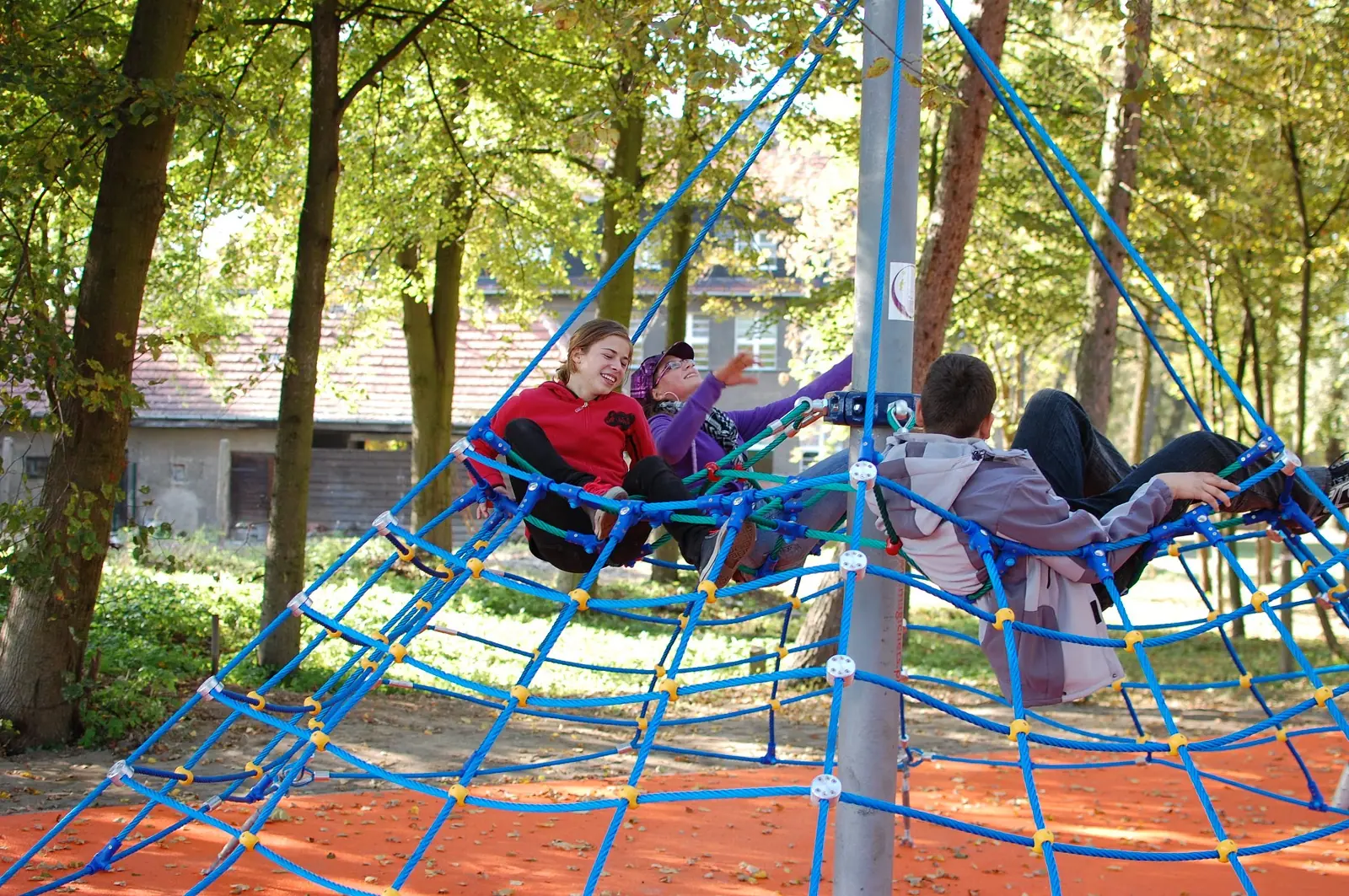

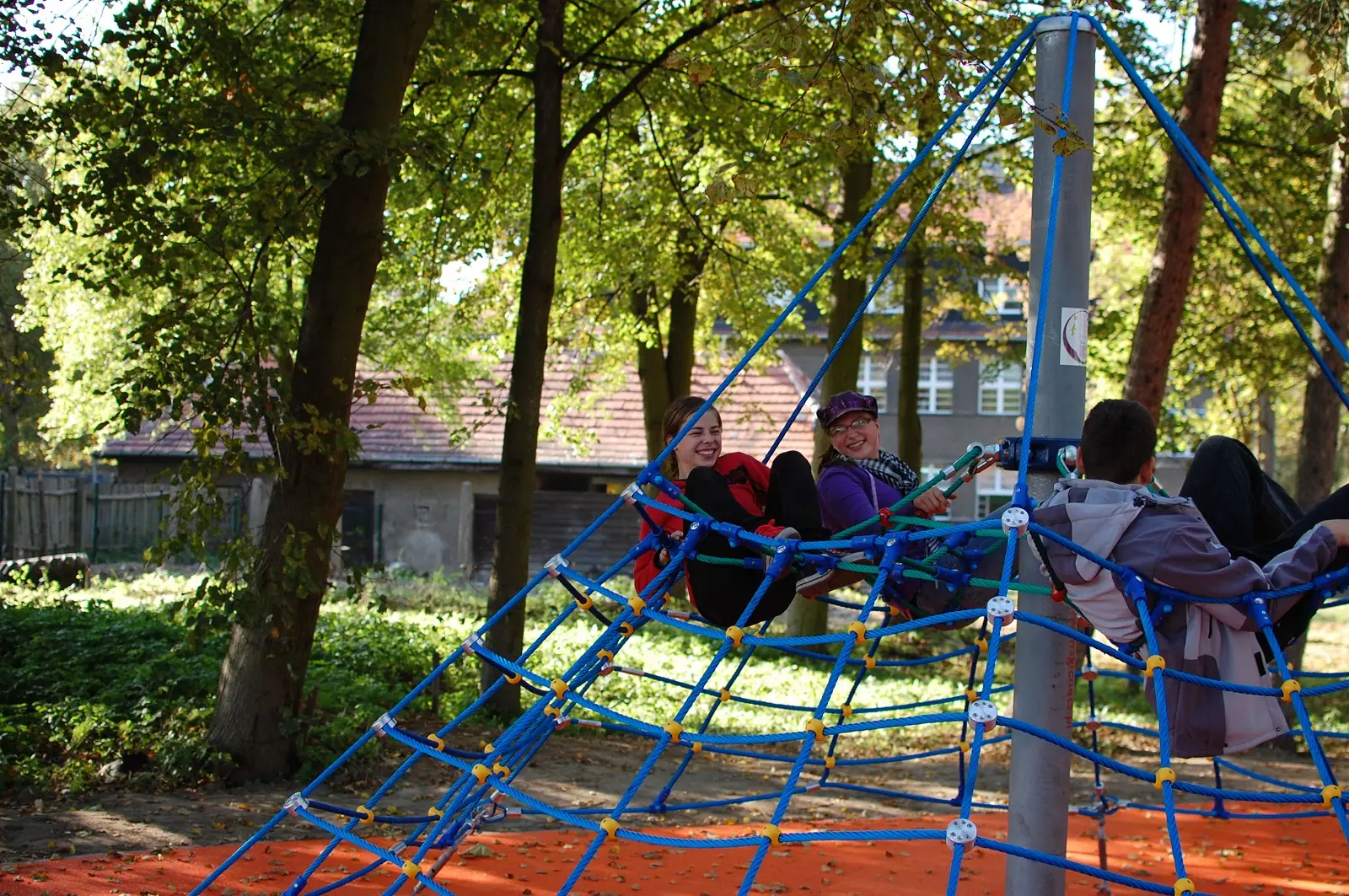

A single net platform at 1.8 m height

Sizing the installation

The safety area is a 9.0 m diameter circle, 64 square metres. That figure is worth carrying into the cost plan early, because on a neighbourhood playground the surfacing under a pyramid is frequently the item that pushes a scheme over budget. Foundations are cast at 0.8 m depth, and the 168.3 mm mast section reflects the higher cable tensions a single-platform layout produces.

Materials

Hot-dip galvanised steel mast, 168.3 mm diameter. Braided polyamide net reinforced with galvanised steel cables, 18 mm diameter. Plastic and aluminium connectors; stainless steel and painted steel fixings.

Technical specification

Reference (SKU)	LIF-PHOBOS-202
Overall dimensions	6.0 x 6.0 x 3.0 m (L x W x H)
Minimum safety area	9.0 m diameter circle (64 m²)
Age range	5 to 14 years
Free height of fall	1.8 m
Foundation depth	0.8 m
Frame	Hot-dip galvanised steel mast, 168.3 mm diameter
Finish	Hot-dip galvanised; 18 mm steel-reinforced polyamide net
Standard	EN 1176-1
Price	On request – project quotation within 24 business hours

Frequently asked questions

Why is the fall height 1.8 m when the mast is 3 m?

Because the platform sits at 1.8 m and that is the highest point from which a user can fall clear. Fall height follows the accessible standing surfaces, not the top of the mast, which is why pyramids of very different heights can share a surfacing specification.

Why does it start at five rather than three?

The single high platform puts the useful part of the structure out of reach for most three-year-olds, and the 1.8 m fall height is above what suits that age. HATI, NIX or MIMAS are the units to consider for younger children.

How does PHOBOS differ from PHOBOS XL?

PHOBOS XL uses the same 168.3 mm mast but stands 4 m, spreads to a 7.5 x 7.5 m base and lifts its single platform to 2.5 m, with a correspondingly larger 10.5 m safety circle.

Send us your plot dimensions and age profile and we will confirm which pyramid suits. Browse the rope climbing pyramids range or request a quote.

This model within its range

Footprint: 36.00 m², for a range from 16.00 to 278.89 m².

Comparison based on 16 comparable references.

More compact model: DIA 4.5 m rope climbing pyramid with twin entries
Larger model: PHOBOS XL 4 m rope climbing pyramid

Rope care

Rinse ropes with clean water; solvents damage the fibres. Check wear at friction points and the condition of connectors and splices twice a year. A visible steel core means the element must be replaced.

Fiche produit originale rédigée et publiée par Light In Fitness (Tours), mise à jour le 16/10/2026 — source : https://lightinfitness.com/en/product/phobos-3m-rope-climbing-pyramid/. Textes et photos protégés ; reproduction sans autorisation interdite.

Additional information

Dimensions	600 × 600 × 300 cm
Brand	Light In Fitness

Delivery and installation

Dimensions 600 × 600 × 300 cm: shipping is quoted according to quantity and delivery address. Access requirements (loading dock, tail lift, door widths) and the delivery appointment are agreed before dispatch.

This equipment is fixed to the ground (anchoring or grouting depending on the surface); installation can be quoted with delivery or done by your team.
