DEIMOS XL 5 m Rope Climbing Pyramid

Name: DEIMOS XL 5 m rope climbing pyramid
Brand: Light In Fitness
SKU: LIF-DEIMOSXL-203

DEIMOS XL 5 m rope climbing pyramid

DEIMOS XL 5 m rope climbing pyramid : rope climbing pyramids for playgrounds, marque Light In Fitness, tarif sur devis. Encombrement 860 × 860 × 500 cm. Brand : Light In Fitness. Delivery and installation priced on quotation across Europe.

Price on request

Shipping quoted separately The shipping cost is confirmed before you approve the order.

Five-metre climbing pyramid with six bearing cables and two horizontal play levels, on an 8.6 x 8.6 m base.

Price on request – project quotation within 24 business hours.

This item is supplied on quotation: configuration, delivery and installation are priced against your project.

Request a quotation +33 6 20 72 66 96

Answer within 24 working hours, quote reference LIF-DEIMOSXL-203. Layout study, delivery, installation and after sales.

Conformity: equipment designed to EN 1176 (playground equipment); the Light In Fitness declaration of conformity for this reference is supplied on request with the quotation.

Warranty: specified in the quotation for each reference — details of our warranties.

Light In Fitness: B2B manufacturer and distributor of professional sports equipment since 2013, with more than 2,500 customers equipped (gyms, CrossFit boxes, local authorities, hotels, care homes, military bases). New equipment only. Light In Fitness range: designed in Tours, France, manufactured in Europe.

Description

In brief — DEIMOS XL 5 m rope climbing pyramid: dimensions 860 × 860 × 500 cm, free fall height 1,6 m, age range 5 to 14 years, standards EN 1176-1, price on quotation.

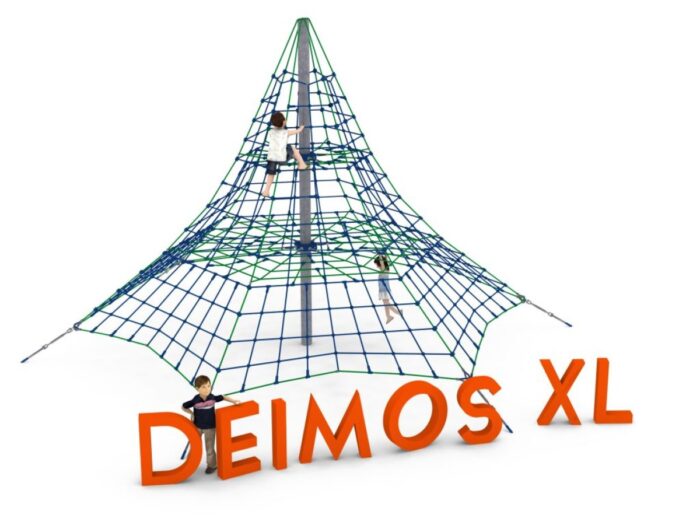

DEIMOS XL sits at the point where a pyramid stops being a piece of playground equipment and starts being the reason people come to the park. A 5 m mast, six tensioned net walls and two horizontal play levels give a complete climbing experience on an 8.6 x 8.6 m base, with the free height of fall held to 1.6 m.

Configuration

Central hot-dip galvanised steel mast, 168.3 mm diameter, 5 m high
Six main bearing cables anchored into reinforced concrete footings
Six tensioned net walls between the bearing cables
Two horizontal play levels within the net volume

Finish for demanding environments

The mast carries a chloroprene paint finish over the hot-dip galvanising. That combination is specified where the equipment faces heavy traffic pollution, industrial atmospheres or persistent damp, and it means the visible finish can be refreshed in situ without the galvanised protection underneath ever being compromised. Cable-to-mast connections are stainless steel and cast steel.

Materials

Braided polyamide cables reinforced with galvanised steel, 18 mm diameter. Plastic and aluminium connectors. Foundations at 0.8 m depth.

Technical specification

Reference (SKU)	LIF-DEIMOSXL-203
Overall dimensions	8.6 x 8.6 x 5.0 m (L x W x H)
Minimum safety area	11 m diameter circle (95 m²)
Age range	5 to 14 years
Free height of fall	1.6 m
Foundation depth	0.8 m
Frame	Hot-dip galvanised steel mast, 168.3 mm diameter
Finish	Chloroprene paint over galvanising; 18 mm steel-reinforced polyamide cable
Standard	EN 1176-1
Price	On request – project quotation within 24 business hours

Frequently asked questions

What is the advantage of a painted finish over bare galvanising?

Appearance and an extra barrier layer. Bare galvanising weathers to a matt grey that some schemes accept and others do not; a chloroprene coating over the galvanising gives a controlled colour and can be refreshed without touching the underlying protection.

How much impact surfacing does DEIMOS XL need?

95 square metres, the full 11 m diameter circle, specified for a 1.6 m fall height. That is a lower fall height than the 4 m PHOBOS XL requires despite the greater mast height, because the play levels sit lower within the net.

Where does it sit in the range?

Between the 4.5 m units and the 6 m TITAN. If your site can take an 11 m circle but not the 11 m circle plus the heavier foundations of TITAN, DEIMOS XL is the natural step.

Send us the clear diameter and the exposure conditions on site and we will confirm the finish specification. Browse the rope climbing pyramids range or request a quote.

Positioning this reference

Footprint: 73.96 m², for a range from 16.00 to 278.89 m².

Comparison based on 16 comparable references.

More compact model: SINOPE 4.5 m rope climbing pyramid
Larger model: TITAN 6 m rope climbing pyramid

Rope care

Rinse ropes with clean water; solvents damage the fibres. Check wear at friction points and the condition of connectors and splices twice a year. A visible steel core means the element must be replaced.

Fiche produit originale rédigée et publiée par Light In Fitness (Tours), mise à jour le 12/09/2026 — source : https://lightinfitness.com/en/product/deimos-xl-5m-rope-climbing-pyramid/. Textes et photos protégés ; reproduction sans autorisation interdite.

Additional information

Dimensions	860 × 860 × 500 cm
Brand	Light In Fitness

Delivery and installation

Dimensions 860 × 860 × 500 cm: shipping is quoted according to quantity and delivery address. Access requirements (loading dock, tail lift, door widths) and the delivery appointment are agreed before dispatch.

This equipment is fixed to the ground (anchoring or grouting depending on the surface); installation can be quoted with delivery or done by your team.
