HYPERION 4 m rope climbing pyramid
HYPERION 4 m rope climbing pyramid : rope climbing pyramids for playgrounds, marque Light In Fitness, tarif sur devis. HYPERION – Pyramide de jeu en corde 4 mLa pyramide HYPERION est une structure de jeu en corde accessible conçue pour accueillir les jeunes enfants dès 3 ans. Delivery and installation priced on quotation across Europe.
Price on request
Four-metre climbing pyramid with two net levels and a 1.0 m free height of fall, approved from three years.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-HYPERION-210. Layout study, delivery, installation and after sales.
Description

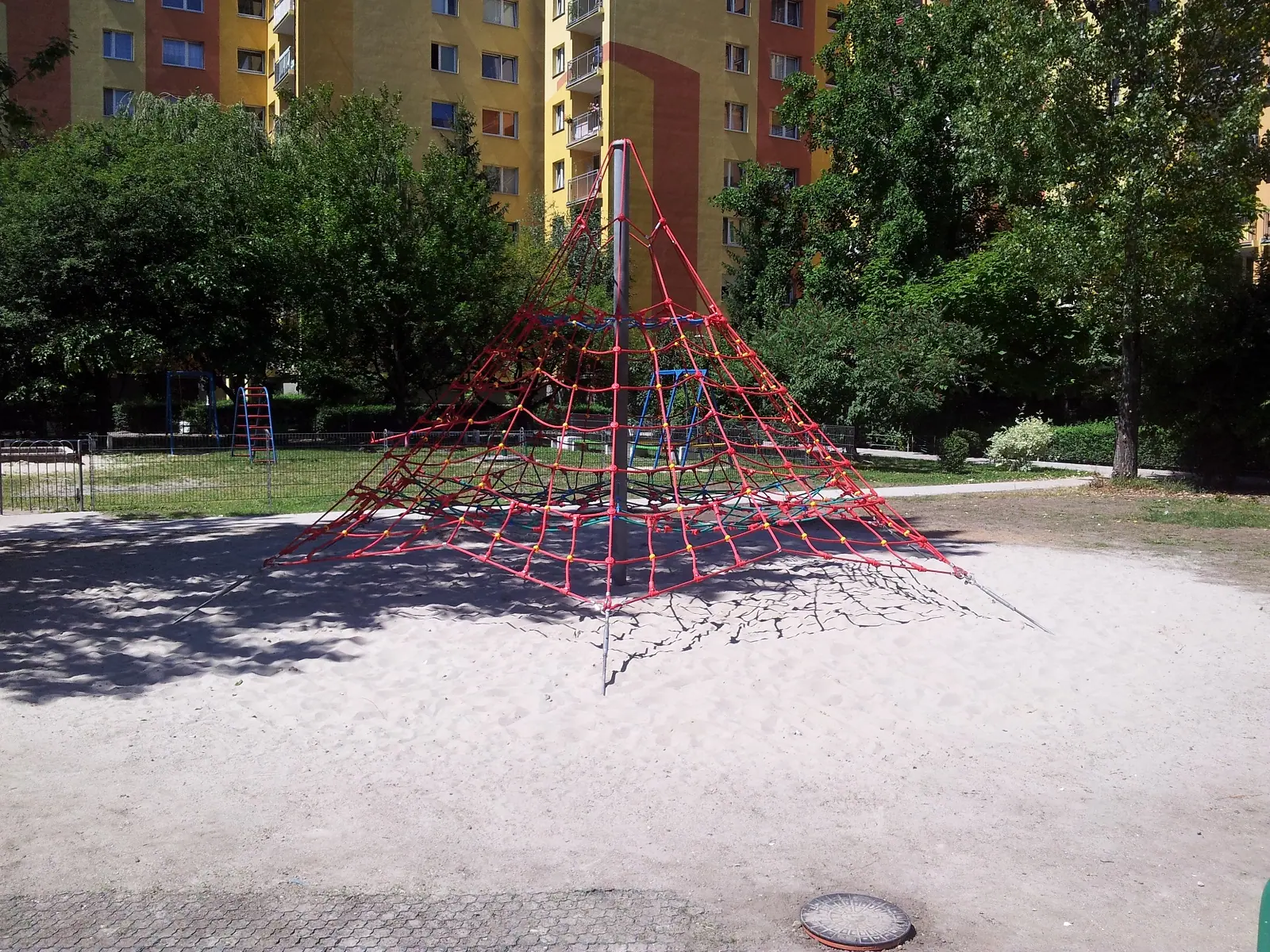

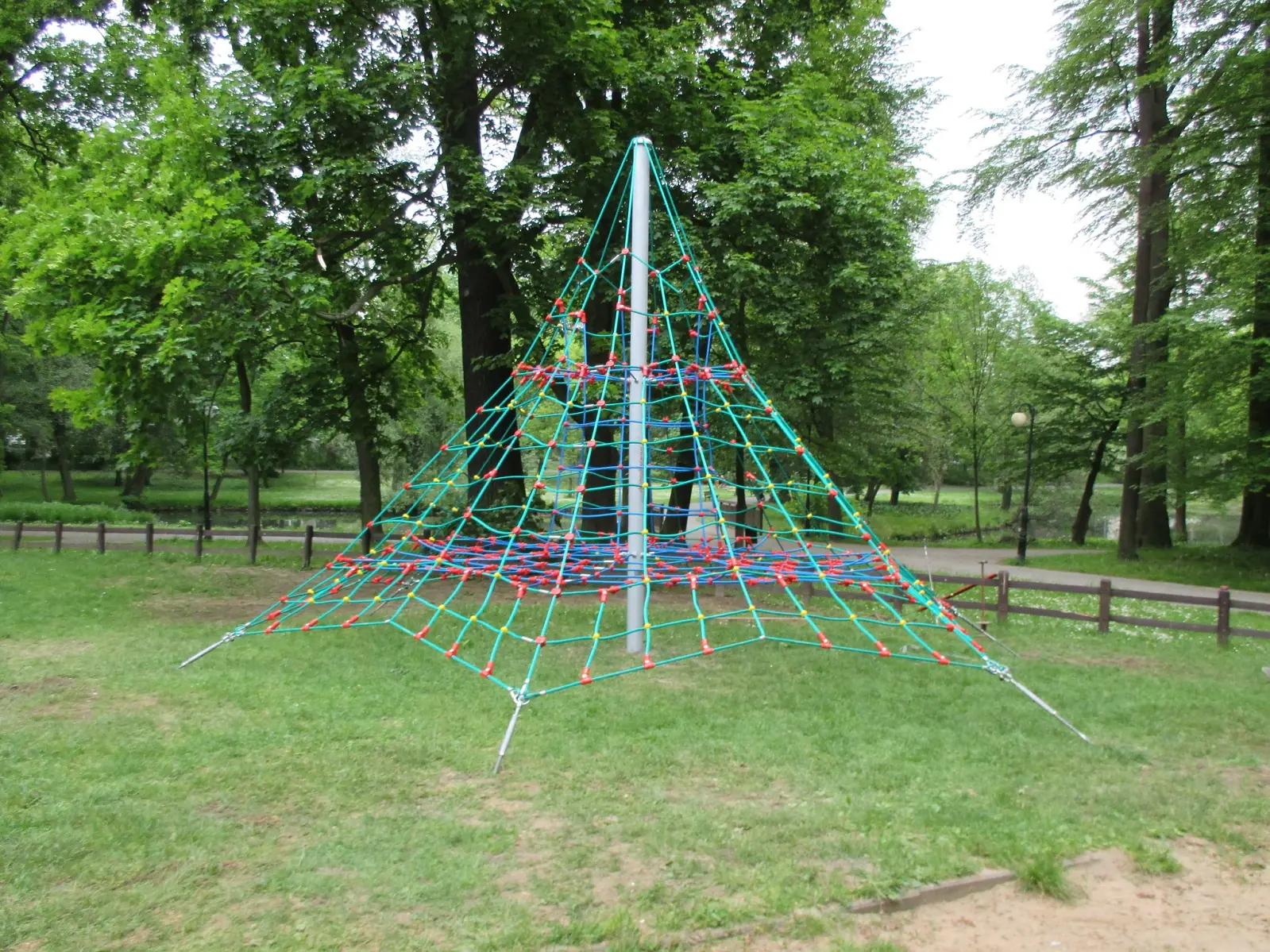

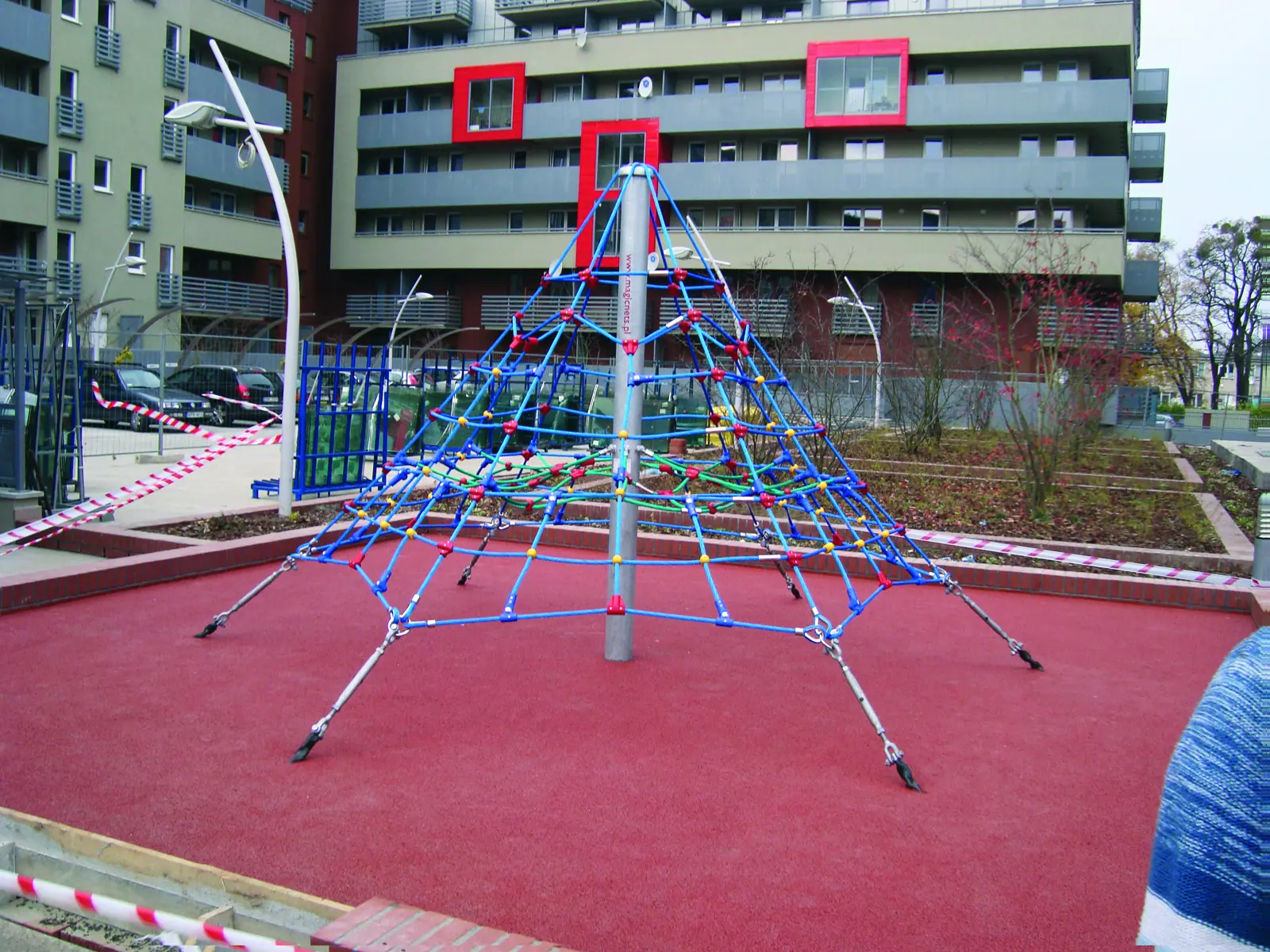

HYPERION is the pyramid to specify when a committee wants the visual presence of a 4 m structure and the reassurance of a 1.0 m free height of fall. Two horizontal net levels at 1.0 m and 2.5 m break the climb into stages, and the approval runs from three years.
Progressive stages

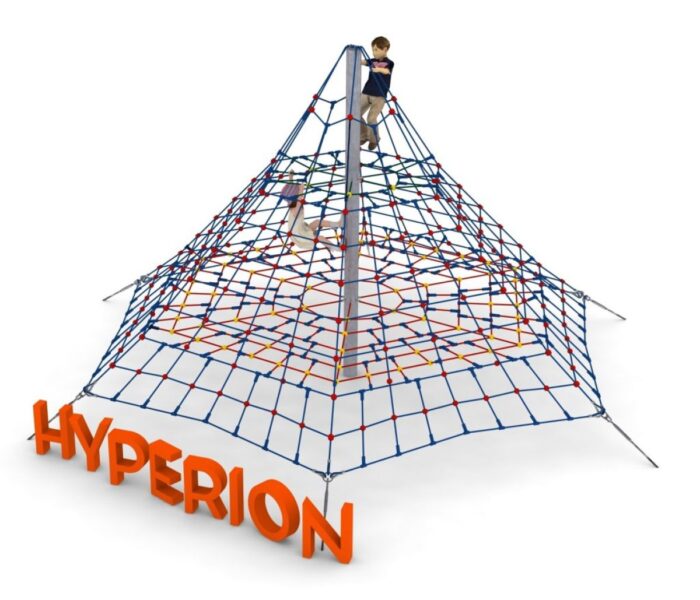

- Central hot-dip galvanised steel mast, 139.7 mm diameter, 4 m high
- Six main bearing cables anchored to the ground
- Six net panels between the bearing cables
- Two horizontal net levels at 1.0 m and 2.5 m
- Hot-dip galvanised anchor plates and bolts
Staged nets change how children use a pyramid. Rather than one continuous ascent, they get an achievable first target, a place to rest, and a second objective. That structure is what allows a wide age band to share the same equipment without the youngest being pushed out.
Materials
Hot-dip galvanised steel mast, 139.7 mm diameter. Cables in polypropylene reinforced with galvanised steel strands, 16 mm diameter. Plastic, aluminium and stainless steel connectors. Foundations at 0.7 m depth.
Technical specification
| Reference (SKU) | LIF-HYPERION-210 |
|---|---|
| Overall dimensions | 8.0 x 8.0 x 4.0 m (L x W x H) |
| Minimum safety area | 9.6 m diameter circle |
| Age range | 3 to 14 years |
| Free height of fall | 1.0 m |
| Foundation depth | 0.7 m |
| Frame | Hot-dip galvanised steel mast, 139.7 mm diameter |
| Finish | Hot-dip galvanised; 16 mm steel-reinforced polypropylene cable |
| Standard | EN 1176-1 |
| Price | On request – project quotation within 24 business hours |
Foundations and buried services
Six ground anchors and one central foundation are cast at 0.7 m depth. Confirm the position of drainage, irrigation and lighting cables before setting out, because relocating a single anchor changes the geometry of the whole net and is not something that can be improvised on site.
Frequently asked questions
How can a 4 m pyramid keep a 1.0 m fall height?
Free height of fall is measured from the highest accessible standing or sitting surface, and it is limited by the surrounding net, which catches a user rather than letting them fall clear. With net levels at 1.0 and 2.5 m enclosed by the six net panels, the figure stays at 1.0 m.
Does that reduce the surfacing cost?
Substantially. Surfacing is specified against the 1.0 m fall height across the 9.6 m circle, a much shallower build-up than a 2.5 m fall height over the same area would demand.
Is HYPERION a good choice for a mixed-age park?
It is one of the strongest in the range for that brief, because the staged levels and the low fall height suit three-year-olds while the 4 m silhouette and the upper net keep older children interested.
Send us the clear diameter available and we will confirm the fit. Browse the rope climbing pyramids range or request a quote.
