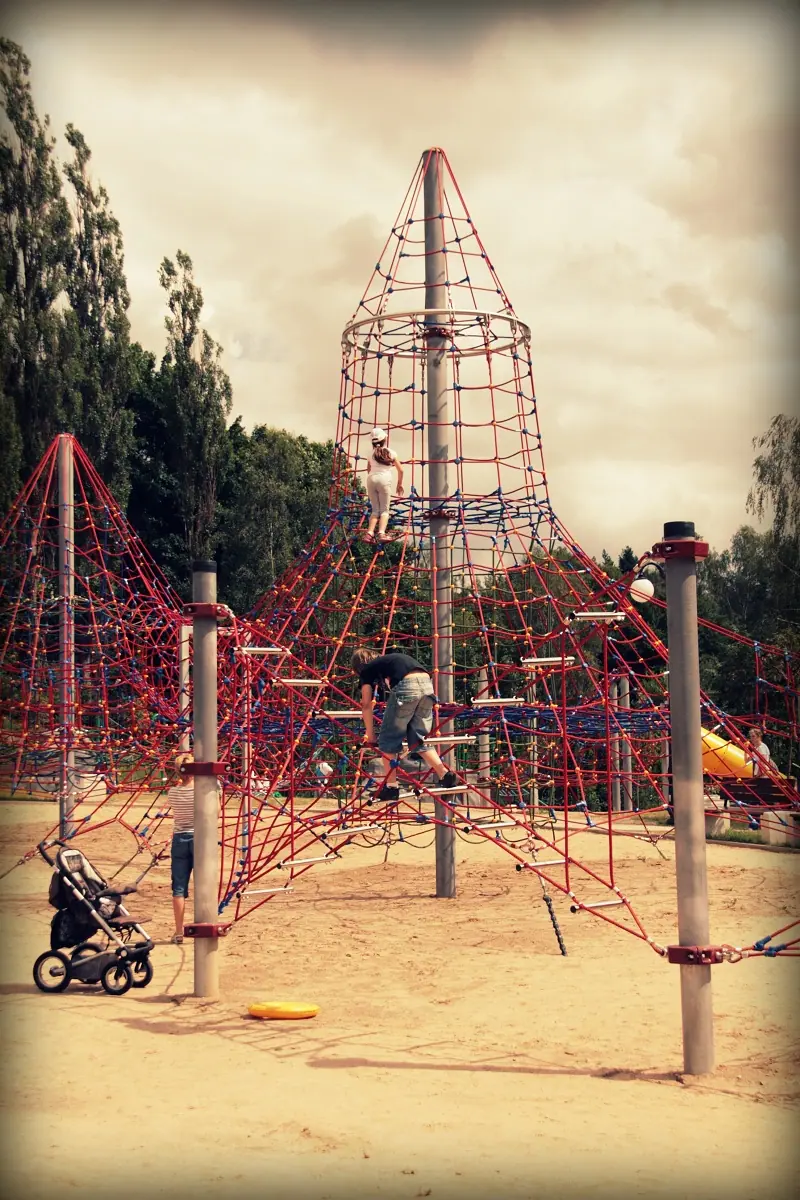

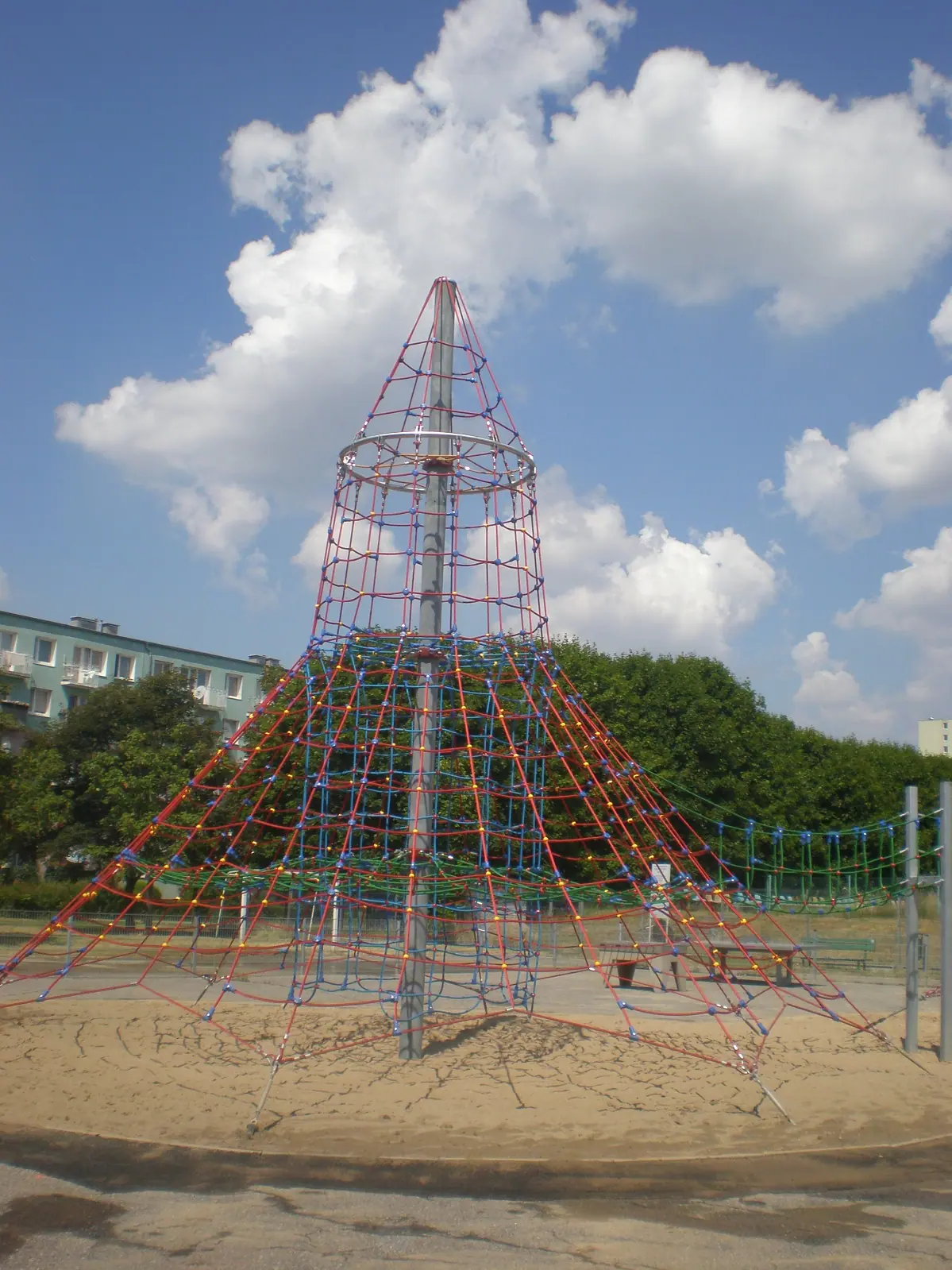

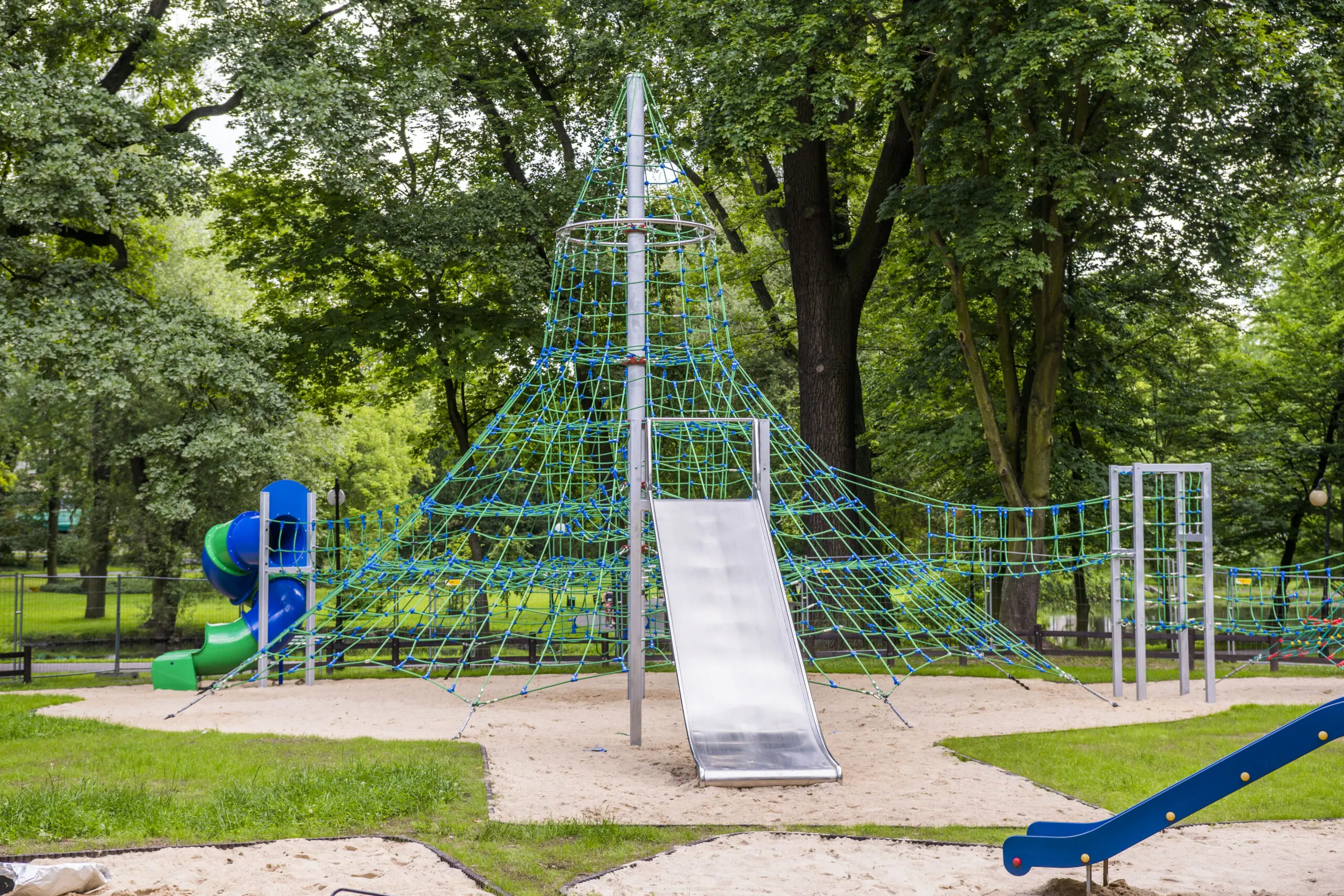

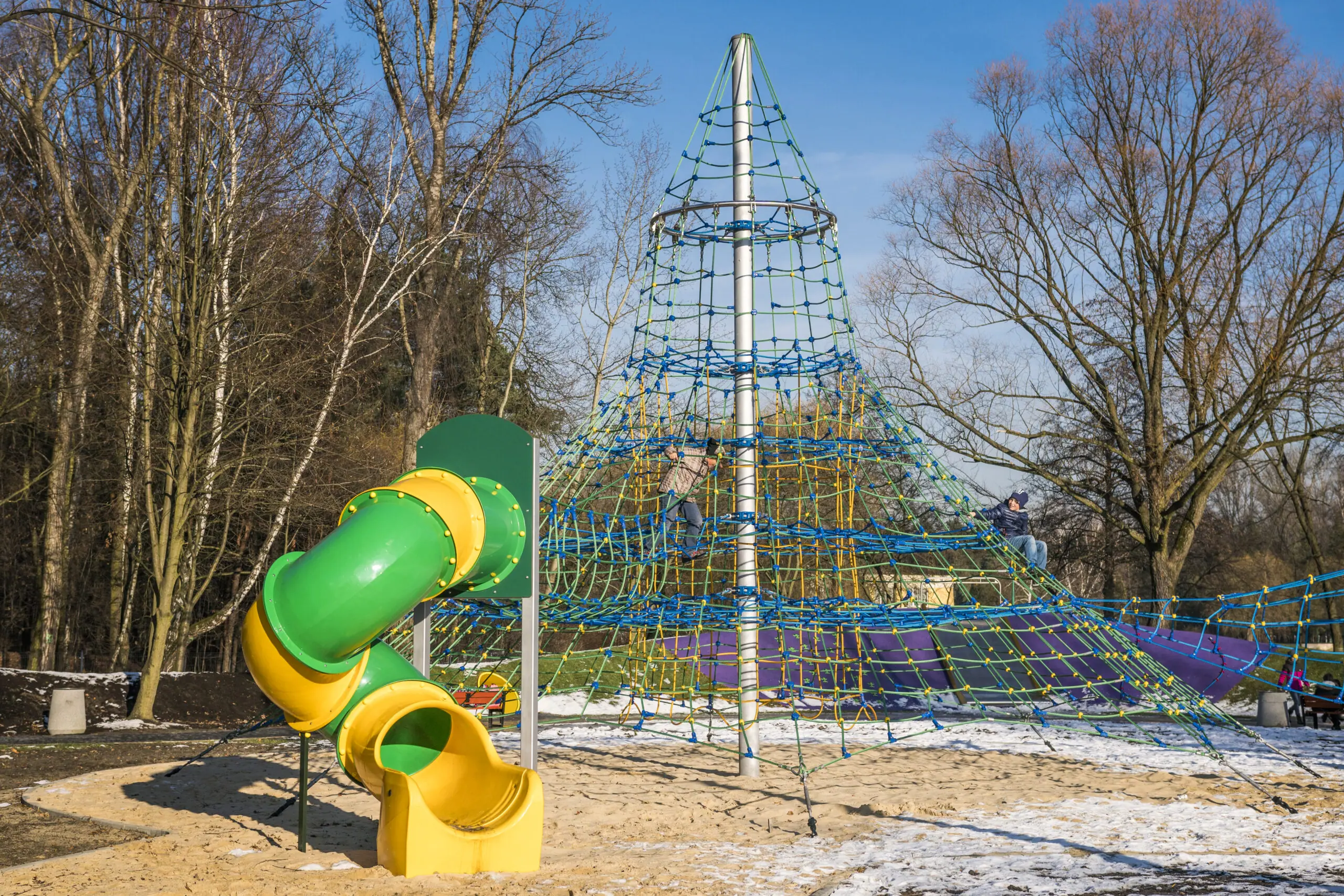

TRITON 8 m rope climbing pyramid with central well
TRITON 8 m rope climbing pyramid with central well : rope climbing pyramids for playgrounds, marque Light In Fitness, tarif sur devis. TRITON – Pyramide de jeu en corde 8 mLa pyramide TRITON conjugue hauteur et richesse de parcours grâce à son puits filaire central qui vient compléter la structure pyramidale classique. Delivery and installation priced on quotation across Europe.
Price on request
Eight-metre climbing pyramid with five net platforms and a 2.4 m diameter central rope well giving a second climbing route.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-TRITON-208. Layout study, delivery, installation and after sales.
Description

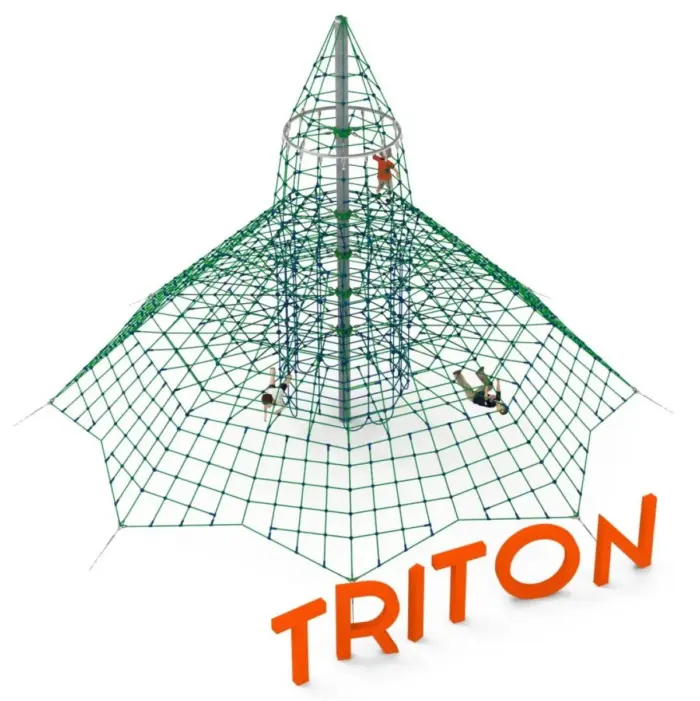

TRITON adds something the other pyramids do not have: a central rope well, 2.4 m in diameter, formed by sixteen vertical cables and five reinforcing rings running up the inside of the structure. Children can climb the outer net, cross a platform and continue up the well, or drop back into it from above. Five platform levels at 2.0, 2.8, 3.6, 4.4 and 6.0 m give the routes somewhere to start and finish.
Route variety on one structure
- Central hot-dip galvanised steel mast, 219.1 mm diameter, 8 m high
- Eight main bearing cables anchored into reinforced concrete foundations
- Eight net walls between the bearing cables
- Horizontal rope platforms at 2.0, 2.8, 3.6, 4.4 and 6.0 m
- A central rope well 2.4 m in diameter with sixteen vertical cables and five reinforcing rings
Route variety is what keeps older children returning. A pyramid with a single ascent pattern is solved in one visit; a structure with an interior route and five levels takes considerably longer to exhaust.
Materials
Hot-dip galvanised steel mast, 219.1 mm diameter. Braided polyamide cables reinforced with galvanised steel strands, 18 mm diameter. Connecting elements in plastic, aluminium and stainless steel, selected for weather resistance and intensive use. Foundations at 1.0 m depth.
Technical specification
| Reference (SKU) | LIF-TRITON-208 |
|---|---|
| Overall dimensions | 12.5 x 12.5 x 8.0 m (L x W x H) |
| Minimum safety area | 14.5 m diameter circle |
| Age range | 5 to 14 years |
| Free height of fall | 2.0 m |
| Foundation depth | 1.0 m |
| Frame | Hot-dip galvanised steel mast, 219.1 mm diameter, eight bearing cables |
| Finish | Hot-dip galvanised; 18 mm steel-reinforced polyamide cable |
| Standard | EN 1176-1, certificate of conformity issued by an independent body |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
What does the central well add for older children?
A second, more technical route. Climbing inside a 2.4 m diameter cage of vertical cables demands different body positioning from the outer net faces, which extends the useful age range at the top end.
Is the top platform at 6.0 m accessible to all users?
It is reachable by children who have worked up through the lower levels, which is the intended progression. The free height of fall remains 2.0 m throughout, so the surfacing specification does not change with the upper platform.
What surfacing standard applies?
The equipment is certified to EN 1176-1. The impact-attenuating surface beneath it is a separate specification, tested to EN 1177 for the stated free height of fall, and must cover the full 14.5 m circle.
Send us the clear diameter and your surfacing preference and we will price equipment and groundworks together. Browse the rope climbing pyramids range or request a quote.
