CALYPSO 3 m rope climbing pyramid with adjustable tension
CALYPSO 3 m rope climbing pyramid with adjustable tension : rope climbing pyramids for playgrounds, marque Light In Fitness, tarif sur devis. CALYPSO – Pyramide de jeu en corde 3 mLa pyramide CALYPSO propose deux niveaux de jeu en filet dans un format compact de 3 mètres. Delivery and installation priced on quotation across Europe.
Price on request
Two-level 3 m climbing pyramid whose turnbuckle anchors let the cable tension be reset in minutes during routine maintenance.
Price on request – project quotation within 24 business hours.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-CALYPSO-206. Layout study, delivery, installation and after sales.
Description

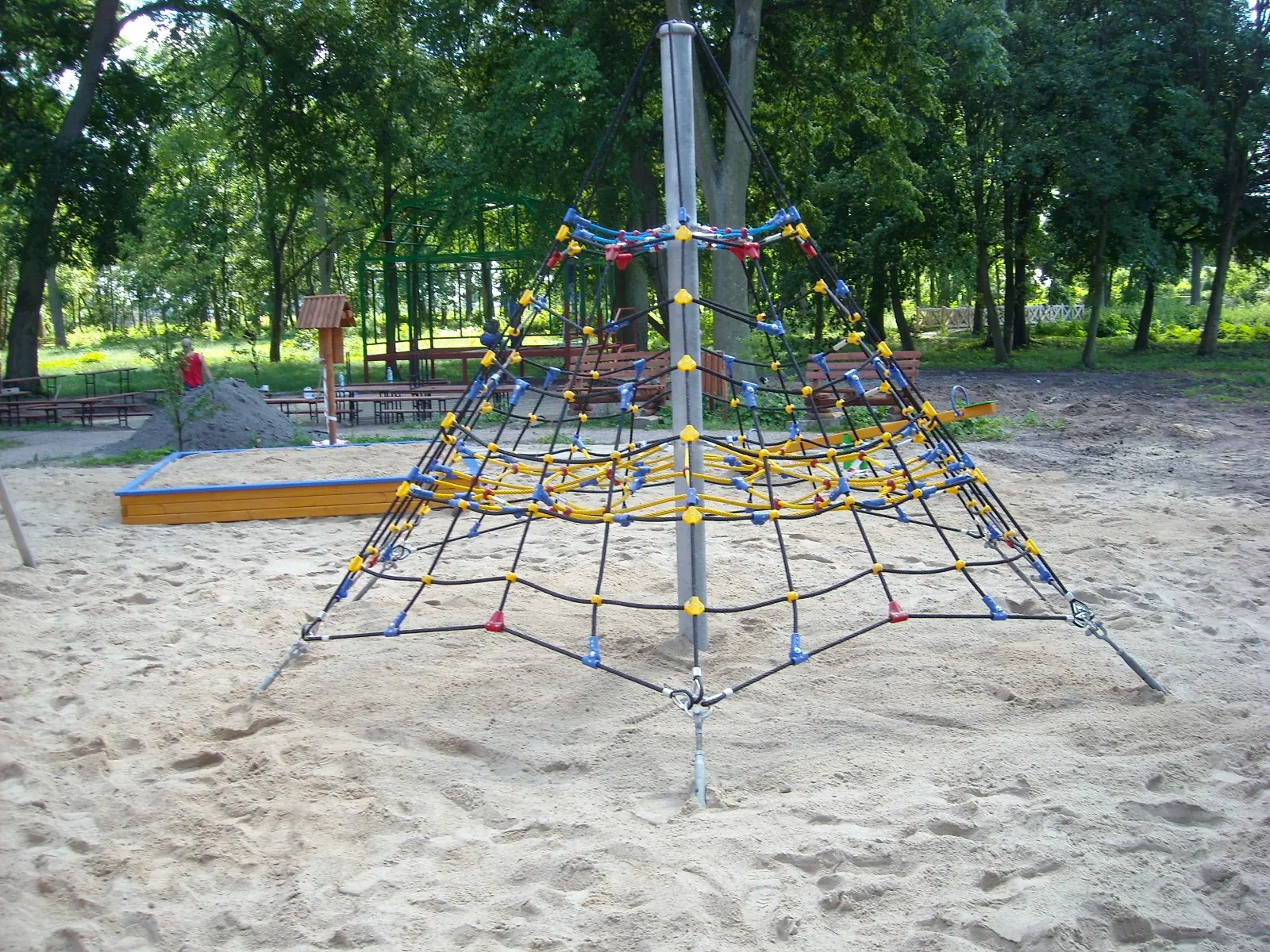

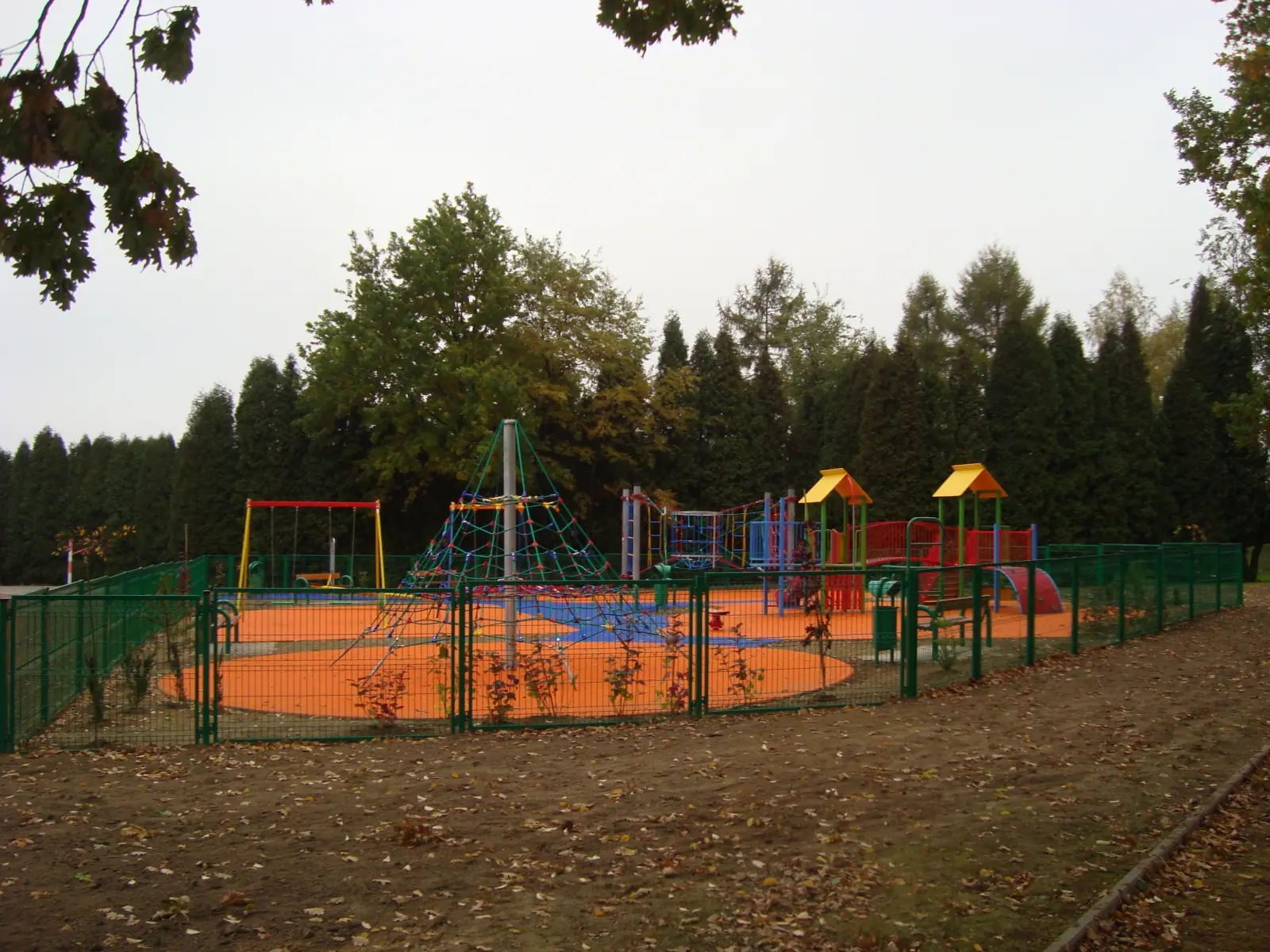

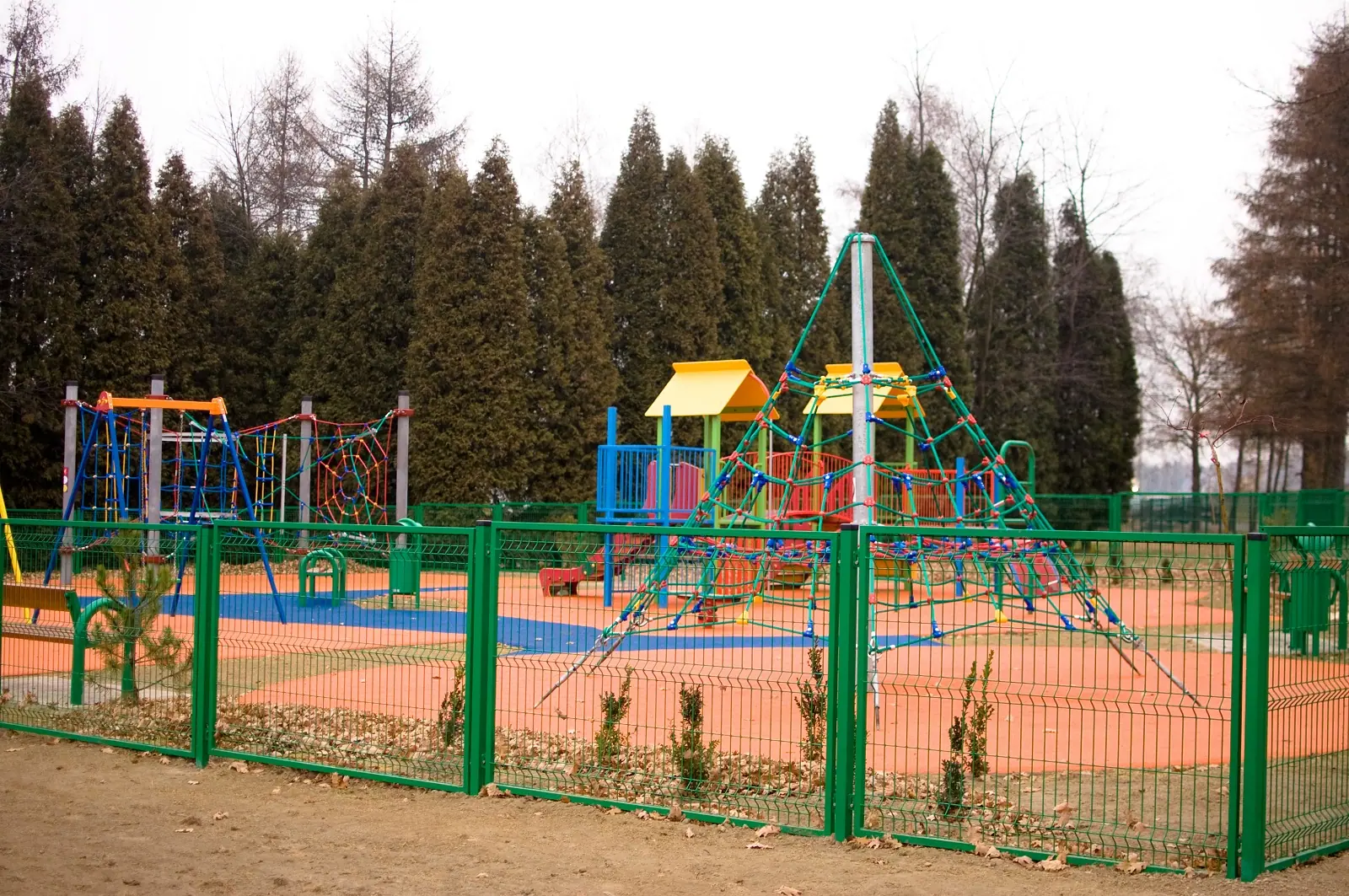

CALYPSO offers two levels of net play on a compact 5.0 x 5.0 m base, but its distinguishing feature is maintenance related: the six main cables are anchored through adjustable tensioning nuts, so the net can be brought back to full tension without dismantling anything.
Why adjustable tension matters
Every tensioned rope structure relaxes slightly over its first seasons as the ropes bed in and the ground settles. On systems with fixed anchors that slack is difficult to correct and the net begins to sag, which changes the fall geometry and shortens rope life through abrasion at the connectors. Turnbuckle anchors turn that from a repair into a routine adjustment recorded at the annual main inspection.
Configuration
- Central hot-dip galvanised steel mast, 3 m high
- Six main bearing cables anchored to the ground through adjustable tensioning nuts
- Six net walls linking adjacent cables
- Two horizontal net platforms at 1.0 m and 2.0 m
Materials
Hot-dip galvanised steel mast. Net in polypropylene rope reinforced with galvanised steel cables, 16 mm diameter. Plastic, aluminium and stainless steel connectors. Foundations at 0.7 m depth.
Technical specification
| Reference (SKU) | LIF-CALYPSO-206 |
|---|---|
| Overall dimensions | 5.0 x 5.0 x 3.0 m (L x W x H) |
| Minimum safety area | Circle of 4.0 m radius |
| Age range | 3 to 14 years |
| Free height of fall | 1.0 m |
| Foundation depth | 0.7 m |
| Frame | Hot-dip galvanised steel central mast |
| Finish | Hot-dip galvanised; 16 mm steel-reinforced polypropylene net |
| Standard | EN 1176-1 |
| Price | On request – project quotation within 24 business hours |
What is supplied
Delivery includes the certificate of conformity, the technical data sheet, the installation and maintenance manual with the tensioning figures, and a site layout drawing showing the 4.0 m radius safety circle. Keep the tensioning figures with the inspection log, as they are the reference for every future adjustment.
Frequently asked questions
How often does the tension need checking?
Include it in the periodic operational inspection and again at the annual main inspection. Expect most of the adjustment to be needed in the first two years, after which the system stabilises.
Can our own grounds team make the adjustment?
The tensioning nuts are accessible at ground level and need no special equipment, but the adjustment should be made against the manufacturer figures supplied with the technical file and recorded in the inspection log.
Why two platforms rather than one?
Two levels at 1.0 m and 2.0 m give younger children an achievable first stage and older ones somewhere to progress to, which is what allows the 3 to 14 age approval on a structure this compact.
Ask us for the technical file and the maintenance schedule alongside your quotation. Browse the rope climbing pyramids range or request a quote.
