TRAINER SW03B Double Parallel Bars - Outdoor Street Workout

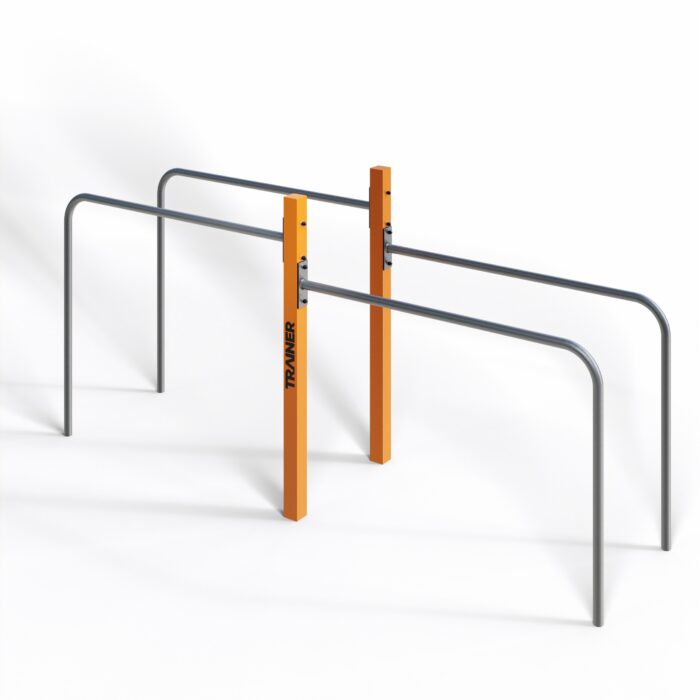

The TRAINER SW03B is an outdoor double parallel bars module with two bar heights on one 312.4 cm structure. It stands 150.6 cm high, weighs 80 kg and requires a safety zone of 480 x 710 cm. Certified to EN 16630:2015-06 by TUV Rheinland, it is supplied by Light In Fitness at 1,620 EUR excluding VAT.

Two heights, two ability levels

A single pair of parallel bars serves whoever the height happens to suit. Setting two pairs at different heights on the same frame changes that: the lower pair allows assisted dips with the feet on the ground, L-sits with a short drop and support holds for beginners, while the higher pair gives full dips, swings and the elevated positions that experienced calisthenics athletes want. One module, and nobody is excluded by their strength level.

• Dips, straight-arm support holds, L-sits and core work
• Body-weight transfer and travelling between bars
• Two bar heights on a single structure
• Difficulty rated medium, minimum user height 140 cm

The most productive module in a street workout rig

If a site can only fit two modules, parallel bars should be one of them. The dip is the highest-value pushing movement available without equipment loading, it trains the chest, triceps, anterior shoulder and the whole abdominal girdle, and the same bars serve for progressions from a beginner’s support hold to advanced static holds. Nothing else in the range covers as much of the training spectrum from one structure.

Construction

Tubular high-grade steel, shot-blasted and hot-dip galvanised, then finished with two layers of weather and UV-resistant polyester powder coating. The module is ground-anchored, which is required given the swinging and dynamic loads applied to parallel bars. Standard colours are yellow (RAL 1018/7004), graphite (RAL 7016/9006), orange (RAL 2000/9006) and lime (RAL 6018/9006), with other RAL references on request.

Specification

Frequently asked questions

Why is the safety zone 710 cm deep?

Because users travel along the bars and dismount off the end. EN 16630 sizes the zone from the movement envelope, and a 312 cm bar with travelling use generates a considerably longer envelope than its own length. Plan the surrounding layout from the zone figure, not the module footprint.

Can it be combined with pull-up modules?

Yes, that is the intended use. The TRAINER street workout system is modular, so parallel bars, pull-up bars, traverse bars and wall bars share connection points and can be assembled into a rig and extended in later phases.

Are the bars suitable for wheelchair transfers or assisted walking?

No. These are calisthenics bars, dimensioned and certified for body-weight training, not parallel walking bars for rehabilitation. For accessible outdoor equipment, specify from the wheelchair-accessible range instead.

Light In Fitness designs, supplies and installs street workout and calisthenics areas for councils, schools, city stadiums and residential developments, including foundations, safety surfacing and signage. See the street workout rigs range or the outdoor sports flooring options. Send us your plan and we return a rig configuration and a firm price.
