TRAINER D01R+SI outdoor chest press, wheelchair accessible

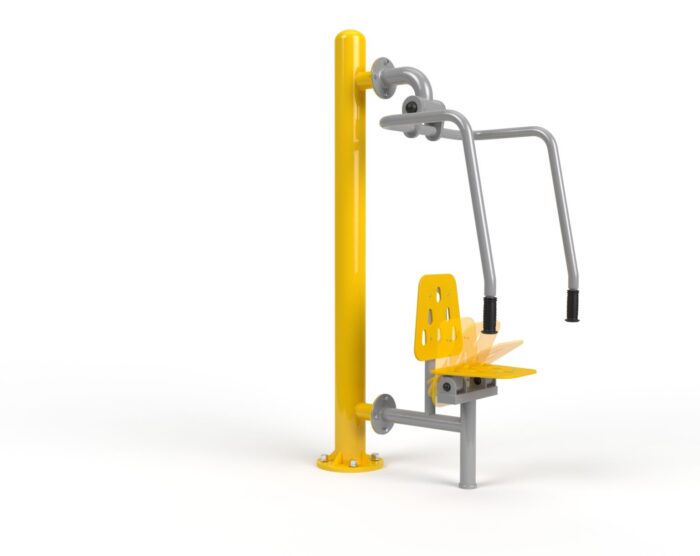

The TRAINER D01R+SI is an outdoor chest press station with a folding seat, so a wheelchair user can roll into the working position without transferring. The seat swings clear of the frame and the machine is then used directly from the chair; folded back down, it serves any standing visitor in the usual way. That dual configuration is the reason inclusive municipal fitness areas specify it: one station, one foundation, two user populations, and no separate equipment that visibly segregates disabled users.

Technical specification

How the folding seat works on site

Most so called accessible outdoor equipment is simply equipment a wheelchair user can reach. The D01R+SI goes further by removing the seat from the movement path, so the chair occupies the position a standing user would sit in and the handles fall at the correct height for a seated push. Nothing has to be unlocked with a key, and no attendant is required, which is what makes autonomous use possible.

• Horizontal press for chest, shoulders and arms
• Folding HDPE seat, deployed or stowed by the user
• Body weight resistance, no stack and no adjustment
• 150 kg maximum user weight, moderate difficulty
• Same colour range as the rest of the TRAINER line

Approach, surfacing and inspection

An accessible station only works if the approach does. Plan a firm, level and continuous surface from the path to the seat position, carried across the 404 x 370 cm safety area, with no kerb or lip at the transition. Where a park mixes gravel paths with a fitness zone, the surfacing transition is the single detail most often missed at design stage and the most expensive to correct afterwards.

The steel is shot blasted and hot dip galvanised before the two coat polyester finish, so protection sits under the paint. The folding mechanism is the moving part specific to this model: include its pivot and locking position in the routine operational inspection, alongside the anchors and fixings, and record the annual main inspection required of the operator.

Frequently asked questions

Can the station be used by standing visitors too?

Yes. With the seat deployed it is a conventional outdoor chest press for any visitor above the stated size. The inclusive design is additive, not a restriction, which is why it is specified for family fitness areas rather than for dedicated adapted zones.

Is the resistance adjustable?

No. Resistance comes from the user body weight through the lever geometry. Intensity is varied by tempo and repetitions, which is standard for unsupervised public equipment and removes any part that could be tampered with.

Which station pairs with it for a balanced circuit?

The D02R+SI lifter from the same inclusive family, which trains the pulling side of the upper body. Installed together they give a push and pull pair that is accessible from a wheelchair on both stations.
