Outdoor obstacle course for intensive conditioning
25 000,00 € HT
Permanent outdoor obstacle course built around walls, ropes, pull up bars and tyres for high intensity circuits of 30 to 45 minutes. Priced at 25 000 EUR excluding VAT.
Devis chiffré sous 24 h ouvrées. Aucun engagement. Nos garanties
Description

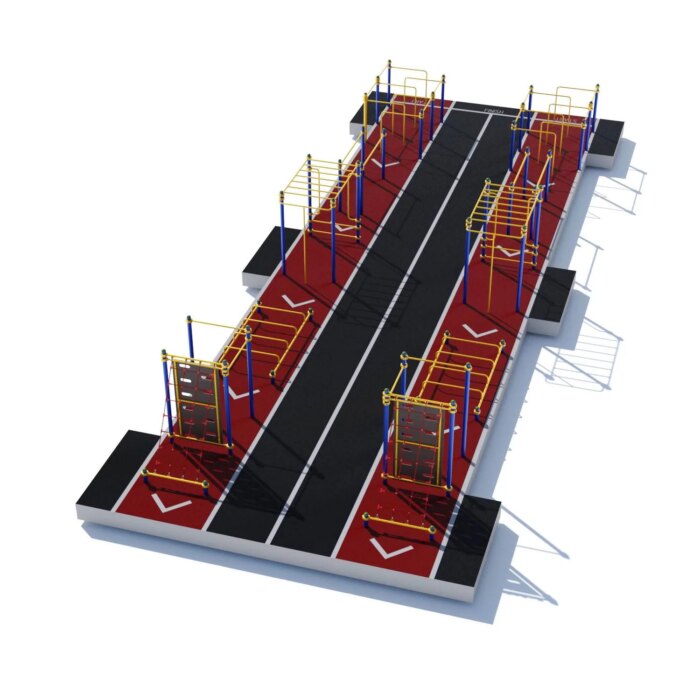

This obstacle course is a permanent outdoor training circuit built around walls, ropes, pull up bars and tyres, designed for high intensity sessions of 30 to 45 minutes. It comes from military physical preparation and has moved across into fitness centres, personal coaching and municipal sports areas, because a single circuit trains strength, power, speed and endurance while also working flexibility, coordination and agility. Movements are performed at pace with short recovery, which is what makes the format effective for group conditioning. It is priced at 25 000 EUR excluding VAT and suits armed forces sites, sports centres, holiday and leisure operators and local authorities.
Technical specification
| Type | Permanent outdoor obstacle course for physical conditioning |
|---|---|
| Obstacle families | Walls, climbing ropes, pull up bars, tyres and crossing modules |
| Session format | High intensity circuits of 30 to 45 minutes, performed at pace with short recovery |
| Physical qualities trained | Strength, power, speed, endurance, flexibility, coordination, agility |
| Movement pattern | Whole body work: pulling, pushing and lifting across balanced muscle groups |
| User profile | Adaptable to different fitness levels, from beginner circuits to military standard sessions |
| Overall dimensions and layout | Set by the number of obstacles and the plot, confirmed on the implantation drawing |
| Weight | Stated on the delivery schedule with the order |
| Environment | Designed for permanent outdoor exposure |
| Peripheral safety zone | At least 1.50 m around the equipment under EN 16630 |
| Surfacing | EN 1177 compliant impact attenuating surfacing, thickness sized to the critical fall height of the tallest obstacle |
| Anchoring | Base plates bolted into concrete foundation blocks, or fixed to an existing concrete slab |
| Applicable standards | EN 16630 for freely accessible outdoor fitness equipment, EN 1177 for the surfacing |
| Warranty | 2 to 5 years depending on the range, extensions available on steel structures |
| Price | 25 000 EUR excluding VAT |
Laying out the circuit, surfacing and anchoring
An obstacle course is designed as a sequence, so the site plan matters more than on a static rig. Set the running order so that a group can start at intervals without meeting head on, keep the walls and the rope climb away from the entry point where users are still cold, and allow a straight approach in front of any obstacle taken at speed. A clear peripheral zone of at least 1.50 m around each obstacle is required under EN 16630 on freely accessible sites, and remains the reference on closed military or corporate sites.
Surfacing is sized against the tallest obstacle. Impact attenuating surfacing compliant with EN 1177 goes under and around the wall, the rope and the pull up positions, with the thickness set by the critical fall height. Our 40 to 65 mm impact attenuating tiles laid bonded are the usual answer for the landing zones. Anchoring is by base plates into concrete foundation blocks or onto an existing slab, following the plan supplied with the order.
Groundworks, surfacing and installation are quoted with the project, because the circuit length and the number of obstacles are set with you. Send us the plot dimensions and the intended users, and the layout is drawn around both.
Frequently asked questions
Is it only for military or elite users?
No. The format originated in military training, but the intensity is set by the coach rather than by the equipment: the same obstacles can be run as a gentle circuit or as a timed test. That is why fitness centres, personal trainers and local authorities install them alongside armed forces sites.
How long does a session last?
Typically 30 to 45 minutes, structured as whole body movements at pace with limited recovery, which is what recruits several muscle groups at once and keeps the cardiovascular demand high throughout.
What does the circuit develop beyond fitness?
Confidence and discipline are part of the point. Completing an obstacle demands commitment, and repeated exposure to that decision transfers well to team building, to youth programmes and to any group where the objective is as much psychological as physical.
Light In Fitness has designed and supplied outdoor training circuits from Tours, France since 2013, with quotations returned within 24 working hours and delivery across France, Belgium, Switzerland and Luxembourg. Request a quotation for this obstacle course, or see our obstacle trail modules.
