IDA XL rope climbing module with spider web walls
Price on request
Compact climbing module with four horizontal ropes, a reinforced rubber mat path of 0.6 by 4.3 m and two spider web rope walls. Certified to EN 1176-1:2017.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-IDAXL-044. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

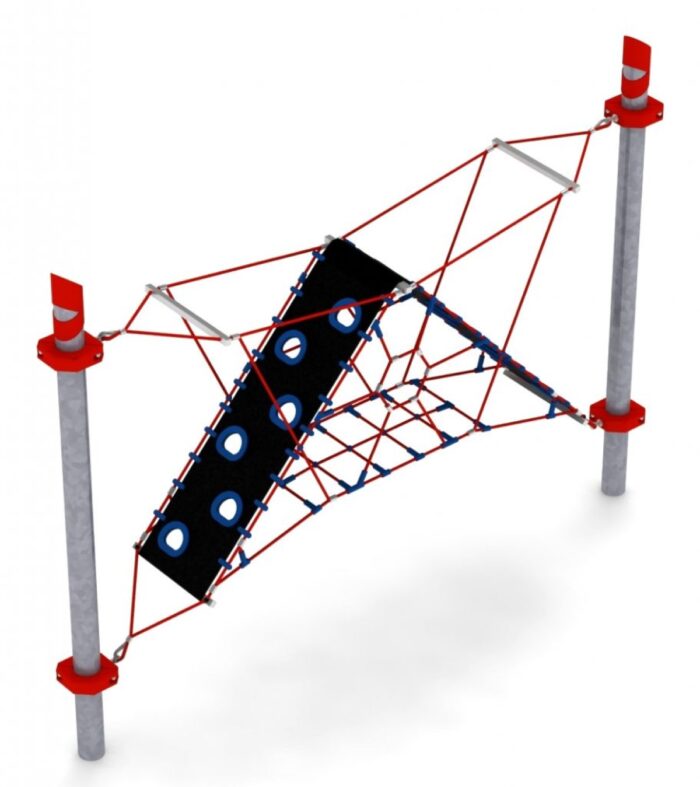

IDA XL combines four horizontal ropes tensioned between two posts 4.24 m apart, a reinforced rubber mat path with climbing openings and two vertical spider web walls. The result is a compact climbing module of 4.6 by 0.75 m that offers three different movements rather than one.
Steel spacers hold the four horizontal ropes apart, which keeps the geometry stable while a child crosses. The rubber mat path of 0.6 by 4.3 m is pierced with climbing openings and profiled to suggest a mountain, so it is climbed as well as walked. At each end, a vertical spider web wall gives a second way up, and a rope lattice platform provides a stopping point at height.
The posts are hot dip galvanised steel of 168.3 mm diameter. Ropes are braided and bonded polyamide of 18 mm diameter with a six strand galvanised steel wire core. The articulated connections are stainless steel, with aluminium and plastic link elements, and the module stands on reinforced concrete pad foundations.
Technical specification
| Configuration | Four horizontal ropes between two posts, 4.24 m spacing, steel spacers |
| Mat path | Reinforced rubber, 0.6 x 4.3 m, with climbing openings |
| Vertical walls | Two spider web rope walls |
| Platform | Rope lattice |
| Overall dimensions | 4.6 x 0.75 x 3.0 m |
| Minimum safety area | 5.3 x 9.6 m |
| Posts | Hot dip galvanised steel, 168.3 mm diameter |
| Rope | Braided and bonded polyamide, 18 mm, six strand galvanised steel core |
| Connections | Stainless steel articulated joints, aluminium and plastic links |
| Free height of fall | 2.85 m |
| Foundation depth | 1.0 m, reinforced concrete pads |
| Age range | 5 to 14 years |
| Standard | EN 1176-1:2017, certificate issued by an independent body |
| Reference | LIF-IDAXL-044 |
| Price | On application, quotation within 24 working hours |
Where the module fits
IDA XL is specified where a school or a municipality wants climbing content in a narrow strip: along a fence line, between a path and a lawn, or as one station on a longer rope trail. The three movements on one module, crossing, climbing and traversing the web walls, keep children on it longer than a single balance beam would.
The receiving area must be surfaced with an impact attenuating material to EN 1176-1 for a free height of fall of 2.85 m, over the full 5.3 by 9.6 m area. Foundation works need access for heavy plant, so gate widths and ground bearing are checked at survey.
Frequently asked questions
What is the difference with the two rope version?
IDA XL has four horizontal ropes held by steel spacers, plus a rubber mat climbing path and two web walls, where a two rope module offers a crossing only.
How deep are the foundations?
Reinforced concrete pads at 1.0 m depth.
Is the technical file available before ordering?
Yes. The technical data sheet and the implantation drawing are issued on request, and the module holds an EN 1176-1:2017 certificate from an independent body.
Request a quotation for a reply within 24 working hours, or browse the rope play modules range.
