FABULON Rope Play Dome with Stainless Steel Slide
FABULON Rope Play Dome with Stainless Steel Slide : rope play modules for playgrounds, marque Light In Fitness, tarif sur devis. FABULON — Dôme de jeu multifonctionnelFABULON est une structure en forme de dôme conçue pour l'escalade et le mouvement libre des enfants. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Four-arch rope play dome with suspended platform, climbing nets and a stainless steel slide, for children aged 0 to 14. Certified to EN 1176-1.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-FABULON-436. Layout study, delivery, installation and after sales.
Description

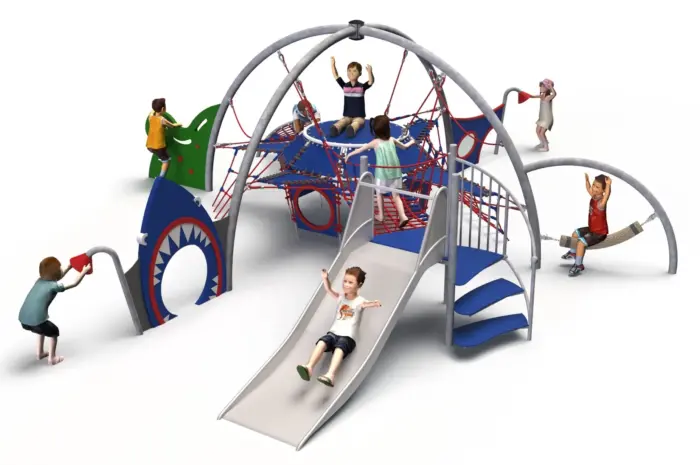

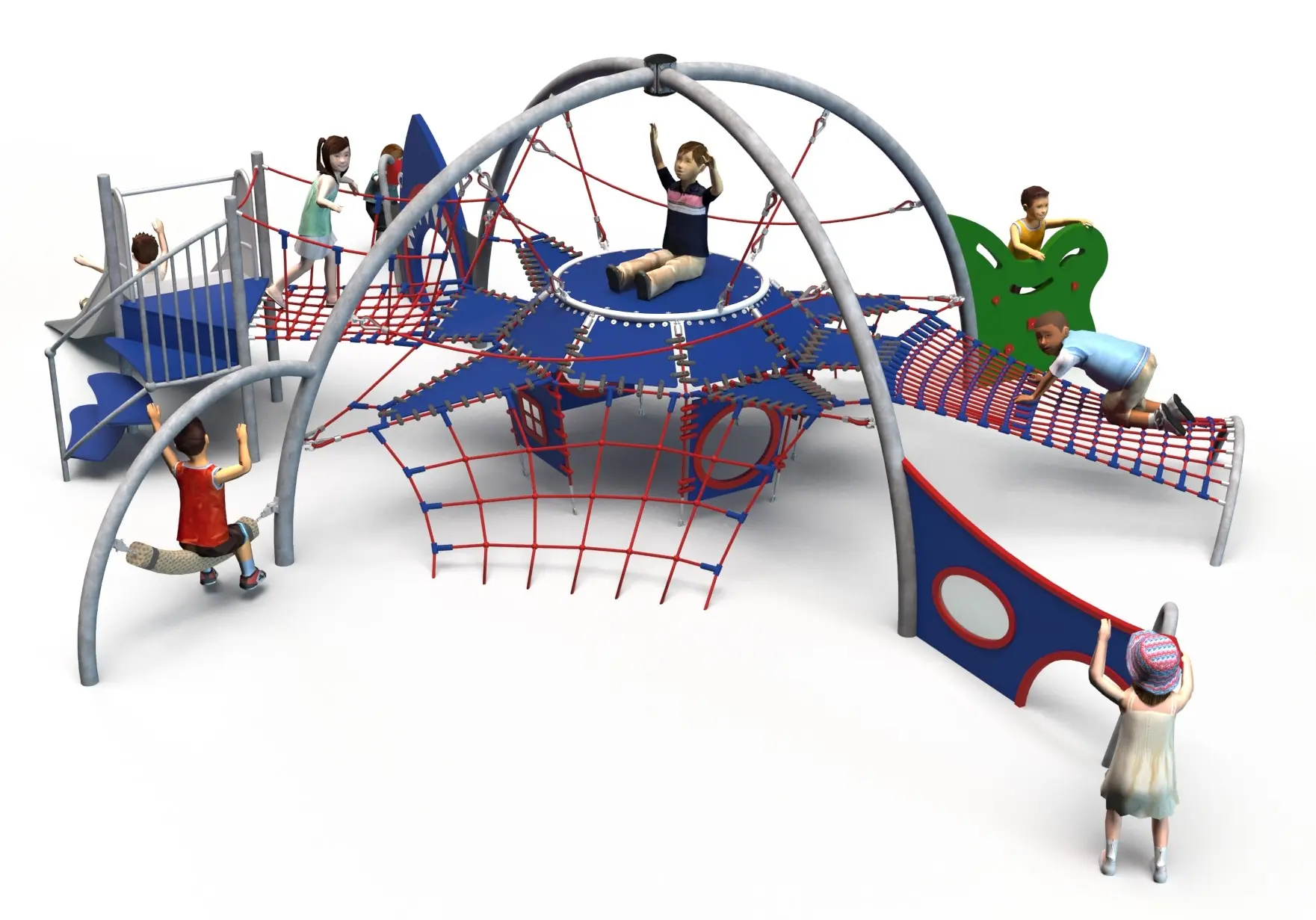

FABULON is a dome-shaped play structure built on four curved steel arches, giving 360-degree access at ground level and a suspended central platform above. Unusually for a rope-based unit, it is rated from 0 to 14 years, which makes it one of the few structures in the range that serves toddlers and older children on the same footprint.
An age range that changes the brief
The free height of fall is 1.0 m and the slide starts at 1.0 m — deliberately low. Combined with a spiral stair rather than a ladder, and a reinforced rubber matting platform rather than an open net floor, this produces a structure a supervised toddler can use while an older child still finds the oblique nets and climbing wall worth the effort. For mixed-age settings such as holiday parks, restaurants and community gardens, that removes the need for two separate items.
Components
- Four curved steel arches, 108 mm diameter.
- Suspended central platform in reinforced rubber matting.
- Horizontal and oblique polyamide rope nets.
- Stainless steel slide from a 1.0 m start height, with spiral stair.
- Decorative shark-mouth entrance panel and themed graphic panels.
- Suspended balance element, climbing wall and acoustic speaking tube.
Construction
Black steel arches protected by hot-dip galvanising, with powder coating optional. Nets are braided and bonded polyamide, 18 mm diameter. Connectors are aluminium and stainless steel, with plastic elements; foundations are concrete pads. The slide chute is stainless steel — the arches remain galvanised steel.
Siting and surfacing
FABULON occupies 9.2 x 7.5 m, stands 2.65 m tall and requires a minimum area of 12.4 x 10.7 m, with foundations at 1.0 m depth. It is certified to EN 1176-1:2017. Impact-attenuating surfacing is a separate specification tested to EN 1177; at a 1.0 m free height of fall the range of compliant surfaces is wide, which usually keeps the surfacing budget modest.
Technical specification
| Reference / SKU | LIF-FABULON-436 |
|---|---|
| Dimensions (L x W x H) | 9.2 x 7.5 x 2.65 m |
| Age range | 0 to 14 years |
| Free height of fall | 1.0 m |
| Safety area | 12.4 x 10.7 m minimum |
| Frame | Four curved black steel arches, 108 mm diameter, hot-dip galvanised |
| Finish | Powder coating optional; 18 mm braided and bonded polyamide nets; stainless steel slide; aluminium and stainless connectors |
| Foundations | Concrete pads, 1.0 m depth |
| Standard | EN 1176-1:2017 (equipment); surfacing to EN 1177 |
| Price | On request — project quotation within 24 business hours |
Frequently asked questions
Can toddlers really use the same structure as ten-year-olds?
The unit is certified from 0 to 14 years, but the youngest users need supervision as they would on any equipment. The low platform, spiral stair and 1.0 m slide start are what make the shared use practical.
What is the acoustic speaking tube for?
It links two points of the structure so children can talk between them. It is a play element with no moving parts and needs only cleaning at routine inspection.
Does the graphic theming affect lead time?
The shark-mouth entrance and graphic panels are standard for FABULON. Bespoke artwork is possible and is quoted with its own lead time.
Request a quotation. Tell us the age profile of your site and we will confirm the fit and return a project quotation within 24 business hours.
