ATRIA Five-Level Rope Dome Climbing Structure
ATRIA Five-Level Rope Dome Climbing Structure : rope play modules for playgrounds, marque Light In Fitness, tarif sur devis. ATRIA — Dôme de cordes à cinq niveaux avec parcours d'escaladeL'ATRIA se compose de deux demi-cercles métalliques entrecroisés, entre lesquels est tendue une structure de câbles organisée en cinq niveaux. Livraison et installation chiffrées sur devis en France, en Belgique et en Suisse.
Price on request
A five-level cable dome on two intersecting steel arcs, with holded climbing ropes and lattice entrance on just 6.2 x 6.2 m. EN 1176-1:2017. Price on request.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-ATRIA-407. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

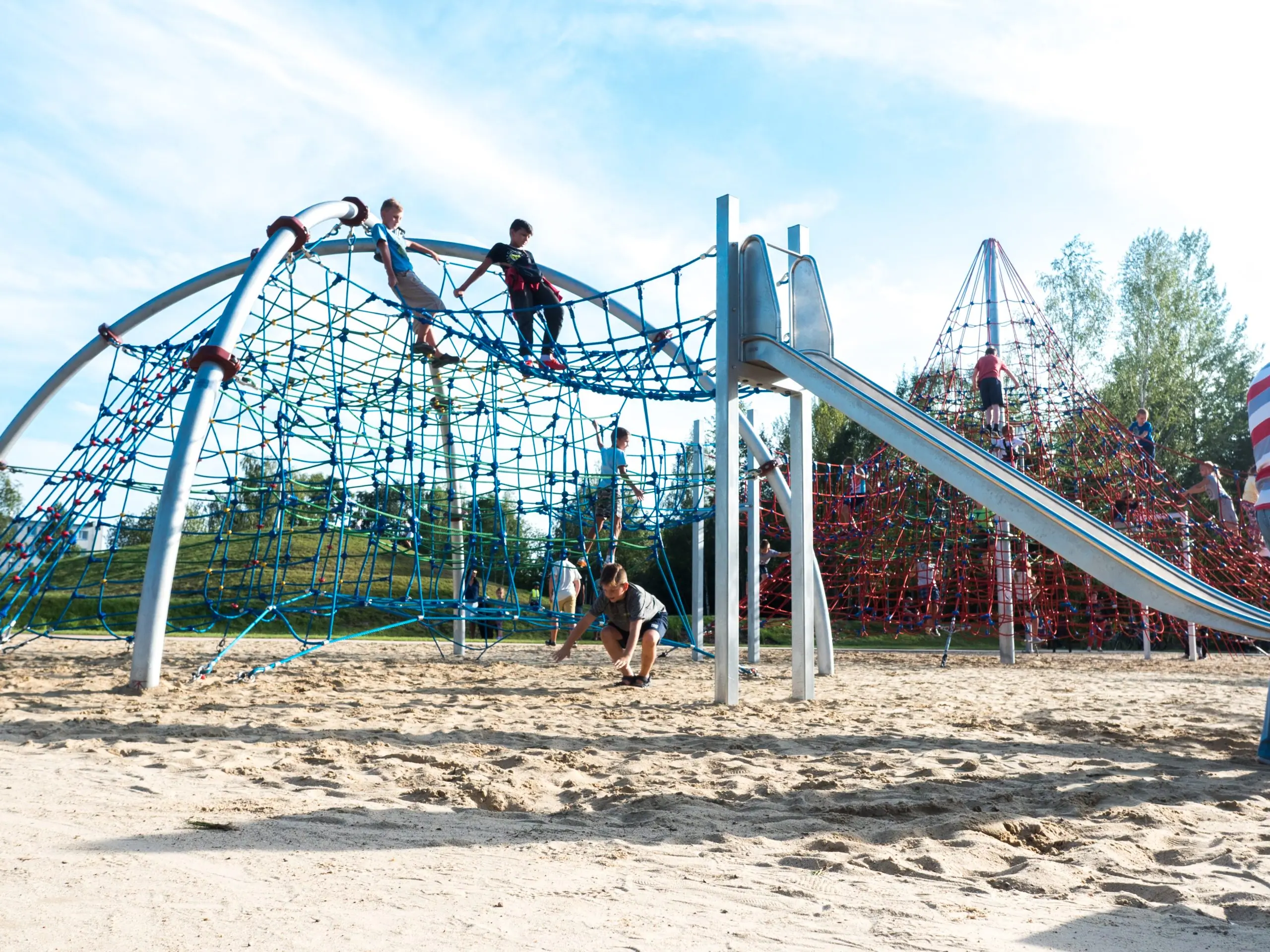

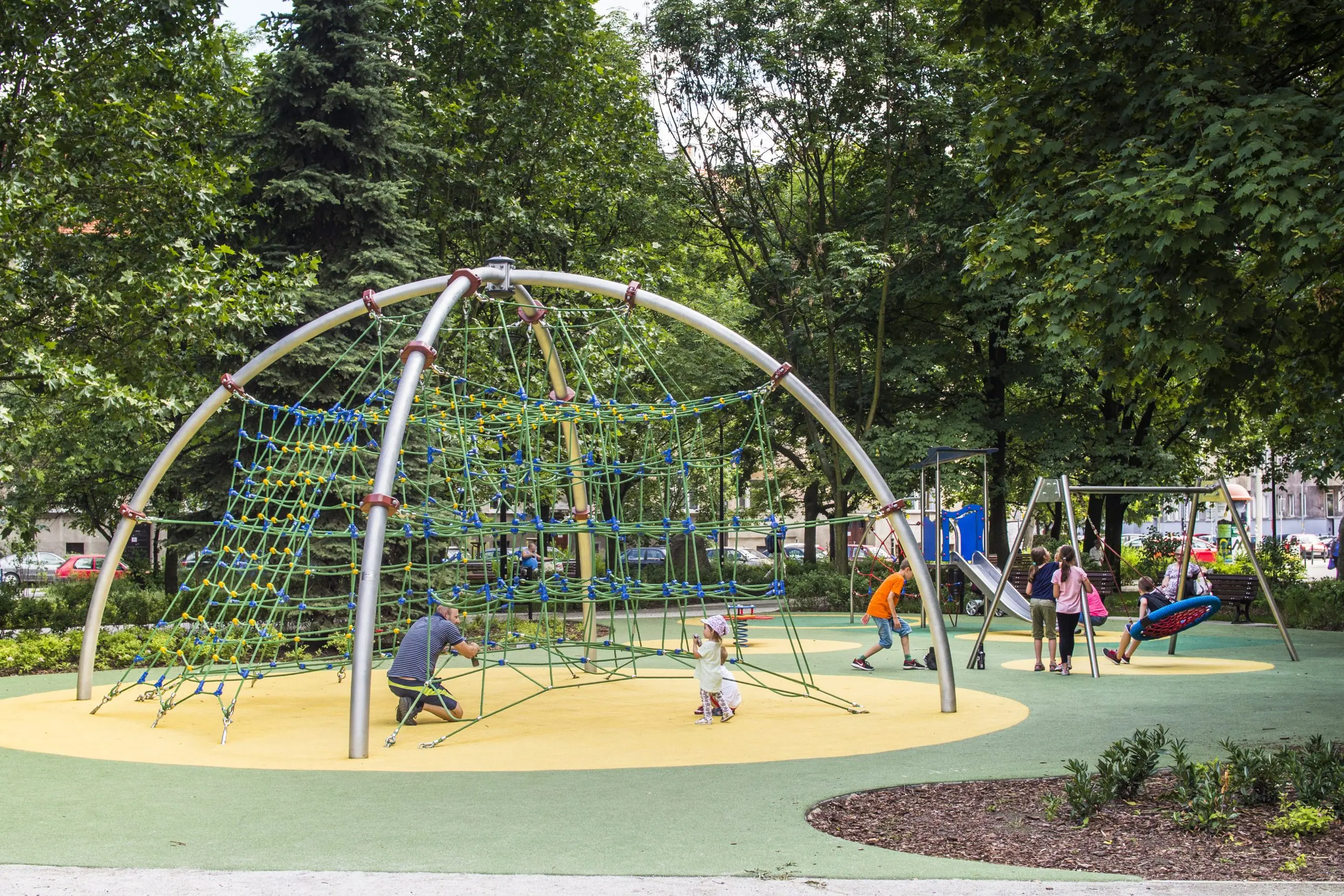

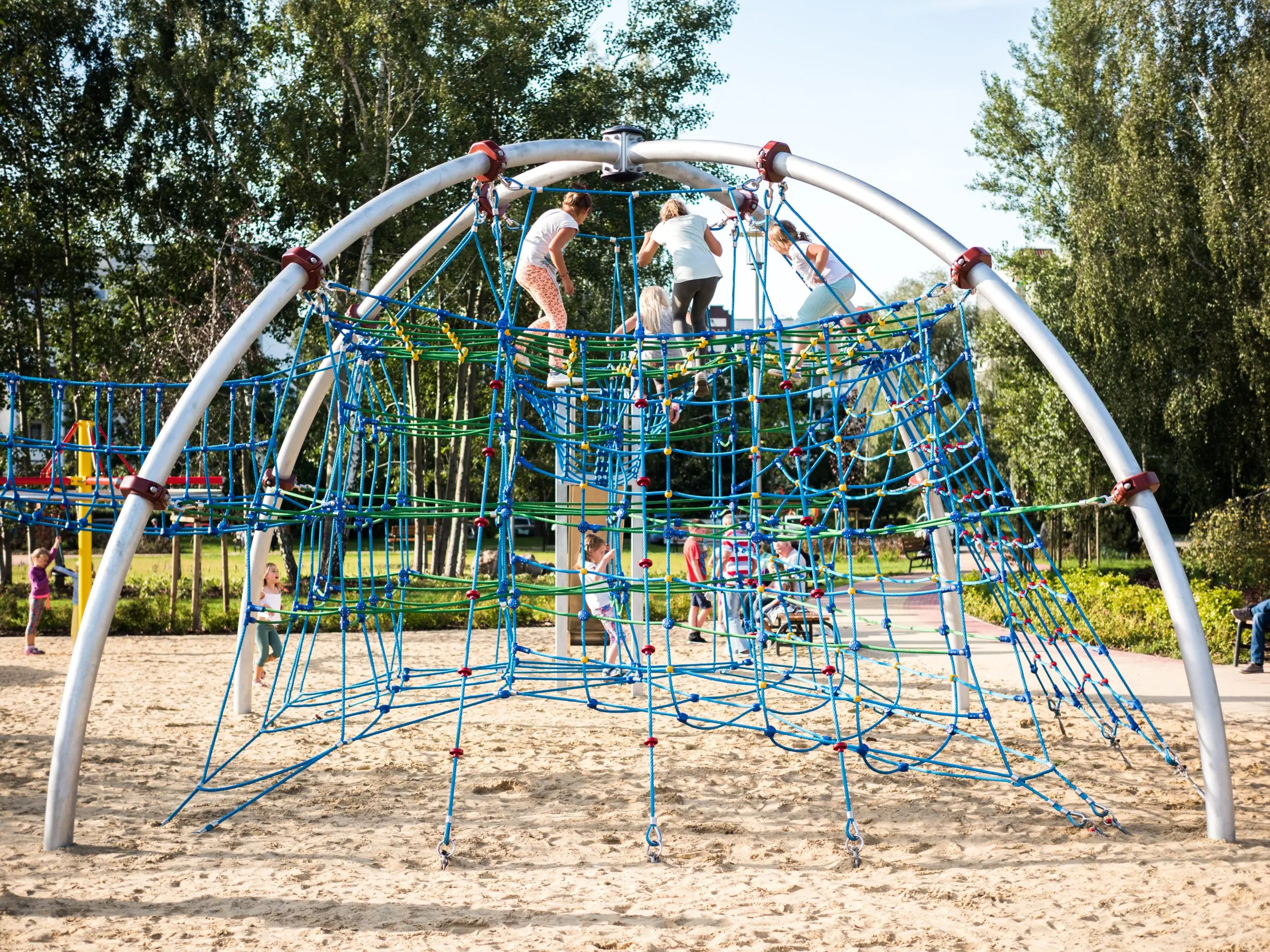

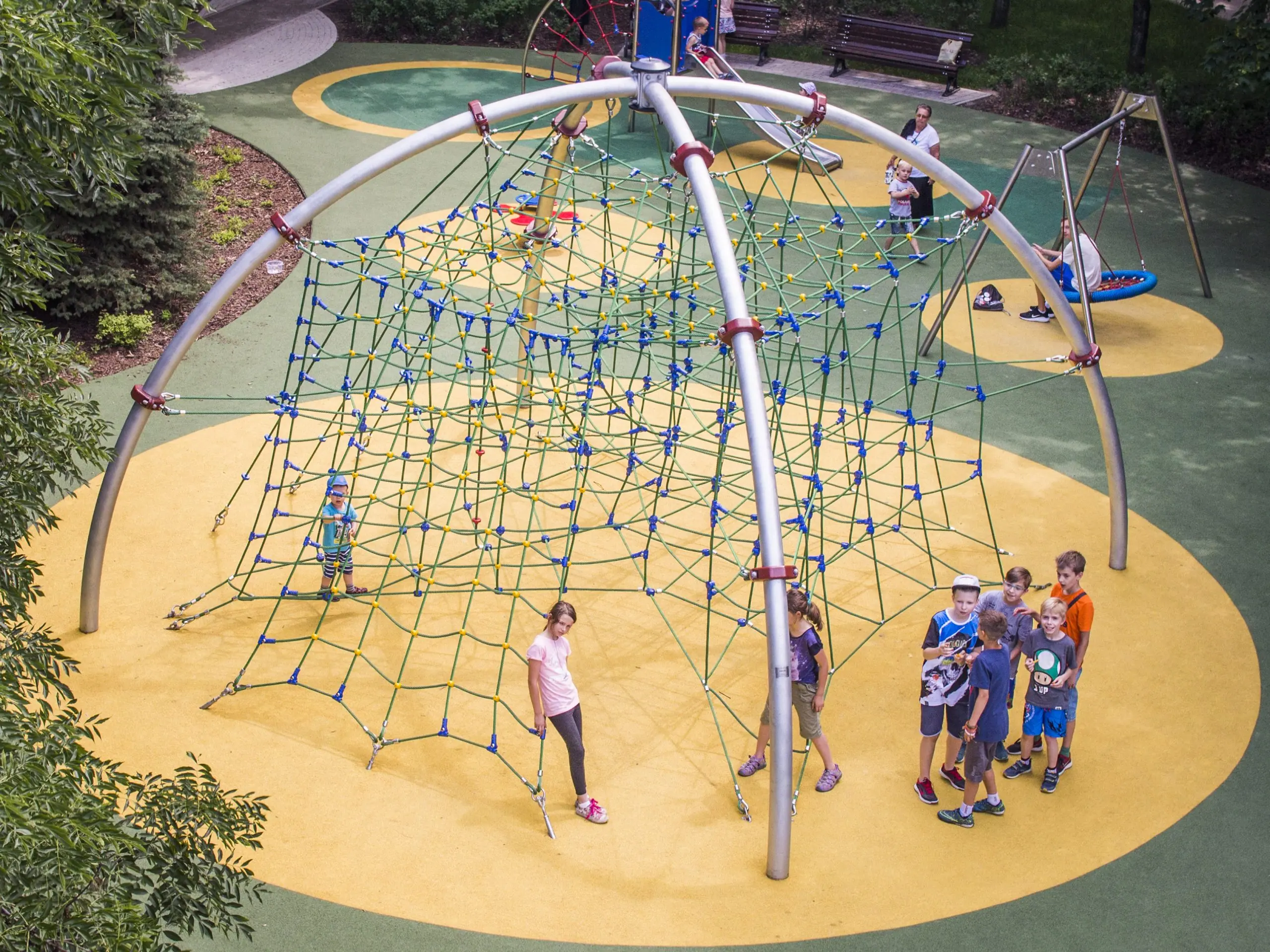

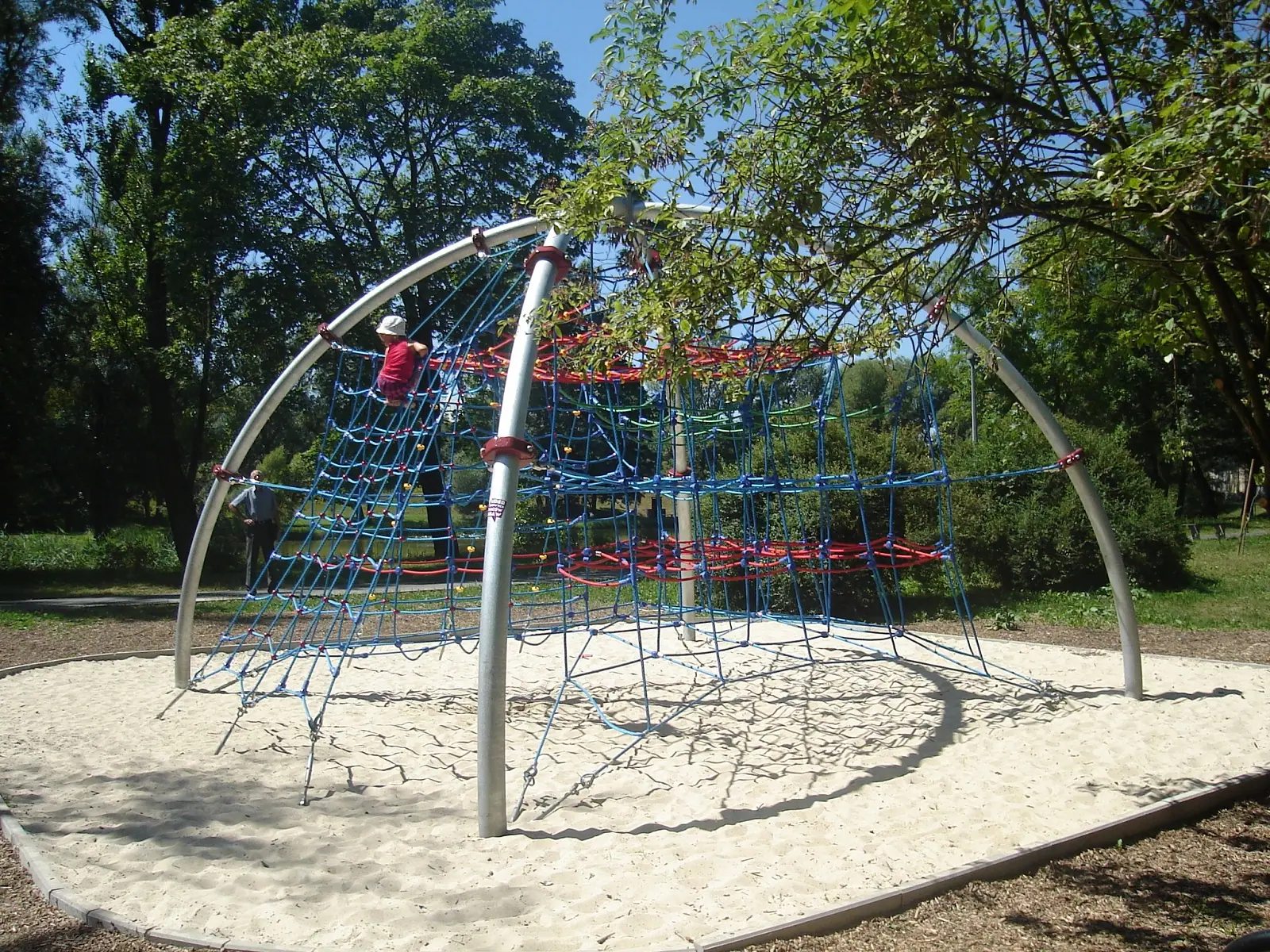

The ATRIA is a five-level rope dome built from two intersecting metal half-circles with a tensioned cable structure spanned between them. Three holded climbing ropes and a lattice entrance complete a technical, playful climbing course on a remarkably compact footprint. Supplied and installed throughout France by Light In Fitness.
Five levels in 6.2 metres square
The ATRIA concentrates vertical challenge instead of spreading it: within a 6.2 x 6.2 m base, the cable web organises five distinct levels up to 4.2 m, each requiring more technique than the last. The three climbing ropes – six holds each – offer a direct vertical route for confident climbers, while the lattice entrance grades the way in for beginners. It is the structure of choice when a site wants serious climbing content on minimal ground.
Components and equipment
- Two intersecting metal half-circles
- Tensioned cable structure organised in five levels
- Three climbing ropes with six holds each
- Lattice entrance
- Options: three slide types and a tube slide
Specifications
| Reference / SKU | LIF-ATRIA-407 |
|---|---|
| Dimensions | 6.2 x 6.2 x 4.2 m overall – minimum required space 9.7 x 9.7 m; free fall height 3.0 m; foundation depth 0.8 m; ages 5-14 |
| Frame | Galvanised steel tubes (139.7 mm); 18 mm braided, bonded polyamide cables; polyamide, aluminium and stainless steel connectors |
| Finish | Anti-corrosion protection: hot-dip galvanising and chlorinated rubber paint |
| Standard | EN 1176-1:2017, certified by an independent body |
| Price | On request – project quotation within 24 business hours |
Installation across France
Light In Fitness, manufacturer and distributor based in Tours since 2013, supports more than 500 client sites. Every project includes a free layout study, delivery anywhere in France, installation by our teams and a professional warranty; wear parts remain available after the sale. The technical sheet and layout plan are available on request.
Frequently asked questions
What do the five levels change for climbers?
Each level of the cable web is a stage: children conquer them one by one across visits, which keeps the structure challenging far longer than a single-summit dome. The holded ropes then offer the expert shortcut straight up.

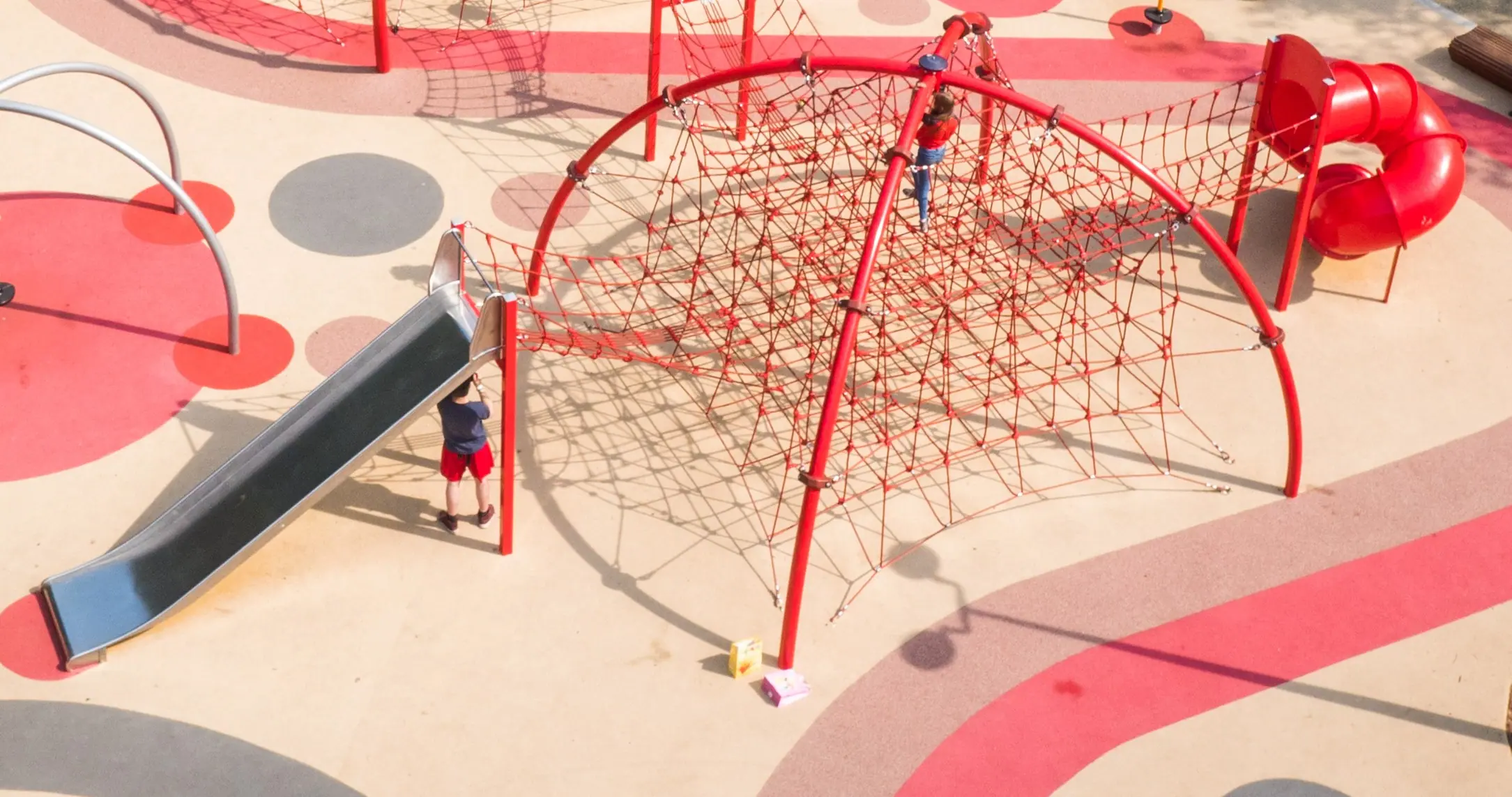

Which slide options exist?
Three slide types and a tube slide are available as options, converting the dome from a pure climbing course into a climb-and-descend loop. Options are selected at quotation stage.
How is the steel protected outdoors?
The 139.7 mm tubes are hot-dip galvanised and finished with chlorinated rubber paint – a dual anti-corrosion system – while the 18 mm cables are braided, bonded polyamide with polyamide, aluminium and stainless steel connectors.
See how the ATRIA fits a wider scheme in our children’s outdoor sports parks, or add fitness posts from the children’s outdoor fitness range. Request your free quotation – answered within 24 business hours.
