NAOS - Crossed Half-Circle Rope Climbing Dome
NAOS - Crossed Half-Circle Rope Climbing Dome : rope play modules for playgrounds, marque Light In Fitness, tarif sur devis. NAOS — Dôme de cordes à demi-cercles croisésLe NAOS séduit par sa silhouette épurée, formée de deux demi-cercles en acier entrecroisés. Livraison et installation chiffrées sur devis en France, en Belgique et en Suisse.
Price on request
Price on request – contact our team for a tailored quotation.
Rope climbing dome formed by two intersecting galvanised steel half-circles with a five-plane space net. Compact, sculptural and certified to EN 1176 for ages 5-14.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-NAOS-406. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

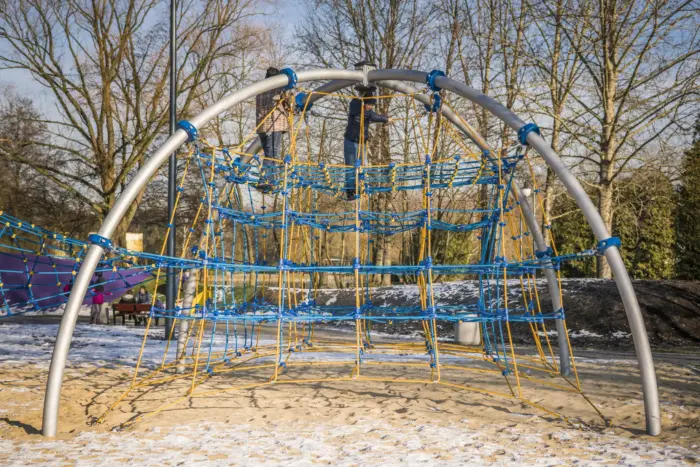

The NAOS rope climbing dome brings a clean, architectural silhouette to mid-size playgrounds. Two intersecting steel half-circles form the frame, and a five-plane space net is stretched between the arches to create a compact three-dimensional climbing course. Specified by local authorities, landscape architects and campsite operators, it delivers a genuine climbing challenge within a footprint of less than 6 x 6 m.
A sculptural climbing frame for public spaces
Unlike conventional net pyramids, the NAOS reads as a piece of outdoor sculpture: the crossed arches stand out in parks, school grounds and residential developments. Inside, the multi-plane net lets several children climb, traverse and rest at different heights at the same time, encouraging motor-skill development, grip strength and spatial awareness for users aged 5 to 14.
Key features
- Two intersecting half-circle arches in hot-dip galvanised steel tube (diameter 139.7 mm)
- Interior space net built from five interconnected climbing planes
- Braided, bonded polyamide rope with steel reinforcement, diameter 18 mm
- Polyamide, aluminium and stainless steel connectors; galvanised bolts
- Free fall height 3.0 m; foundation depth 0.8 m
- Minimum space required: 9.7 x 9.7 m
- Certified to EN 1176-1:2017 by an independent test body
Specifications
| Reference / SKU | LIF-NAOS-406 |
|---|---|
| Dimensions | 5.8 m (L) x 5.8 m (W) x 4.2 m (H) |
| Frame | Hot-dip galvanised steel tube, diameter 139.7 mm |
| Finish | Hot-dip galvanised; steel-reinforced polyamide ropes with aluminium and stainless steel connectors |
| Standard | EN 1176-1:2017, independently certified |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
What surfacing does the NAOS dome require?
With a free fall height of 3.0 m, the dome must be installed over impact-attenuating surfacing sized for that height across the full 9.7 x 9.7 m safety area. Our technical team can advise on compliant loose-fill or synthetic options as part of your project quotation.
How is the structure anchored?
The arches are set in reinforced concrete foundations at a depth of 0.8 m. A layout plan and technical data sheet are supplied on request so groundworks can be prepared before delivery.
Is the NAOS suitable for coastal or high-traffic sites?
Yes. The hot-dip galvanised frame, steel-reinforced polyamide ropes and stainless steel connectors are designed for intensive public use outdoors and require only routine tension and wear inspections.
Request your quotation
Tell us about your site and we will return a tailored project quotation within 24 business hours, including delivery and optional installation. Request a quote or explore more rope climbing nets.
