Evolo - Tubular Climbing Dome on Three Supports
Evolo - Tubular Climbing Dome on Three Supports : tubular play structures with rope climbing elements, marque Light In Fitness, tarif sur devis. Evolo – Dôme tubulaire de grimpe sur trois appuisEvolo forme un dôme ajouré spectaculaire, porté par trois appuis en tubes d'acier courbés. Livraison et installation chiffrées sur devis en France, en Belgique et en Suisse.
Price on request
Price on request – contact our team for a tailored quotation.
Open climbing dome on three curved steel supports with funnel-shaped central net, four climbing ropes and three suspended balls. EN 1176, ages 5-14.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-EVOLO-1410. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

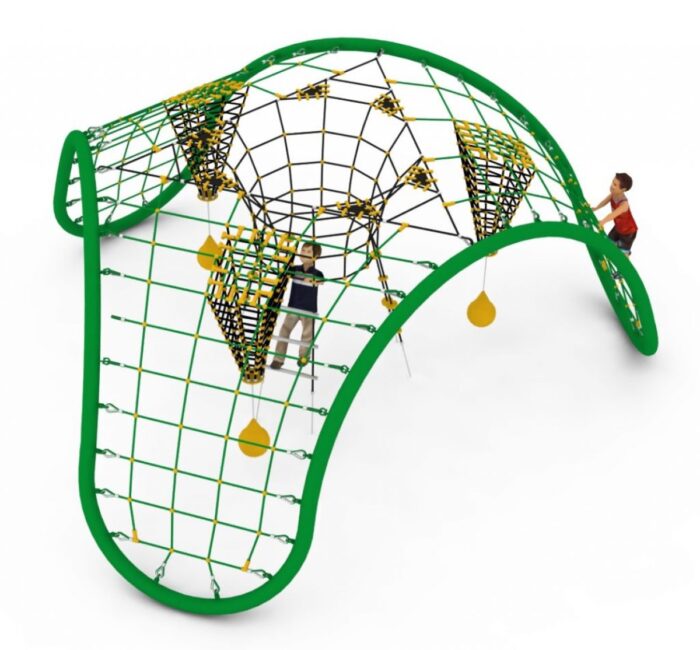

The Evolo forms an open climbing dome carried on three curved steel tube supports – a light, sculptural alternative to closed domes. A funnel-shaped central net draws climbers towards the middle, while four climbing ropes with plastic handholds, a ladder and three suspended balls turn the 6.7 x 6.1 m structure into a busy little attraction.
An open dome that invites every approach
Because the Evolo stands on just three supports, children aged 5 to 14 can enter from any direction and choose their route: up the ropes, over the ladder, or straight into the central funnel net where gravity gathers everyone together. The suspended balls add swinging and balance play, keeping the structure lively even for children who are not yet confident climbers. At 2.8 m high, it delivers real climbing without dominating the landscape.
Key features
- Three curved steel tube supports, diameter 139.7 mm, hot-dip galvanised and painted
- Funnel-shaped central net with 350 x 350 mm average mesh
- Four climbing ropes with plastic handholds and one ladder
- Three suspended balls for swinging and balance play
- Braided, bonded polyamide rope reinforced with galvanised steel strands, diameter 18 mm
- Polyamide connectors, pressed aluminium elements, galvanised shackles, stainless thimbles
- Anchoring on reinforced concrete footings, depth 1.0 m
Specifications
| Reference / SKU | LIF-EVOLO-1410 |
|---|---|
| Dimensions | 6.7 m (L) x 6.1 m (W) x 2.8 m (H) |
| Frame | Curved steel tubes, diameter 139.7 mm, hot-dip galvanised and painted |
| Finish | Steel-reinforced polyamide nets, aluminium and polyamide connectors |
| Standard | EN 1176-1:2017 |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
What is the advantage of the three-support design?
Fewer supports mean open sight lines for supervisors, unobstructed access from all sides, and a lighter visual footprint than fully enclosed domes of similar capacity.
What safety area does the Evolo need?
Reserve a minimum of 9.7 x 9.5 m with impact-attenuating surfacing rated for the 2.8 m free fall height, in accordance with EN 1176.
What role do the suspended balls play?
They act as dynamic balance elements – children stand, swing and bounce on them – adding vestibular play that complements the static climbing nets.
Request your quotation
Bring the Evolo to your playground – quotation returned within 24 business hours. Request a quote or see more rope climbing nets.
