Lupi Circular Climbing Structure

Name: Lupi - Circular Tubular Structure with Vertical Climbing Wall
Brand: Light In Fitness
SKU: LIF-LUPI-1408

Lupi - Circular Tubular Structure with Vertical Climbing Wall

Lupi - Circular Tubular Structure with Vertical Climbing Wall : tubular play structures with rope climbing elements, marque Light In Fitness, tarif sur devis. Brand : Light In Fitness. Delivery and installation priced on quotation across Europe.

Price on request

Shipping quoted separately The shipping cost is confirmed before you approve the order.

Price on request – contact our team for a tailored quotation.

Circular steel ring with vertical net climbing wall, ten knotted ropes and stainless steel ladder. Coordination-focused EN 1176 module for ages 5-14.

This item is supplied on quotation: configuration, delivery and installation are priced against your project.

Request a quotation +33 6 20 72 66 96

Answer within 24 working hours, quote reference LIF-LUPI-1408. Layout study, delivery, installation and after sales.

Conformity: equipment designed to EN 1176 (playground equipment); the Light In Fitness declaration of conformity for this reference is supplied on request with the quotation.

Warranty: specified in the quotation for each reference — details of our warranties.

Light In Fitness: B2B manufacturer and distributor of professional sports equipment since 2013, with more than 2,500 customers equipped (gyms, CrossFit boxes, local authorities, hotels, care homes, military bases). New equipment only. Light In Fitness range: designed in Tours, France, manufactured in Europe.

Description

In brief — Lupi – Circular Tubular Structure with Vertical Climbing Wall: thickness 4 mm, free fall height 2,8 m, age range 5 to 14 years, safety area 15,8 x 15,4 m, standards EN 1176-1:2017, price on quotation.

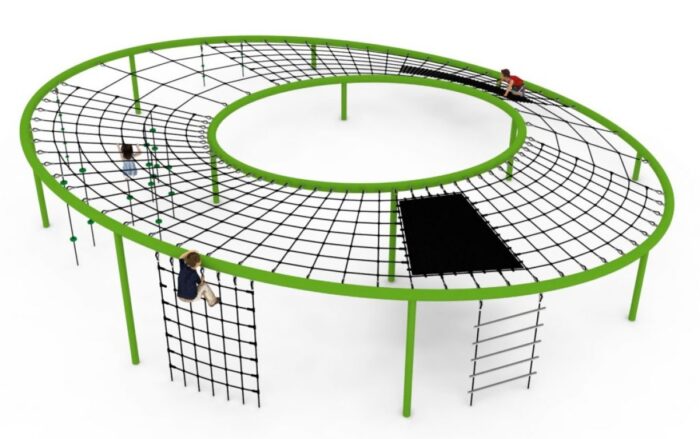

The Lupi pairs a circular steel ring with a vertical net climbing wall, ten knotted climbing ropes and a stainless steel ladder – a module built to train coordination, grip and courage in equal measure. Its open circular plan spreads users around the perimeter, so the whole ring works at once.

A ring of challenges

Children aged 5 to 14 circulate around the 12.2 x 11.9 m ring, moving between distinct challenges: ten climbing ropes fitted with 250 mm HDPE and 70 mm polypropylene knots for graduated grip difficulty, a 2.6 x 1.5 m vertical net wall for technical ascents, and a vertical stainless steel ladder for direct climbs. An 8 mm rubber mat (2.3 x 1.4 m) marks the landing zone at the wall. Because activities are distributed around the ring rather than stacked, supervision remains simple and children self-select their level.

Key features

Ring in S235 steel tube, diameter 168.3 mm (4 mm wall), hot-dip galvanised and painted
Support post in S235 steel tube, diameter 114.3 mm (5 mm wall)
Ten climbing ropes with HDPE (250 mm) and polypropylene (70 mm) knots
Vertical net climbing wall, 2.6 x 1.5 m; vertical stainless steel ladder
Rubber mat 8 mm, 2.3 x 1.4 m
Braided polyamide rope reinforced with galvanised steel strands, 18 mm
Free fall height 2.8 m; foundation depth 1.0 m; minimum space 15.8 x 15.4 m

Specifications

Reference / SKU	LIF-LUPI-1408
Dimensions	12.2 m (L) x 11.9 m (W) x 2.8 m (H)
Frame	S235 carbon steel tube, ring diameter 168.3 mm, hot-dip galvanised and painted
Finish	Painted galvanised steel, stainless steel ladder, steel-reinforced polyamide ropes
Standard	EN 1176-1:2017
Price	On request – project quotation within 24 business hours

Frequently asked questions

Why two knot sizes on the climbing ropes?

The large 250 mm HDPE knots act as steps for beginners, while the small 70 mm polypropylene knots demand real grip strength – the same rope field serves two skill levels.

What steel grade is used?

The ring and post are S235 structural carbon steel, hot-dip galvanised and painted for outdoor durability, with a stainless steel ladder at the climbing wall.

What safety area is required?

Allow 15.8 x 15.4 m with impact-attenuating surfacing rated for the 2.8 m free fall height, per EN 1176.

Request your quotation

Put the Lupi ring at the heart of your playground – quotation returned within 24 business hours. Request a quote or see more rope play modules.

Outdoor maintenance

Rinse with clean water twice a year. Touch up paint chips as soon as they appear: it is the bare steel that starts corrosion, not exposure itself. Check bolt tightness and anchors after the first winter, then once a year. No high-pressure washing at close range.
