Aludra - Tubular Climbing Structure with Rope Chimney
Aludra - Tubular Climbing Structure with Rope Chimney : tubular play structures with rope climbing elements, marque Light In Fitness, tarif sur devis. Aludra – Structure tubulaire de grimpe avec cheminée de cordesAludra propose un parcours de grimpe à deux niveaux au sein d'un cadre en acier courbé. Livraison et installation chiffrées sur devis en France, en Belgique et en Suisse.
Price on request
Price on request – contact our team for a tailored quotation.
Two-level climbing structure on a curved steel frame: tight-mesh beginner net, upper net and vertical rope chimney with 18 climbing ropes. EN 1176, ages 5-14.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-ALUDRA-1414. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

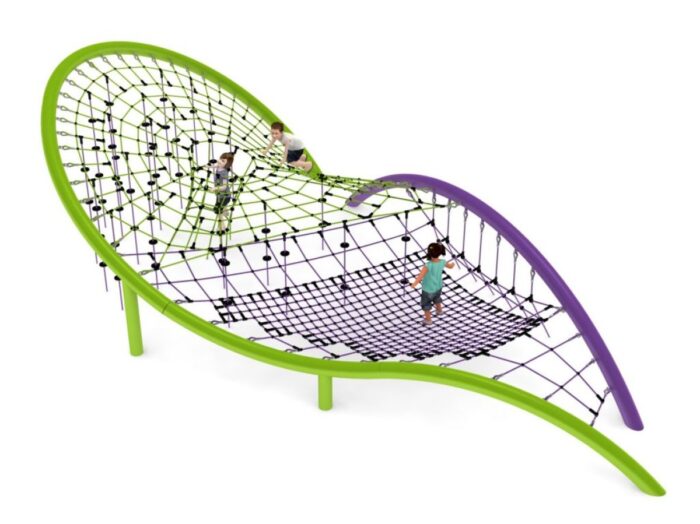

The Aludra organises climbing into a natural progression: a lower net with tight 130 x 130 mm mesh where beginners find close, secure footholds, and an upper zone extended by a vertical rope chimney for climbers ready to commit. With at least eighteen climbing ropes along its curved steel frame, it coaches children from first steps to confident ascents.
Two levels, one learning curve
Most nets treat all climbers the same; the Aludra differentiates. The tight-mesh lower net shortens every reach and step, giving less experienced children aged 5 and up an achievable start. As skills grow, they graduate to the upper net and finally the rope chimney – a vertical shaft of cordage that demands technique and nerve. The curved frame, built from steel of at least 200 mm diameter, gives the module its flowing silhouette.
Key features
- Curved steel frame, minimum diameter 200 mm, hot-dip galvanised and powder-coated
- Lower net with tight mesh of approximately 130 x 130 mm
- Upper net extended by a vertical rope chimney
- At least 18 climbing ropes
- Braided, bonded polyamide rope, minimum diameter 18 mm
- Aluminium, stainless steel and plastic connectors; reinforced concrete footings, depth 1.1 m
- Free fall height 2.5 m; minimum space 15.1 x 9.2 m
Specifications
| Reference / SKU | LIF-ALUDRA-1414 |
|---|---|
| Dimensions | 10.3 m (L) x 5.1 m (W) x 2.6 m (H) |
| Frame | Curved steel, minimum diameter 200 mm, hot-dip galvanised and powder-coated |
| Finish | Powder coating; bonded polyamide nets; stainless steel connectors |
| Standard | EN 1176-1:2017 |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
Why does the mesh size vary between zones?
The 130 x 130 mm lower mesh gives short reaches and frequent footholds for beginners; the more open upper net and the rope chimney progressively raise the difficulty as confidence builds.
What is the rope chimney?
A vertical shaft of cordage rising from the upper net – climbers brace between its walls to ascend, an introduction to technique used in real climbing.
What are the ground requirements?
Footings at 1.1 m depth and a 15.1 x 9.2 m safety zone with surfacing rated for the 2.5 m free fall height.
Request your quotation
Build a climbing progression into your park – quotation returned within 24 business hours. Request a quote or compare rope play modules.
