Zosma - Curved Dome Structure with Rope Funnel
Zosma - Curved Dome Structure with Rope Funnel : tubular play structures with rope climbing elements, marque Light In Fitness, tarif sur devis. Livraison et installation chiffrées sur devis en France, en Belgique et en Suisse.
Price on request
Price on request – contact our team for a tailored quotation.
Sweeping curved-frame structure with near-flat rising net, ground-anchored rope funnel of 18 ropes and stable nest seat. EN 1176, ages 5-14.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-ZOSMA-1415. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

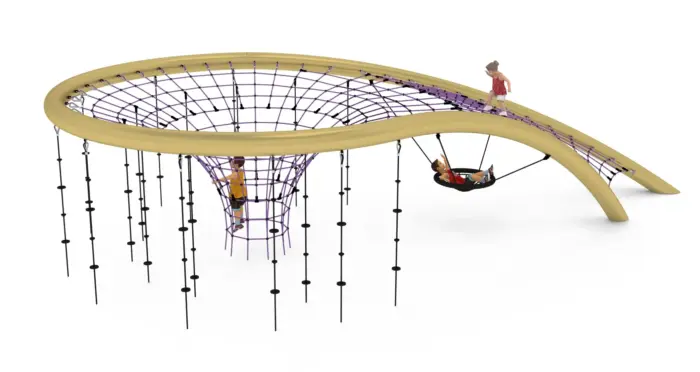

The Zosma flows like a wave frozen in steel: a massive curved frame of at least 300 mm diameter carries a near-flat net that rises gently to the structure’s high point, then plunges into a ground-anchored rope funnel with at least eighteen climbing ropes. A four-point nest seat completes this low, sweeping climbing landscape.
A gentle rise with a dramatic finish
Most climbing structures start hard; the Zosma starts easy. Children aged 5 to 14 step onto the almost horizontal net at ground level and walk, crawl or bounce their way up the gradual incline – an approach that welcomes hesitant climbers. At the summit the character changes: the net funnels downward into a cone of ropes anchored to the ground, a swirling descent route that doubles as a vertical climb for the ambitious. The four-point nest seat, hung without swing, offers a stable resting pod alongside.
Key features
- Curved steel frame, minimum diameter 300 mm, hot-dip galvanised and powder-coated
- Near-flat net rising from ground level to the high point
- Ground-anchored rope funnel with at least 18 climbing ropes
- Nest-type seat suspended at four points, non-swinging
- Polyamide ropes, minimum diameter 18 mm
- Aluminium, steel and plastic connectors; stainless and galvanised steel elements
- Free fall height 2.5 m; foundation depth 1.1 m; minimum space 16.9 x 10.9 m
Specifications
| Reference / SKU | LIF-ZOSMA-1415 |
|---|---|
| Dimensions | 11.7 m (L) x 6.1 m (W) x 2.7 m (H) |
| Frame | Curved steel, minimum diameter 300 mm, hot-dip galvanised and powder-coated |
| Finish | Powder coating; polyamide nets; stainless and galvanised steel elements |
| Standard | EN 1176-1:2017 |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
Why is the main net almost flat?
The gentle gradient invites children who find steep nets intimidating, letting them gain height gradually before meeting the funnel’s steeper challenge – inclusion by design.
What is special about the nest seat?
It hangs from four points without swinging, providing a calm, stable pod – useful for children who want the enclosure of a nest without the motion.
What are the ground requirements?
Reinforced concrete footings at 1.1 m depth and a 16.9 x 10.9 m safety zone surfaced for the 2.5 m free fall height.
Request your quotation
Add a wave to your playground – quotation returned within 24 business hours. Request a quote or compare rope play modules.
