Eight Looped Structure with Rope Tunnel

Name: Eight - Looped Tubular Structure with Rope Tunnel
Brand: Light In Fitness
SKU: LIF-HUIT-1423

Eight - Looped Tubular Structure with Rope Tunnel

Eight - Looped Tubular Structure with Rope Tunnel : tubular play structures with rope climbing elements, marque Light In Fitness, tarif sur devis. Encombrement 690 × 460 × 310 cm. Brand : Light In Fitness. Delivery and installation priced on quotation across Europe.

Price on request

Shipping quoted separately The shipping cost is confirmed before you approve the order.

Price on request – contact our team for a tailored quotation.

Compact looped steel module with suspended rope tunnel, ring-mounted seat, ladder and activity panels. EN 1176 compliant, ages 5-14.

This item is supplied on quotation: configuration, delivery and installation are priced against your project.

Request a quotation +33 6 20 72 66 96

Answer within 24 working hours, quote reference LIF-HUIT-1423. Layout study, delivery, installation and after sales.

Conformity: equipment designed to EN 1176 (playground equipment); the Light In Fitness declaration of conformity for this reference is supplied on request with the quotation.

Warranty: specified in the quotation for each reference — details of our warranties.

Light In Fitness: B2B manufacturer and distributor of professional sports equipment since 2013, with more than 2,500 customers equipped (gyms, CrossFit boxes, local authorities, hotels, care homes, military bases). New equipment only. Light In Fitness range: designed in Tours, France, manufactured in Europe.

Description

In brief — Eight – Looped Tubular Structure with Rope Tunnel: dimensions 690 × 460 × 310 cm, free fall height 3,0 m, age range 5 to 14 years, safety area 10,6 x 7,5 m, standards EN 1176-1:2017, price on quotation.

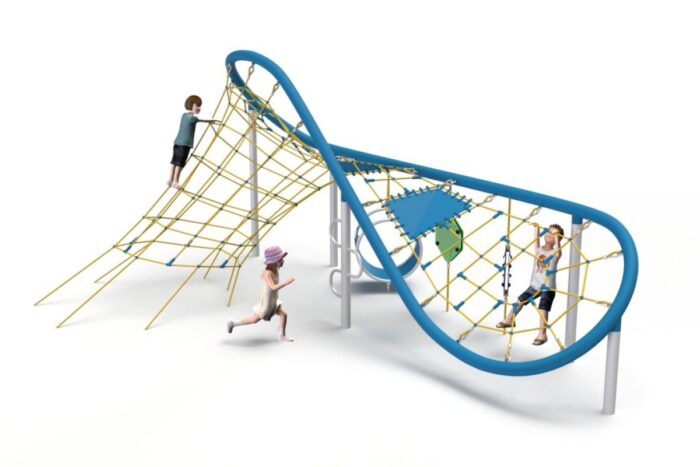

The Eight bends steel into a single continuous loop and hangs a rope tunnel inside it – a compact, sculptural module that brings crawling, climbing, sitting and sensory play to small playgrounds. At 6.9 x 4.6 m, it slots into spaces where conventional multi-play units cannot go.

One loop, many ways to play

The suspended rope tunnel, floored with an 8 mm rubber mat, is the heart of the module: children aged 5 to 14 crawl, balance and perch along its length, feeling the tunnel respond to every movement. A steel ladder provides the way up, a seat mounted on steel rings offers a swaying rest, and two visual activity panels engage waiting children at ground level. The looped frame reads as public sculpture – a plus for town squares and residential courtyards.

Key features

Structural loop in curved steel tube, diameter 139.7 mm, on 114.3 mm posts
Suspended rope tunnel with 8 mm rubber mat
Seat mounted on steel rings; steel ladder access
Two visual activity panels
Hot-dip galvanised and powder-coated steelwork
18 mm braided, bonded polyamide rope reinforced with galvanised steel strands
Free fall height 3.0 m; C20/25 reinforced concrete foundations at 1.0 m

Specifications

Reference / SKU	LIF-HUIT-1423
Dimensions	6.9 m (L) x 4.6 m (W) x 3.1 m (H)
Frame	Curved steel loop diameter 139.7 mm on 114.3 mm posts, hot-dip galvanised, powder-coated
Finish	Powder coating; steel-reinforced polyamide net tunnel; rubber mat
Standard	EN 1176-1:2017
Price	On request – project quotation within 24 business hours

Frequently asked questions

What space does the Eight require?

A 10.6 x 7.5 m safety zone with impact-attenuating surfacing rated for the 3.0 m free fall height – one of the smallest complete play modules in our range.

Can it be combined with the Double Eight?

Yes – the two share the same loop language and are often paired to build a progressive tunnel trail across a larger site.

What foundations are specified?

Reinforced concrete pads in C20/25 grade at 1.0 m depth; the layout drawing supplied with your quotation details positions and volumes.

Request your quotation

Loop more play into less space – quotation returned within 24 business hours. Request a quote or compare rope play modules.

Positioning this reference

Footprint: 31.74 m², for a range from 29.00 to 151.70 m².

Comparison based on 5 comparable references.

More compact model: Miniroodix - Compact Arched Tubular Structure with Rope Nets
Larger model: Nunki - Compact Tubular Structure with Nest Seat

Outdoor maintenance

Rinse with clean water twice a year. Touch up paint chips as soon as they appear: it is the bare steel that starts corrosion, not exposure itself. Check bolt tightness and anchors after the first winter, then once a year. No high-pressure washing at close range.

Fiche produit originale rédigée et publiée par Light In Fitness (Tours), mise à jour le 12/09/2026 — source : https://lightinfitness.com/en/product/eight-loop-rope-tunnel/. Textes et photos protégés ; reproduction sans autorisation interdite.

Additional information

Dimensions	690 × 460 × 310 cm
Brand	Light In Fitness

Delivery and installation

Dimensions 690 × 460 × 310 cm: shipping is quoted according to quantity and delivery address. Access requirements (loading dock, tail lift, door widths) and the delivery appointment are agreed before dispatch.

This equipment is fixed to the ground (anchoring or grouting depending on the surface); installation can be quoted with delivery or done by your team.
