TRAINER Steel4Fit Arm Lift Trainer

Name: TRAINER Steel4Fit Arm Lift Trainer - Outdoor Shoulder Station
Brand: TRAINER
SKU: D50-STEEL4FIT
Price: 1974.00 EUR
Availability: InStock

TRAINER Steel4Fit Arm Lift Trainer - Outdoor Shoulder Station

TRAINER Steel4Fit Arm Lift Trainer - Outdoor Shoulder Station : tRAINER Steel4Fit outdoor strength range, 1 974,00 EUR excl. VAT. Encombrement 54 × 61 × 166 cm, masse 45 kg. Brand : TRAINER. Delivery and installation priced on quotation across Europe.

1,974.00 € excl. VAT

i.e. 2,368.80 € TTC selon la destination de livraison

Shipping quoted separately The shipping cost is confirmed before you approve the order.

Outdoor shoulder developer station, TRAINER Steel4Fit Arm Lift Trainer. 540 x 610 x 1,660 mm, 45 kg, hot-dip galvanised steel, EN 16630:2015. 1,974 EUR excluding VAT.

Quotation = itemised pricing with delivery, installation and trade discounts, within 24 business hours. No commitment. Our commitments

Conformity: equipment compliant with EN 16630 (permanently installed outdoor fitness equipment), tested and certified by TÜV Rheinland; the certificate is supplied on request with the quotation.

Light In Fitness warranty: steel frame with 20-year warranty (designed by Light In Fitness in Tours, France, manufactured in Europe), wear parts 6 months — detailed conditions. Our custom design service.

Description

In brief — TRAINER Steel4Fit Arm Lift Trainer: dimensions 54 × 61 × 166 cm, weight 45 kg, maximum load 150 kg, safety area 354 x 361 cm, standards EN 16630:2015, designed by Light In Fitness in Tours and manufactured in Europe (steel with 20-year warranty), price 1,974.00 € excl. VAT.

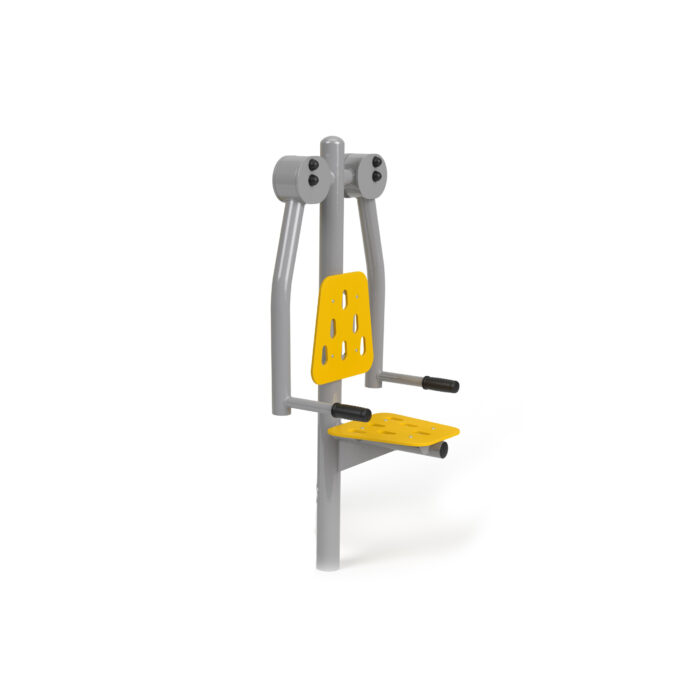

The Arm Lift Trainer is the TRAINER Steel4Fit shoulder developer: a 540 x 610 x 1,660 mm station weighing 45 kg that strengthens the shoulder girdle through a controlled lateral arm movement. Price: 1,974 EUR excluding VAT.

Upper-body work in an outdoor trail

Outdoor fitness installations lean heavily towards legs and core. The Arm Lift Trainer covers the shoulder girdle and the free portion of the upper limb, with emphasis on the lateral regions of the arms. Rated easy, it is designed for regular use in an open-access fitness area rather than for occasional heavy loading, which is the correct brief for equipment that no one supervises.

The lightest station in the group

At 45 kg and 540 x 610 mm, the Arm Lift Trainer has the smallest footprint and mass of the Steel4Fit stations covered here, with a recommended safety zone of 354 x 361 cm. In a constrained site, that combination makes it the station most likely to fit where the layout is already tight, for instance along the edge of a path or in a corner of a school yard.

Steel4Fit construction

Manufactured by TRAINER to the Steel4Fit specification: high-quality welded steel, curved elements in seamless S355, straight components in S235, hot-dip galvanised and powder-coated twice. Finish in red and graphite, RAL 3000 and RAL 7016.

Technical specification

Reference / SKU	D50-STEEL4FIT
Dimensions (L x W x H)	540 x 610 x 1,660 mm
Weight	45 kg
Frame	Seamless S355 steel (curved) and S235 (straight), hot-dip galvanised
Finish	Double powder coat, RAL 3000 / RAL 7016
Maximum user weight	150 kg
Safety zone	354 x 361 cm
Difficulty	Easy
Standard	EN 16630:2015, tested and certified by TUV Rheinland
Price	1,974 EUR excluding VAT

Frequently asked questions

What are the dimensions and weight?

540 x 610 x 1,660 mm and 45 kg. These figures allow the siting to be verified and, where the installation sits on a built structure, the supporting capacity to be checked before installation.

What is the price?

1,974 EUR excluding VAT, excluding delivery and installation. A tailored quotation can combine several references into a single equipment project.

Is this a professional product?

Yes. Light In Fitness is a B2B manufacturer and distributor based in Tours, equipping gyms, hotels, local authorities and specialist institutions since 2013.

Placing it in a trail

Upper-body stations work best positioned mid-circuit rather than at the start, once users have warmed up. With a safety zone of 354 x 361 cm, the Arm Lift Trainer is the easiest Steel4Fit station to insert into an existing layout where the obvious positions are already occupied. It is commonly installed alongside a pull-up frame and a core station to give a complete upper-body group on a small area.

Price: 1,974 EUR excluding VAT. Send us your outdoor fitness area plan and we will return a station list, siting drawing and consolidated price within 24 business hours.

Floor area required

Overall dimensions : 0.54 × 0.61 × 1.66 m
Equipment footprint : 0.33 m²
Total area to allow for : 12.8 m²

Total area calculated with a 1.5 m safety zone all around the equipment, the value applied by Light In Fitness under standard EN 16630. A unit installed within a set can share that zone with its neighbours, so a complete area requires less than the sum of the individual figures. We provide the dimensioned layout plan with the quotation. Figures calculated from the dimensions of this reference.

Compared with neighbouring references

Footprint: 0.33 m², for a range from 0.33 to 1.65 m².
Weight: 45.0 kg, for a range from 15.0 to 95.0 kg.

It is the most compact of its range. Comparison based on 57 comparable references.

Larger model: TRAINER Steel4Fit Outdoor Ship Wheel

Care and maintenance

Dust the ventilation grilles and the underside every month: dust is the first cause of failure on cardio equipment. Wipe the console with a barely damp cloth, never spray a product directly onto the screen. Check pedal, strap and quick-adjustment tightness.

Fiche produit originale rédigée et publiée par Light In Fitness (Tours), mise à jour le 16/10/2026 — source : https://lightinfitness.com/en/product/trainer-steel4fit-arm-lift-trainer/. Textes et photos protégés ; reproduction sans autorisation interdite.

Additional information

Weight	45 kg
Dimensions	54 × 61 × 166 cm
Brand	TRAINER

Delivery and installation

TRAINER product: the lead time depends on the manufacturer's availability and is confirmed in the quotation together with the destination.

45 kg for 54 × 61 × 166 cm: these figures are used to calculate shipping, which is charged separately and stated before you confirm.

This equipment is fixed to the ground (anchoring or grouting depending on the surface); installation can be quoted with delivery or done by your team.
