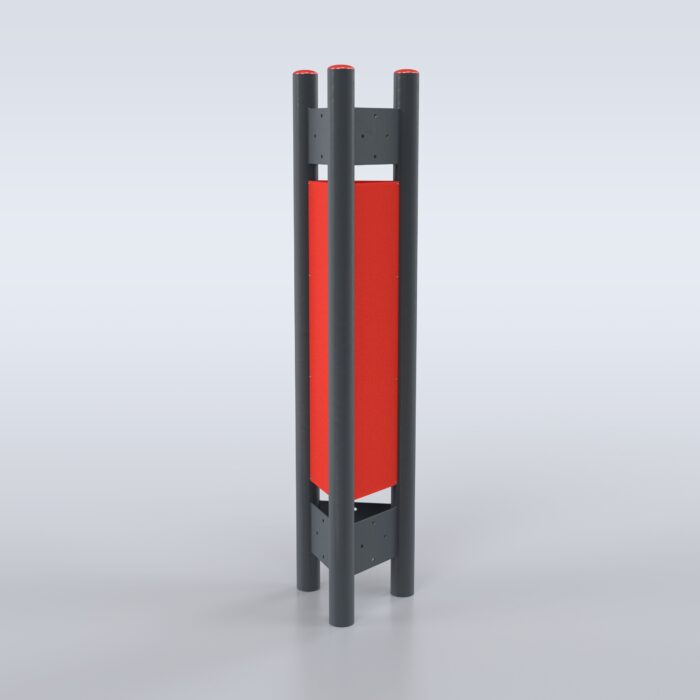

TRAINER P03 Triple Pylon Support Post

The TRAINER P03 triple pylon is the central support post that carries up to three outdoor fitness apparatus from the TRAINER range on a single foundation. EN 16630:2015-06 certified by TUV Rheinland. Price: 1,404 EUR excluding VAT.

One foundation, three stations

Pylon mounted apparatus are supplied without their post for a reason: the post is a project decision, not a product one. How many machines share it, where it sits and how it is set into the ground depends on the area, not on the individual station.

The P03 is the three station version. Instead of three separate foundations, three excavations and three anchoring operations, the area gets one reinforced post carrying three apparatus. The saving is on the civil works line rather than the equipment line, and it is usually the larger of the two.

Compact by design

Grouping three stations around one post also compresses the plan. The apparatus radiate from a single point, so the safety zones overlap efficiently instead of being laid out end to end along a path. On a small municipal plot, that is often what makes the difference between fitting three stations and fitting two.

• Carries up to three TRAINER outdoor apparatus
• Reinforced post designed for stable, durable ground fixing
• Compatible with the TRAINER apparatus that require a vertical support
• Sold as the support accessory, apparatus quoted separately

Materials and finish

Manufactured in high quality steel, shot blasted and galvanised, then covered with a double layer of weather resistant polyester paint. Colours: yellow (RAL 1018/7004), graphite (RAL 7016/9006), orange (RAL 2000/9006), lime (RAL 6018/9006), other shades on request. Galvanised and painted carbon steel, not stainless steel.

Specifications

Frequently asked questions

Which apparatus can be fitted to it?

Any TRAINER apparatus supplied for pylon mounting, which includes most of the OutdoorFit cardio and strength stations. We confirm the combination when we draw the layout, because the choice is constrained by the safety zones as much as by the post itself.

Do I need one post per station?

No, and that is the point. A triple pylon carries three. Single and double versions exist for smaller groupings, and the right mix depends on how the area is laid out.

Is the foundation included?

The post is supplied with its anchoring drawings. The concrete foundation itself is part of the civil works, which we can quote alongside the equipment and the surfacing so the whole project sits on one document.

Send us the surface available and the stations you want to install and we will return a layout plan showing the number of posts required, with a written quotation covering equipment, foundations, surfacing and installation in France. See the full outdoor gym equipment catalogue.
