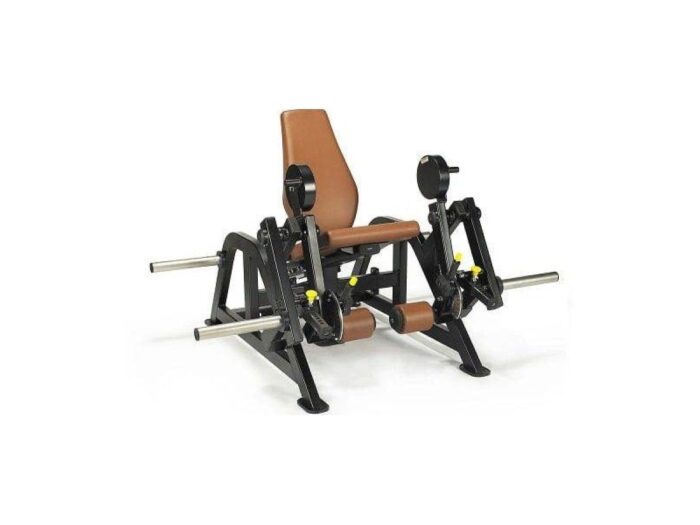

Lexco LS-521 Leg Extension - Plate Loaded

The Lexco LS-521 is a plate-loaded leg extension with two independently driven levers that can be used together or alternately. It measures 137.1 x 164.2 x 115 cm, weighs 161.5 kg and carries the Falcon series specification: full ABS shrouds, memory foam padding and marine-grade upholstery. Professional price: 2,625 EUR excluding VAT.

Quadriceps isolation with a controlled path

The leg extension is the most direct way to load the quadriceps through knee extension alone, without the hip and trunk contribution of a squat or a leg press. On the LS-521 the reclined seat takes pressure off the back of the thigh and holds the pelvis in a biomechanically correct position, so the load stays on the working muscle rather than on the lumbar spine.

• Two independently driven levers: bilateral, alternating or single-leg work
• Adjustable back angle to set the range of movement for each user
• Push-button pivot adjustable to several positions for different limb lengths
• Shaped shin pad for even pressure distribution
• Two integrated plate horns

Suitable for a wide range of users

The combination of adjustable back angle and adjustable pivot means the machine accommodates a broad range of body sizes, which is what a shared commercial floor requires. The independent levers also make it usable in rehabilitation, where one limb is loaded progressively while the other continues at normal intensity, and in strength testing, where left-right differences need to be measurable.

Construction

Welded steel tube frame in a 50 x 105 mm section with a 3.0 mm wall, urethane memory foam sheet padding, full ABS shrouds over the mechanism and marine-grade upholstery. The 161.5 kg unloaded weight keeps the unit stable under heavy plate loading without anchoring.

Frequently asked questions

Can one leg be trained at a time?

Yes. The left and right levers are driven independently, so the machine supports bilateral, alternating and single-leg work without any modification. This is the main reason it is specified in rehabilitation settings alongside commercial gyms.

How is the machine adjusted for a shorter or taller user?

Two adjustments are provided: the back angle, which sets the trunk position and therefore the starting knee angle, and the push-button pivot, which aligns the axis of the machine with the knee joint. Both are tool-free and take a few seconds.

What floor area should be allowed?

The unit occupies 137.1 x 164.2 cm and stands 115 cm high. Allow 70 to 80 cm of clear access for loading and unloading plates, and verify the slab capacity on upper floors given 161.5 kg of frame plus discs.

The LS-521 is quoted at 2,625 EUR excluding VAT, before delivery and installation. Plates are quoted separately. Send us your floor plan and the machines already in place and we will return a complete leg-zone proposal within 24 to 72 hours. See the wider Lexco plate-loaded machines range.
