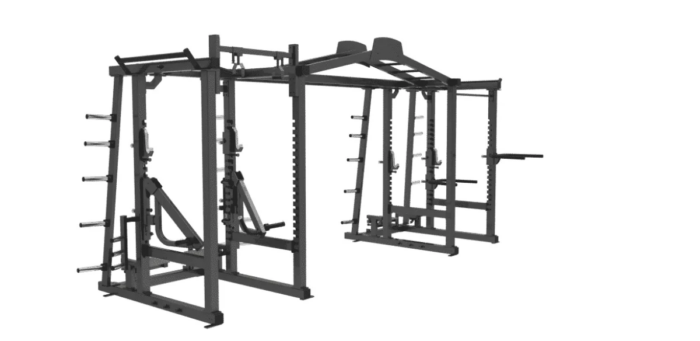

Cross Training Double Rack with monkey bar structure

The Cross Training Double Rack measures 5,700 by 2,032 by 2,883 mm and presents two complete training stations, one on each side, linked by a monkey bar structure running across the top. It is manufactured in tempered steel with a powder coat finish for professional use. The price is 12,500 EUR excluding VAT.

The double sided layout is what defines this rack. Two full stations facing outwards double the capacity of a single rack on a footprint barely wider than one, and the monkey bar architecture overhead turns the space between them into a third training line rather than dead volume.

Stations are adjustable in height by safety notches and are fixed at the corners of the uprights, which means exercises can be performed inside the cage or in front of it. In practice that lets a coach set two different heights for two users on the same side without reconfiguring anything.

Technical specification

Positioning a double sided rack in a training room

A double sided rack has to be placed away from walls, which is the opposite of how a single rack is usually installed. Both faces need working space for a lifter with a loaded bar, and the monkey bar line above requires clearance at each end for users to enter and exit the traverse. Plan the bay accordingly rather than treating the 2,032 mm depth as the space required.

Overall height is 2,883 mm, so confirm the free ceiling height allows a user to hang and traverse above that. Rooms that just clear the structure will not clear a person on the monkey bars.

Underfoot, rubber gym flooring tiles or lifting platforms belong under both stations wherever olympic plates are used. The rack is dimensioned for professional use and welded from tempered steel, so the maintenance items are the adjustable components: check the safety notches and the station fixings on a regular schedule, since they take the load path every time a bar is racked.

Frequently asked questions

How many people can use it at once?

It is designed for small group training, with two complete stations plus the monkey bar line above. The exact number depends on your programming and on the accessories fitted.

Can exercises be done outside the cage?

Yes. Because the adjustable stations are fixed at the corners of the uprights, work can be carried out inside the cage or in front of it.

Is it suitable for olympic loads?

The structure is built in tempered steel for professional use with olympic weights and dumbbells, and is used for CrossFit, street workout, strength training and gymnastics.
