Circular Arena - Multi-Activity Rope Play Structure

In brief — Circular Arena – Multi-Activity Rope Play Structure: dimensions 1640 × 1270 × 490 cm, free fall height 2,3 m, age range 3 to 14 years, safety area 18,6 x 14,3 m, standards EN 1176-1, certification certificate of conformity from an independent certification body, price on quotation.

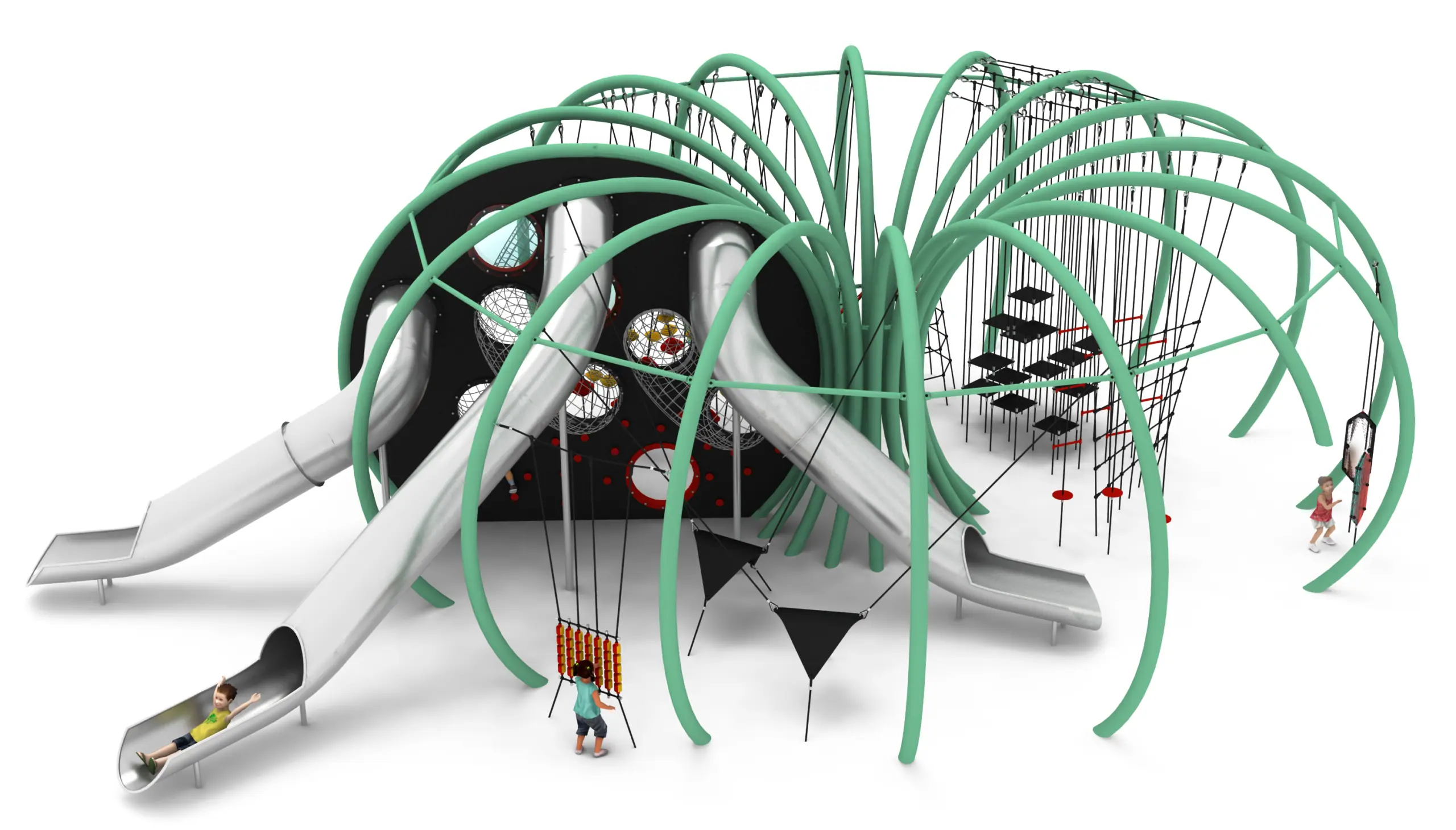

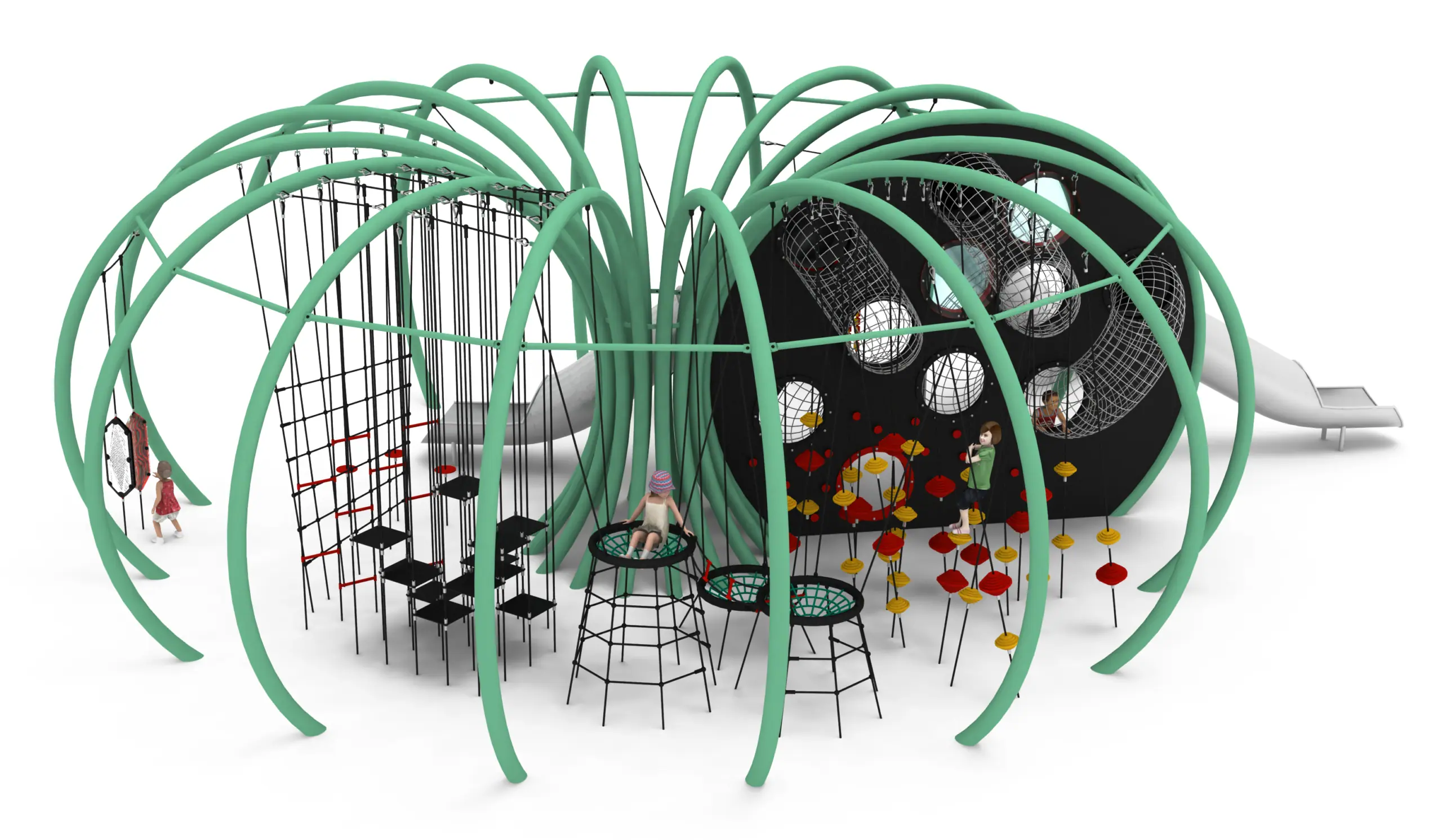

The Circular Arena arranges sixteen steel arches in a ring and fills the space between them with activity: three stainless steel slides at different heights, five net tunnels, a double-sided HPL climbing wall, rotating visual panels and a web of suspended rope elements. Certified from age 3, it is a complete multi-activity playground in one circular structure.

Sixteen arches, one non-stop circuit

The circular plan has no dead ends: children flow around the arena, moving from tunnel to climbing wall to slide and back again. Slides launch from 2.4 m, 3.15 m and 3.65 m so different age groups each find their level, while rotating panels with visual effects, rubber seats and mirror dibond details engage younger visitors at ground level. With a moderate 2.3 m free fall height, the arena delivers big-structure play value with lighter surfacing requirements.

Key features

• Sixteen steel tube arches, diameter 168.3 mm, hot-dip galvanised and powder-coated
• Three stainless steel slides at 2.4 / 3.15 / 3.65 m
• Five net tunnels and numerous suspended rope elements
• Double-sided HPL climbing wall
• Rotating visual-effect panels; polycarbonate and mirror dibond details
• Rubber seats (9 mm) reinforced with polyamide mesh; 18 mm braided polyamide ropes
• Age range 3 to 14; free fall height 2.3 m; foundation depth 1.0 m

Specifications

Frequently asked questions

Why choose a circular layout?

The ring plan creates a continuous circuit with multiple simultaneous activities, spreading children around the structure and making supervision easier – sight lines cross the open centre.

Is the arena genuinely suitable from age 3?

Yes. Ground-level sensory panels, low tunnels and the 2.4 m slide serve younger children, while the higher slides and rope elements challenge users up to 14.

What safety area is needed?

Reserve a minimum of 18.6 x 14.3 m with impact-attenuating surfacing rated for the 2.3 m free fall height, per EN 1176-1.
