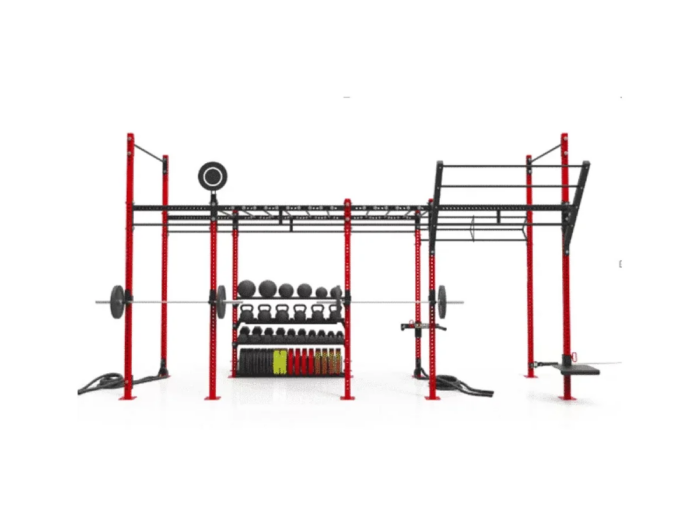

CF202-Pro crossfit rig

The CF202-Pro is a functional training rig measuring 6,250 x 1,250 x 2,700 mm, delivered with its full complement of stations rather than as a bare frame. It combines bodyweight training on the rig with squat rack positions for free weight work, which is what allows a commercial gym to add cross training to an existing weights floor without duplicating equipment. Its size and station count make it the visual centrepiece of a room. The list price is 6,800 EUR excluding VAT.

Uprights are 75 mm steel tube with a 3 mm wall, protected by an epoxy coating that resists marks and wear. Each upright sits on a 10 mm base plate, pre-drilled so the structure can be anchored to the floor.

Technical specification

A complete station list rather than an upgrade path

Rigs are frequently sold as a frame with accessories quoted separately, and the real cost only appears once the station list is priced. The CF202-Pro is supplied with its stations included, which makes the budget predictable and means the rig is fully usable from the day it is commissioned rather than after a second purchase order.

The station mix is deliberately broad. Barbell holders and safety arms cover free weight work, dipping bars and the flying bar cover bodyweight movement, wall ball targets and the triangle beam cover conditioning, and the battle rope anchors and core trainers cover the metabolic end of a session. On a 6.25 m frame, several of those run in parallel, which is what makes it work for class formats rather than individual training.

At 2.70 m high the rig fits under most commercial ceilings, but check the clearance needed above the top bar for muscle-ups and rope work. The 1.25 m depth keeps the structure against a wall or a room edge, leaving the centre of the floor free. Light In Fitness manufactures in Tours and offers extended warranties on its structures.

Frequently asked questions

Does the rig have to be bolted down?

The base plates are 10 mm thick and pre-drilled for floor anchoring, which is the recommended installation for a structure of this size under dynamic loading. The fixing specification depends on your slab and is confirmed with the layout study.

What is included in the price?

The station list above is supplied with the rig. Barbells, plates and consumables such as wall balls and battle ropes are quoted separately according to the programme you intend to run.

How much room does it need?

6,250 by 1,250 mm for the structure itself, plus working space in front for the stations and for barbell work at the rack positions. Shipping runs 5 to 10 working days from stock and quotations are returned within 24 working hours.
