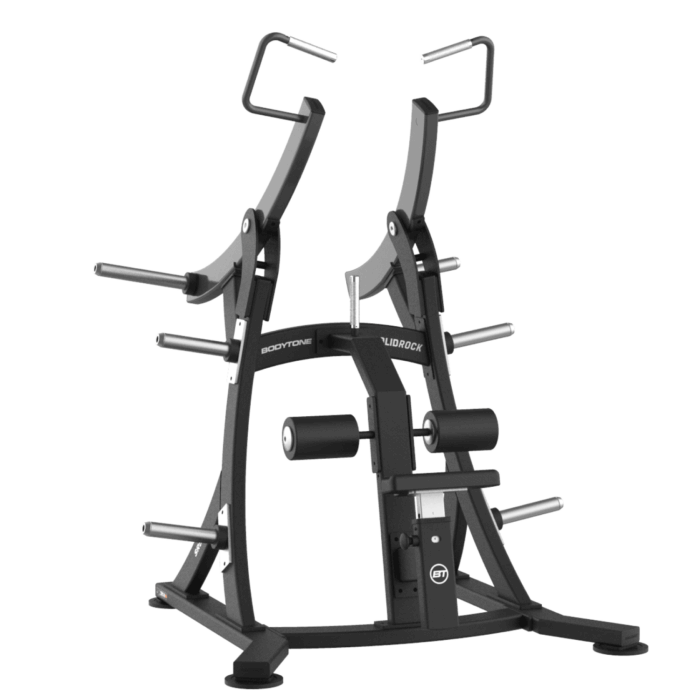

Bodytone Solid Rock SR02E Lat Pulldown - Plate Loaded

The Bodytone Solid Rock SR02E is a plate-loaded lat pulldown with independent converging arms and a training load of up to 240 kg. The frame uses 110 x 52 mm steel tube in 3 mm wall thickness, welded to EN 10219 in S275J0H quality, for a total machine weight of 130 kg. Professional price: 2,640 EUR excluding VAT.

Iso-lateral converging pull

Each arm is loaded and moves separately, so the two sides of the body work independently and a strength asymmetry cannot be hidden by the dominant side. The converging path brings the handles closer together through the pull, which follows the natural line of the latissimus dorsi and reduces the shoulder abduction that a straight-line machine forces at the top of the movement.

• Independent iso-lateral arms, converging trajectory
• Training load up to 240 kg, 310 mm loading pins taking six 20 kg Bodytone plates per arm
• Four plate storage horns on the frame
• Chromed seat post, eight positions, laser-etched numbering for repeatable settings
• Knurled anodised aluminium handles
• Recommended user height range approximately 150 to 200 cm

Muscles worked

The primary target is the latissimus dorsi. The trapezius, rhomboids, biceps and posterior deltoids assist, with the balance shifting according to grip width and range used. The machine suits back-strength blocks, upper-body hypertrophy work and structured return-to-training programmes.

Build quality for continuous commercial use

The tube is cold formed on a four-roller bender, which preserves the mechanical properties of the section rather than work-hardening it at the bends. Pivots run on double tapered roller SKF bearings with a closed anti-loosening ring. Paint is applied in three coats: an antioxidant primer followed by an epoxy polyester powder finish, the same approach used in automotive bodywork. Seat and back pads are moulded high-density EVA foam under perspiration-resistant, antibacterial and hypoallergenic synthetic leather. Plate horns are burnished steel, the stops are turned aluminium, fasteners are grade 10.9, and the machine sits on four non-slip rubber bases with a non-slip user platform.

Frequently asked questions

How much load can the SR02E actually take?

Up to 240 kg of training load, which corresponds to six 20 kg plates on each of the two 310 mm pins. That covers the full range from an assisted rehabilitation load to a heavy strength session without changing machine.

Why choose an iso-lateral lat pulldown rather than a bar?

Independent arms force each side to produce its own force. Over a training block this evens out left-right differences, improves control at the end of the range, and gives a clearer sense of the working muscle than a fixed bar, where the stronger side compensates automatically.

Is it suitable for a high-traffic commercial floor?

Yes. The 3 mm section, the welded EN 10219 frame, the SKF bearings and the three-coat paint system are specified for continuous commercial use in gyms, coaching studios and physical preparation centres.

What floor area should be allowed?

The machine occupies 148 x 160 cm. Allow 70 to 80 cm of clear access on the loading side for plate handling, and check the slab loading on upper floors: 130 kg of frame plus up to 240 kg of plates concentrated on four feet.

The SR02E is quoted at 2,640 EUR excluding VAT, before delivery and installation. Plates are quoted separately so you can match the existing set on your floor. Send us your layout and we will return a complete back-zone proposal within 24 to 72 hours. The rest of the range is shown under Solid Rock plate loaded.
