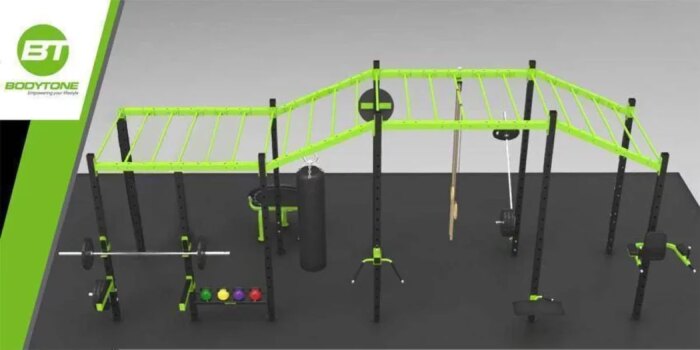

Bodytone Alpha modular crossfit cage

The Bodytone Alpha cage is a modular structure carrying 10 integrated workstations, complete on delivery, in a linear 715 cm format weighing 640 kg. It is the Bodytone reference for crossfit boxes and performance centres that want a ready to use structure rather than a frame to be equipped over time. The stations cover strength, core bracing, suspension, punchbag, pulley, plyometrics and T-bar work: one structure, one supplier, one 10 year warranty on structures and welds.

The frame is built from 3 mm laser cut steel tube with a three layer anti-corrosion treatment and a double coat of pure polyester epoxy cured at 240 degrees Celsius, which is an industrial paint process rather than a workshop finish.

Technical specification

Ten stations on 12.6 square metres

The ratio is what makes this cage interesting commercially. A linear 715 cm run occupying roughly 12.6 square metres delivers ten distinct workstations, which is a density that separate machines cannot approach once circulation space around each is counted. For a box paying commercial rent, that ratio is the argument, ahead of any individual station.

The equipment list also reaches beyond the usual rig vocabulary. A punchbag support, a medicine ball trampoline, a rotating pulley and a T-bar bring striking, reactive throwing and rowing patterns onto the same structure as the pull-up and dip stations. A coach can build a full session without moving the class, and the five multifunction attachments allow the configuration to be changed as programming evolves.

The 240 degree cured epoxy finish and the three layer anti-corrosion treatment are what stand behind the 10 year warranty on structures and welds, which is unusually long for this category. At 640 kg and 304 cm high, confirm the delivery route, the floor loading and the ceiling clearance before ordering.

Frequently asked questions

Are barbells and weights supplied?

No. The cage is delivered with its ten workstations and the equipment listed above; barbells and plates are quoted separately so the loading matches your programme.

Can the cage be extended?

It is modular, built from an Up and Down module, a 2 m module extension and an auxiliary station, so the configuration is defined at order and can be discussed against the dimensions of your room.

What space and ceiling height are needed?

715 by 177 cm on the floor, roughly 12.6 square metres, and 304 cm of height plus clearance above the top bar for muscle-ups and rope work. Light In Fitness supplies and installs across France, Belgium, Switzerland and Luxembourg, and returns quotations within 24 working hours.
