Quelles sont les dimensions du parcours Ninja Warrior SIA 07580 ?

Le parcours mesure 15,56 × 3,05 m pour 3,54 m de hauteur et pèse environ 1 915 kg. La zone d'impact à prévoir est d'environ 151 m² pour une hauteur de chute libre maximale de 3,07 m.

Le parcours est-il conforme aux normes ?

Oui, il intègre 25 composants certifiés EN 1176 et la structure est conforme à la norme EN 16630:2015, avec piliers en acier carré 80 × 80 mm. Un sol amortissant conforme EN 1176 / EN 16630 est obligatoire sur toute la zone d'impact.

Quel est le prix de la structure Ninja Warrior extérieure ?

La structure SIA 07580 est proposée à 28 500 € HT. Le devis avec étude d'implantation et dimensionnement du sol amortissant est transmis sous 24 à 72 h.

SIA 07580 ninja and OCR rig | Light In Fitness

Name: Structure Ninja Warrior Extérieure SIA 07580
Brand: Light In Fitness
SKU: LIF-16843
Price: 28500.00 EUR
Availability: InStock

SIA 07580 outdoor Ninja Warrior and OCR rig, 15.5 m

28 500,00 € HT

Outdoor OCR training rig of 15.56 by 3.05 m with 25 EN 1176 certified components, including salmon ladders, swinging monkey bars and 13 climbing panels. Priced at 28 500 EUR excluding VAT.

Devis chiffré sous 24 h ouvrées. Aucun engagement. Nos garanties

Description

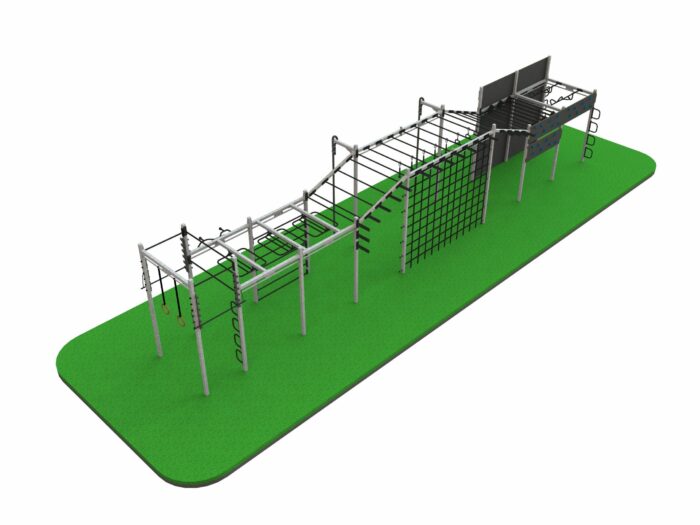

The SIA 07580 outdoor Ninja Warrior rig is a 15.56 m long OCR training course built from 25 EN 1176 certified components and weighing 1 914.87 kg. It measures 15 559 by 3 054 by 3 537 mm and requires a 20 576 by 7 341 mm impact area, roughly 151 m2. The obstacles reproduce what competitors meet on the circuit, including two salmon ladder sets, three swinging monkey bar kits, spinning monkey bars, Revolver rotating pull up bars and 13 climbing wall panels, which is why clubs preparing athletes for Spartan Race, Runmageddon, Barbarian Race and other OCR formats specify it. Manufactured in Europe for year round indoor and outdoor use, it is priced at 28 500 EUR excluding VAT.

Technical specification

Reference	SIA 07580
Structure dimensions	15 559 x 3 054 x 3 537 mm (15.56 x 3.05 x 3.54 m)
Impact area	20 576 x 7 341 mm, approximately 151 m2
Maximum critical fall height	3 065 mm
Total weight	1 914.87 kg
Main pillars	Square steel 80 x 80 mm: 11 at 2 400 mm and 7 at 2 800 mm, plus 11 pillar extensions of 1 056 mm to EN 1176
Number of components	25 listed components, all EN 1176 certified
Suspension obstacles	23 pull up bars 1 776 mm, 3 Revolver rotating pull up bars, 2 spinning monkey bars, 3 swinging monkey bar sets, 9 U-grips, 7 OCR grip training handles
Climbing obstacles	13 climbing wall panels 1 776 mm, 1 climbing rope, 2 salmon ladder sets
Beams and transitions	9 beams with links, 5 straight beams 1 776 mm, 4 beams at 20 degrees, 6 on beam stairways, 4 light version and 4 reversed, 1 plyo platform
Material and finish	Galvanised steel with powder coating or polypropylene, hot dip galvanising available as an option for 25 years of additional service life
Corrosion detail	Drainage holes in every square profile, preventing standing water and ice formation
Use	Indoor and outdoor, all year and in all conditions
Applicable standards	EN 1176 for the components and EN 16630:2015 for permanent outdoor fitness equipment
Customisation	Obstacle configuration, colours and bespoke dimensions
Warranty	2 years
Price	28 500 EUR excluding VAT

Foundations, surfacing and installation

Two foundation methods are supported: setting the pillars directly in concrete following manual EL00-09550A01, or bolting them to anchor plates following manual EL00-15427. On soft ground, the foundation sizing given in EN 1176 clause 4.2.14 applies. The choice usually comes down to whether you already have a slab and whether the rig may need to be relocated later.

Surfacing is the item that decides the budget alongside the rig itself. With a maximum critical fall height of 3 065 mm, impact attenuating surfacing compliant with EN 1176 and EN 16630 and rated for that height is mandatory across the whole impact area of approximately 151 m2, not merely under the obstacles. Grass, bare concrete and loose gravel do not qualify. Set the surfacing budget at the same time as the structure budget.

For very demanding climates, specify hot dip galvanised pillars: the source data credits the treatment with 25 years of additional service life. Every square profile already carries drainage holes so water cannot sit inside the sections and freeze, which is the usual failure mode on outdoor rigs in cold regions. The structure carries a 2 year warranty, with periodic inspection of fixings and wear recommended throughout its life.

Frequently asked questions

Does it reproduce real competition obstacles?

That is the design intent. The inventory includes two salmon ladder sets, the signature ninja obstacle, along with swinging and spinning monkey bars, Revolver rotating bars, OCR grip handles and climbing walls, so athletes train on the same movements they will meet at a Spartan Race, Runmageddon or Barbarian Race event rather than on approximations.

How much ground do we actually need?

The rig itself occupies 15.56 by 3.05 m, but the certified impact area is 20 576 by 7 341 mm, about 151 m2, and that whole surface must be surfaced. Plan around the impact area, not around the structure.

Can the obstacle configuration be changed?

Yes. Obstacle configuration, colours and dimensions can all be specified to your requirements at order stage, so a rig for a youth club and one for a competitive OCR squad can be built from the same component family.

Light In Fitness has supplied professional obstacle course structures from Tours, France since 2013 and returns quotations within 24 working hours. Request a quotation for the SIA 07580, or see the Toroz Ninja Warrior and OCR rigs range.
