Cubes3 Standard - Three-Level Cubic Play Tower
Cubes3 Standard - Three-Level Cubic Play Tower : play towers for playgrounds, marque Light In Fitness, tarif sur devis. Tour de jeu Cubes3 Standard pour aire de jeuxLa tour Cubes3 Standard empile trois cubes en acier, chacun pivoté de 45° par rapport au précédent, pour créer une silhouette graphique et une expérience de jeu multi-niveaux. Livraison et installation chiffrées sur devis en France, en Belgique et en Suisse.
Price on request
Price on request – contact our team for a tailored quotation.
Three rotated steel cubes with spatial nets, tube slide, lattice tunnel and glazed observation walls. The original EN 1176 certified cubic tower, ages 5-14.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-CUBES3STD-1601. Layout study, delivery, installation and after sales.
Priced quotation within 24 business hours. No commitment. Our commitments
Description

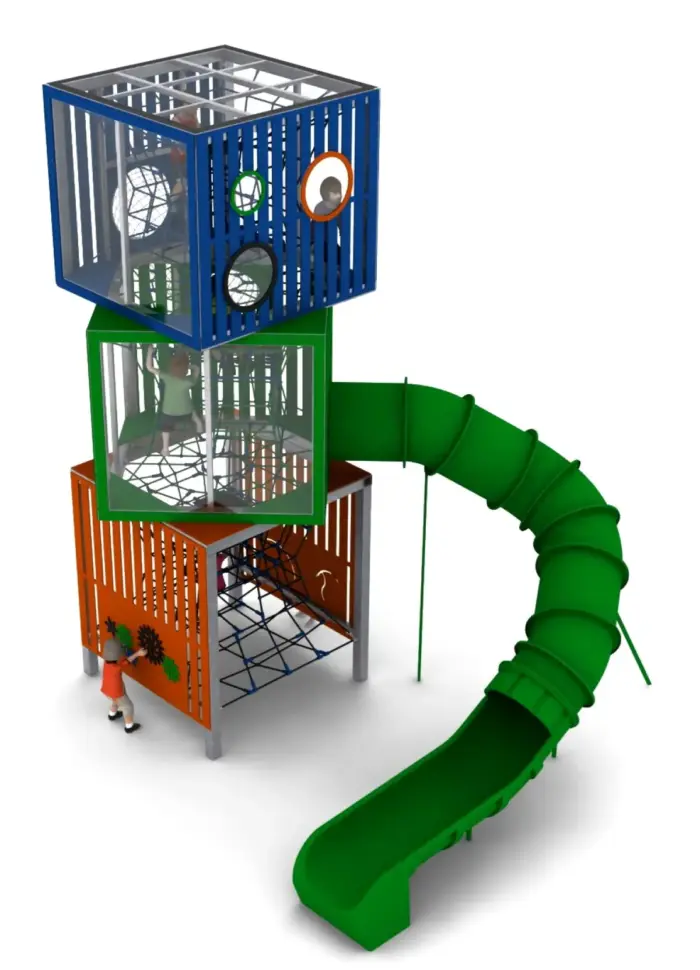

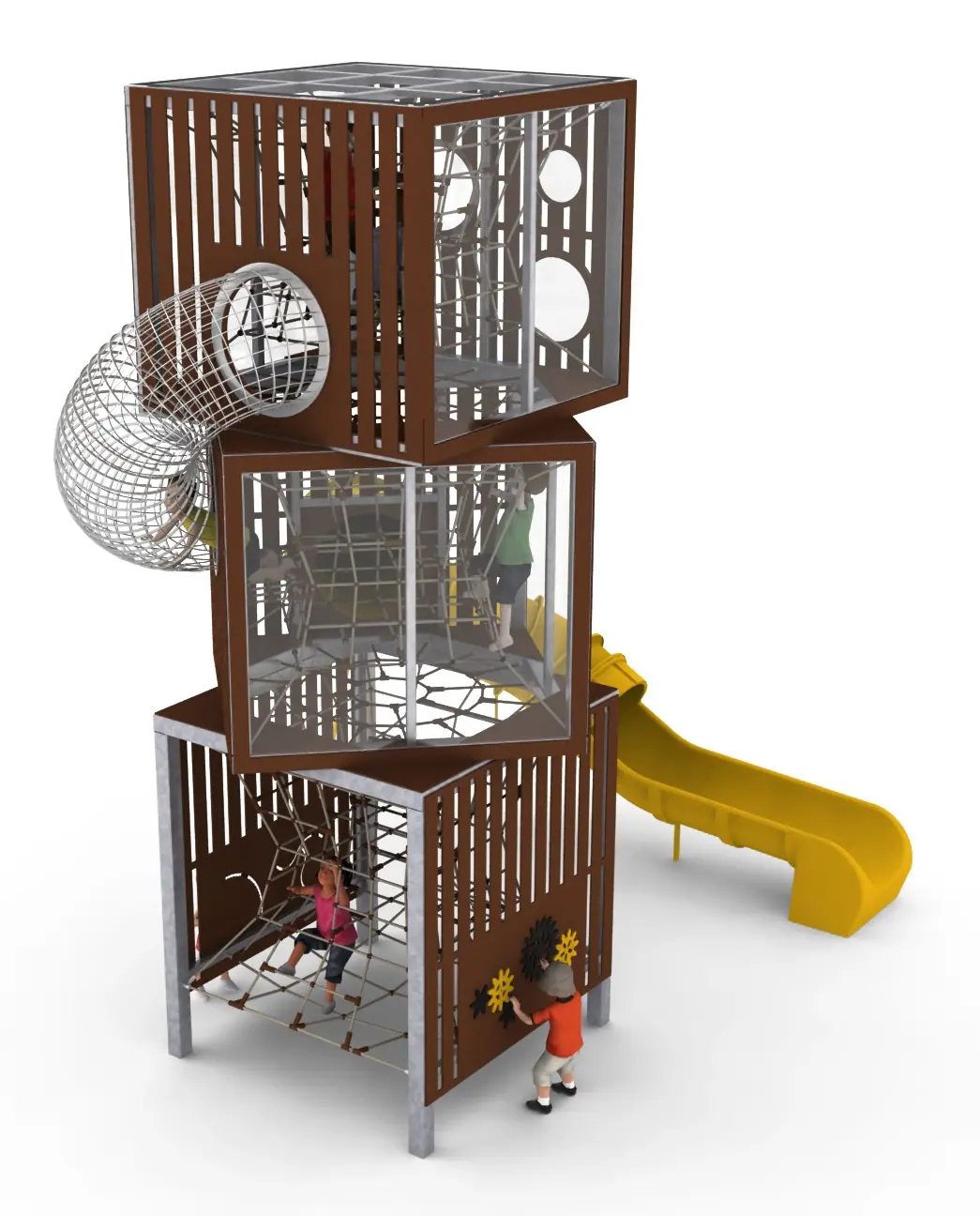

The Cubes3 Standard is the original of our cubic tower family: three steel cubes, each rotated 45 degrees against the one below, forming a graphic 6.5 m silhouette. Spatial rope nets, a tube slide, an open steel-lattice tunnel and translucent observation walls combine into a complete climb-and-look course for children aged 5 to 14.
The archetype of the rotated-cube tower
Play unfolds vertically. The lower cube grounds the experience with educational games, entered by a spatial net over a rubber mat. A rope spider web bridges to the intermediate cube, whose glazed observation walls and portholes of varied diameters frame views out – and where a tube slide launches from 2.7 m. An open steel-lattice tunnel links to the top cube: spatial net, rubber mat and panoramic walls. Clean geometry, acrylic glazing and black steel give the tower a contemporary character that suits parks, squares and school grounds alike.
Key features
- Three steel cubes rotated 45 degrees, in black hot-dip galvanised steel
- Spatial rope nets and rope spider web between levels
- Tube slide, start height 2.7 m
- Open steel-lattice tunnel connecting levels
- Glazed observation walls, portholes of varied diameters, HPL and acrylic glass panels
- 18 mm braided polyamide ropes; aluminium and stainless steel connectors
- Free fall height 2.6 m; foundation depth 1.0 m; minimum space 8.2 x 6.6 m
Specifications
| Reference / SKU | LIF-CUBES3STD-1601 |
|---|---|
| Dimensions | 6.2 m (L) x 5.3 m (W) x 6.5 m (H) |
| Frame | Black hot-dip galvanised steel |
| Finish | HPL and acrylic glass panels, polyamide ropes, stainless steel connectors |
| Standard | EN 1176-1:2017-12, independently certified |
| Price | On request – project quotation within 24 business hours |
Frequently asked questions
Standard, City, Cosmos, Jungle or Ocean – which Cubes3 should I pick?
The Standard offers the neutral, architectural expression with acrylic glazing; the City adds mirror dibond for urban settings, while Cosmos, Jungle and Ocean overlay printed theming. All share the same certified structure and footprint.
What can children see from the tower?
Observation is designed in: glazed walls, portholes of varied diameters and the panoramic top cube give viewpoints at every level of the climb.
What are the ground requirements?
Reinforced concrete foundations at 1.0 m and an 8.2 x 6.6 m safety zone surfaced for the 2.6 m free fall height.
