Tipi Pyramid Rope Play Tower

Tipi - Pyramid Rope Play Tower with Low Fall Height

Tipi - Pyramid Rope Play Tower with Low Fall Height : play towers for playgrounds, marque Light In Fitness, tarif sur devis. Encombrement 1 340 × 830 × 750 cm. Delivery and installation priced on quotation across Europe.

Price on request

Shipping quoted separately The shipping cost is confirmed before you approve the order.

Price on request – contact our team for a tailored quotation.

Pyramid-shaped 7.5 m rope play tower whose four half-storey central shaft limits falls to just 1.5 m. Tube slide from 3.3 m. EN 1176 certified, ages 5-14.

This item is supplied on quotation: configuration, delivery and installation are priced against your project.

Request a quotation +33 6 20 72 66 96

Answer within 24 to 72 business hours, quote reference LIF-TIPITOWER-1630. Layout study, delivery, installation and after sales.

Conformity: equipment designed to EN 1176 (playground equipment); the Light In Fitness declaration of conformity for this reference is supplied on request with the quotation.

Warranty: specified in the quotation for each reference — details of our warranties.

Description

In brief — Tipi – Pyramid Rope Play Tower with Low Fall Height: dimensions 1340 × 830 × 750 cm, material steel, free fall height 1,5 m, age range 5 to 14 years, safety area 17,1 × 12,0 m, standards EN 1176-1:2017-12, price on quotation.

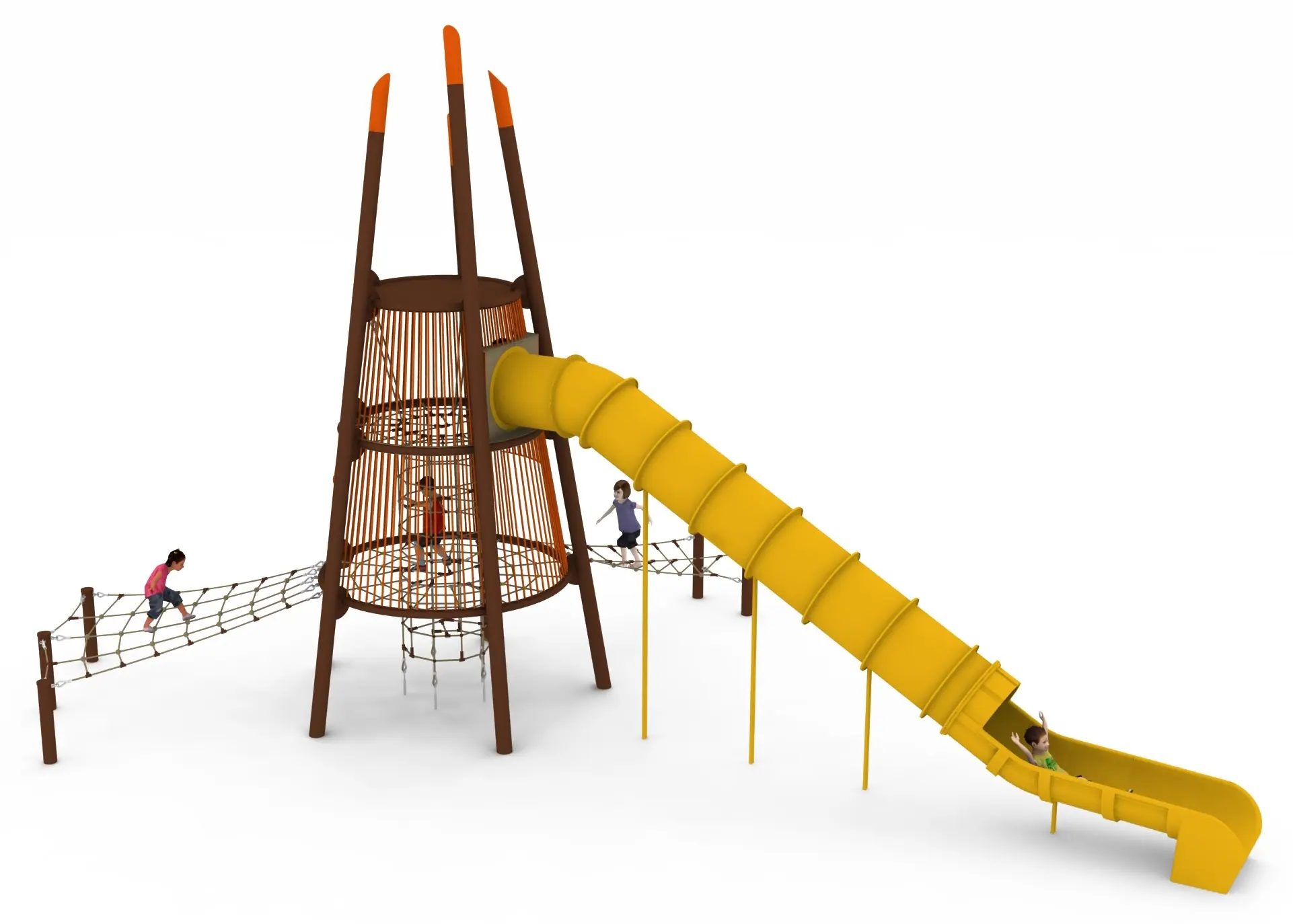

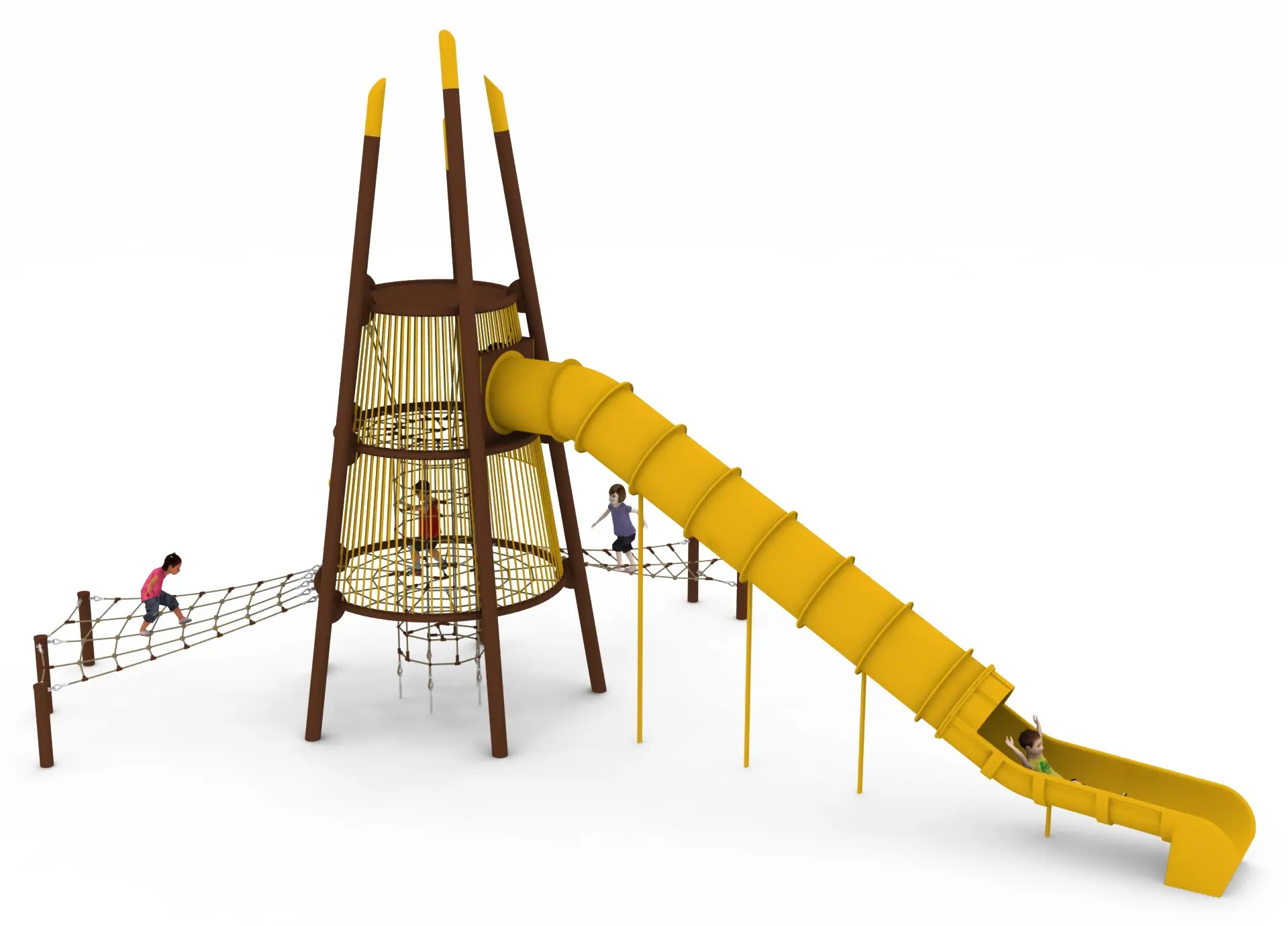

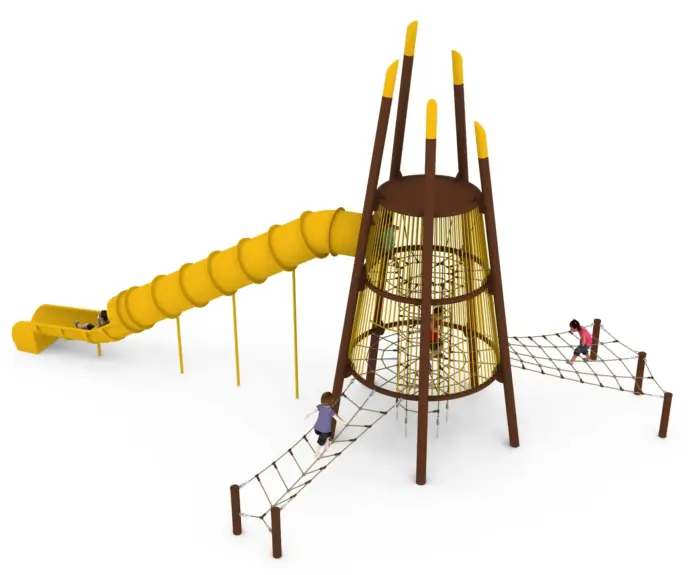

The Tipi play tower rises as a truncated pyramid on five steel posts, its curved arches evoking the outline of a tent. Inside, horizontal rope nets at 1.50 m and 3.30 m organise the play space, and a clever central shaft with four half-storeys keeps every possible fall below 1.50 m – a rare combination of 7.5 m presence and minimal fall height.

Big tower, tiny fall height

The Tipi’s engineering headline is its certified free fall height of just 1.5 m. The four staggered half-storeys of the central shaft mean children aged 5 to 14 are never more than 1.5 m above the surface below them, dramatically reducing surfacing thickness and cost across the 17.1 x 12.0 m safety zone. External access comes via a climbing net and walkway, and a polyethylene tube slide launches from the 3.30 m level for the ride down.

Key features

Five steel posts, diameter 168.3 mm, supporting curved arches of 88.9 mm
Horizontal rope nets at 1.50 m and 3.30 m
Central shaft with four half-storeys limiting falls to 1.50 m maximum
External net and walkway providing additional access routes
Polyethylene tube slide from the 3.30 m level
Hot-dip galvanised steel with anti-corrosion powder coating
Braided, bonded nylon ropes, diameter 18 mm

Specifications

Reference / SKU	LIF-TIPITOWER-1630
Dimensions	13.4 m (L) x 8.3 m (W) x 7.5 m (H)
Frame	Hot-dip galvanised steel posts, diameter 168.3 mm, arches 88.9 mm, powder-coated
Finish	Anti-corrosion powder coating, 18 mm bonded nylon ropes, polyethylene slide
Standard	EN 1176-1:2017, certified
Price	On request – project quotation within 24 business hours

Frequently asked questions

How does a 7.5 m tower achieve a 1.5 m fall height?

The central shaft is divided into four half-storeys of rope netting, so every stage of the climb has a net no more than 1.5 m below – the certified value that determines surfacing.

What savings does the low fall height bring?

Surfacing rated for 1.5 m is significantly thinner and cheaper than the 3.0 m specification common on towers of this size, reducing total project cost.

How do children move through the Tipi?

They enter via the external net or walkway, climb the internal half-storeys to the nets at 1.50 m and 3.30 m, and exit by the tube slide – a continuous circuit that limits congestion.
