ANTARES Rotating Climbing Net
ANTARES Rotating Climbing Net : playground roundabouts and rotating play equipment, marque Light In Fitness, tarif sur devis. Antares – Dispositif rotatif d'escalade et de jeuL'Antares est un équipement rotatif qui combine escalade en filet de corde et amusement façon carrousel classique. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Rotating rope climbing net with bonded polyamide rope and 0H18N9 stainless guide rings, for demanding environments. EN 1176.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-ANTARES-803. Layout study, delivery, installation and after sales.
Description

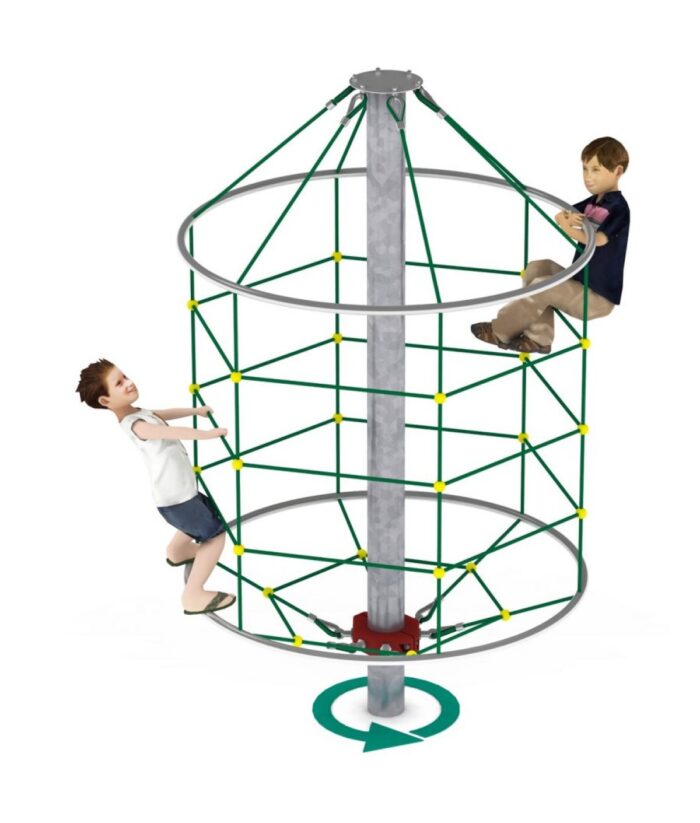

ANTARES is specified where a rotating climbing net has to survive a hard environment: seafront promenades, campsites that stand empty and salt-laden all winter, schools with no maintenance budget between inspections. The construction is the argument. The rope is braided and bonded rather than braided alone, the guide rings top and bottom are 0H18N9 austenitic stainless steel, and the rope-to-column fixings are protected with chloroprene rubber paint over cast and stainless components.
Specification detail that decides the service life
- Bonded braid: the outer strands are fixed to each other, so a cut or an abrasion does not unravel along the rope. On a rotating net, where the rope works against its fixings on every turn, this is the difference between a repair and a replacement.
- Galvanised steel strands inside the rope resist cutting and hold the mesh geometry under load.
- Upper and lower guide rings in 0H18N9 stainless steel tube, 42.4 mm diameter — the two points that see the most movement, and therefore the two worth specifying in stainless.
- Central column in hot-dip galvanised steel of 219.1 mm diameter: the frame is galvanised steel, not stainless, and the stainless is placed where it earns its cost.
- Chloroprene rubber paint on the cast fixings, chosen for flexibility and weather resistance rather than appearance.
Play value
Children climb the net while it turns around the column, generating the rotation themselves. There is no seat and no handle, so the item cannot be spun by one child for another — a common source of incidents on traditional roundabouts. It sits naturally alongside static items from our rope climbing nets range.
Technical specification
| Reference | LIF-ANTARES-803 |
|---|---|
| Dimensions | 1.8 m (L) x 1.8 m (W) x 3.0 m (H) |
| Age range | 3 to 14 years |
| Free height of fall | 2.3 m |
| Safety area | 6.0 m diameter circle |
| Frame | Hot-dip galvanised steel column, 219.1 mm diameter |
| Rope | 18 mm braided and bonded polyamide, galvanised steel strand reinforcement |
| Finish | Hot-dip galvanised; chloroprene rubber paint on fixings; 0H18N9 stainless rings |
| Foundation depth | 1.0 m, reinforced concrete |
| Standard | EN 1176, certificate issued by an independent certification body |
| Price | On request — project quotation within 24 business hours |
Frequently asked questions
What is 0H18N9 stainless steel?
It is an austenitic chromium-nickel stainless grade, used here for the tubular guide rings because they are in constant contact with the moving rope assembly and are the components least accessible for recoating.
Are spare ropes available separately?
Yes. Rope sections, connectors and rings are supplied as spares, which is the reason to buy a rope item from a range with a documented parts list rather than as a one-off.
How is the item inspected?
Routine visual checks look for cut or abraded rope and loose fixings; the annual main inspection covers the bearing, the rings and the foundation. Rope wear concentrates at the fixings, so that is where the inspector looks first.
Tell us your site conditions — coastal, inland, supervised or open access — and we will confirm the specification and return a costed proposal within 24 business hours.
