Pickleball PVC court roll, 2 mm: compact 7.2 x 15 m court, EN 14904 compliant, indoor use
The compact format of the range: 7.2 x 15 m, i.e. 108 sq m, against 162 sq m for the 9 x 18 m court. It covers the official IFP playing area of 6.10 x 13.41 m with reduced run-off, on a footprint brought down to 15 m long, the most common constraint in municipal sports halls, community halls and existing multi-sport spaces.

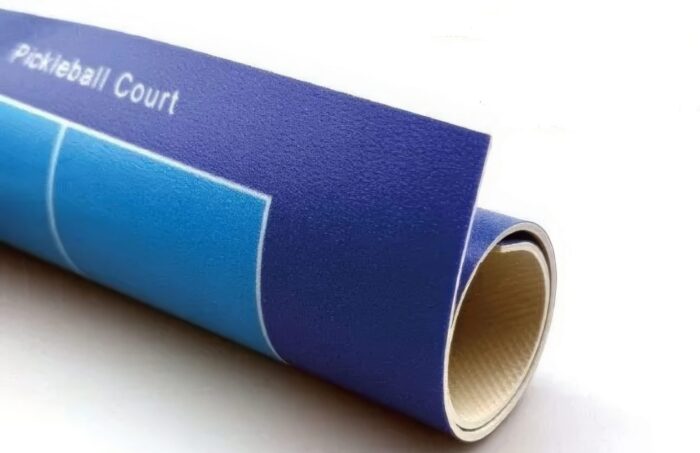

The court is delivered as four 1.80 m wide strips, joined on site by hot welding (permanent installation) or with single-sided tape (demountable installation). Once joined, it forms a single continuous surface: no open seam, no change of level.

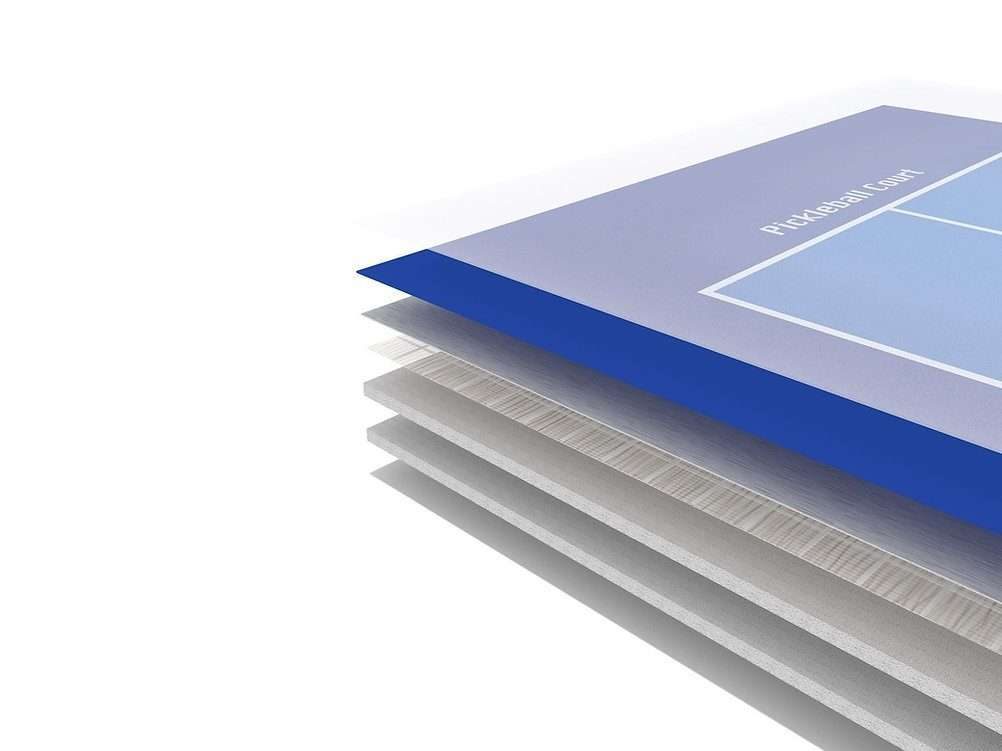

The surface is a multilayer build: protective anti-stain and anti-scratch layer, quartz sand layer for grip, transparent wear layer, HD-printed colours and lines, fibreglass reinforcement, high-density foam and anti-slip diamond backing. Performance is compliant with the intended use defined by EN 14904:2006 + A1:2008 (indoor sports surfaces). Fire classification Bfl-s1 (EN 13501-1:2018), SGS-CSTC test report no. GZMR260300962801 dated 10/04/2026, handed to the customer after the order. Estimated service life of 8 to 15 years, 3-year warranty. Full customisation of colours, lines and logo. Quotation on request.
Technical specification: 2 mm pickleball PVC floor, 7.2 x 15 m court
| Product | Pickleball PVC sports floor, 2 mm, compact court |
| Court format | 7.2 x 15 m, 108 sq m, delivered as four strips of 1.80 x 15 m |
| Playing area covered | 6.10 x 13.41 m (official IFP dimensions), reduced run-off: about 0.79 m behind the baselines, 0.55 m at the sides |
| Thickness | 2 mm |
| Weight | 86.4 kg per 1.80 m strip, about 345.6 kg for the complete court (four strips) (EN ISO 23997 / EN 430) |
| Structure | Multilayer build: protective layer (stains and scratches), quartz sand, transparent wear layer, HD printing, fibreglass reinforcement, high-density foam, anti-slip diamond backing |
| Court lines | Official lines (service, baseline, sidelines) printed during manufacture: bright white, 5 cm wide, pre-treated, resistant to wear and shoe friction |
| Colours | Standard grey / blue / green; full customisation of colours, patterns and logo on request |
| Joining the strips | Hot welding (permanent installation) or single-sided tape, alternatively double-sided tape (demountable installation) |
| Use | Indoor (EN 14904 sports surface); outdoor use possible as a temporary installation |
| Reaction to fire | Bfl-s1, EN 13501-1:2018 (SGS-CSTC test report no. GZMR260300962801 dated 10/04/2026, handed to the customer after the order) |
| CE marking | EN 14041:2004, declaration of performance no. DOP-002-003-A under Regulation (EU) No 305/2011; declared performance: shock absorption, slip resistance, abrasion resistance and heavy-load resistance |
| Emissions and hygiene | TVOC at 28 days < 100 µg/m³ (ISO 16000-6, requirement ≤ 1,000); antibacterial activity ≥ 99.99 % (ISO 22196) |
| Packaging | Rolls wrapped in recycled paper, delivered in a wooden transport crate |
| Strip width and length | 1.80 m wide (EN ISO 24341 / EN 426); length adapted to the project, custom court sizes possible |
| End of life | Recyclable flooring (technical data sheet, edition 04/2026) |
| Estimated service life | 8 to 15 years depending on intensity of use |
| Warranty | 3 years (excluding damage caused by transport and moving the product) |
| Delivery | Mainland France, French overseas territories, Belgium, Switzerland, Luxembourg |
| Price excl. VAT | EUR 3,150 excl. VAT per complete court (7.2 x 15 m), i.e. EUR 29.17/sq m, volume pricing from two courts, quotation on request |
Measured performance: standard tests
The values below are taken from the flooring’s technical data sheet, based on the test methods referenced by EN 14904 for indoor sports surfaces.
| Property | Test standard | Requirement | Result |
|---|---|---|---|
| Shock absorption | EN 14808 | ≥ 25 % | 26 % |
| Vertical deformation | EN 14809 | 0.6 to 2.2 mm | 1.8 mm |
| Slip resistance | EN 13036-4 | 80 to 110 | 80 to 110 |
| Ball bounce | EN 12235 | ≥ 90 % | 97 % |
| Abrasion resistance | EN ISO 5470-1 | ≤ 200 mg | 150 mg |
| Rolling load resistance | EN 1569 | ≤ 0.5 mm | 0.48 mm |
| Dimensional stability | EN ISO 23999 | ≤ 0.4 % | 0.001 % |
| Impact resistance | EN 1517 | ≥ 8 N/m | ≥ 8 N/m |
| Indentation resistance | EN 1516 | ≤ 0.5 mm | ≤ 0.2 mm |
| Chemical resistance | EN 14904 | Class E1 | Class E1 |
Source: flooring technical data sheet, edition 04/2026. The data sheet and the declaration of performance are supplied on request, in particular for public procurement files. The reaction-to-fire test report (SGS-CSTC no. GZMR260300962801, 10/04/2026) is handed to the customer after the order.
7.2 x 15 m or 9 x 18 m format: which one for your space?
The two courts are identical in every respect: same 2 mm PVC flooring, same multilayer build, same performance, same installation method. Only the dimensions change, and with them the size of the run-off around the playing area.
| Criterion | 7.2 x 15 m format (this page) | 9 x 18 m format |
|---|---|---|
| Surface covered | 108 sq m | 162 sq m |
| Footprint required | 15 x 7.2 m | 18 x 9 m |
| Number of strips | 4 strips of 1.80 x 15 m | 5 strips of 1.80 x 18 m |
| Run-off behind the baseline | about 0.79 m | about 2.29 m |
| Side run-off | about 0.55 m | about 1.45 m |
| Recommended context | Training, group classes, recreational use, hall limited in length | Dedicated court, club, sports complex, high-intensity play |
| Other sports possible | Badminton, mini-tennis depending on printed lines | Badminton, mini-tennis depending on printed lines |
| Price excl. VAT | EUR 3,150, EUR 29.17/sq m | EUR 4,375, EUR 27.00/sq m |
A simple rule: if your hall is less than 18 m long or less than 9 m wide, the 7.2 x 15 m format is the one that fits. If the footprint allows it, the 9 x 18 m format gives much more comfortable run-off around the playing area.
Court markings

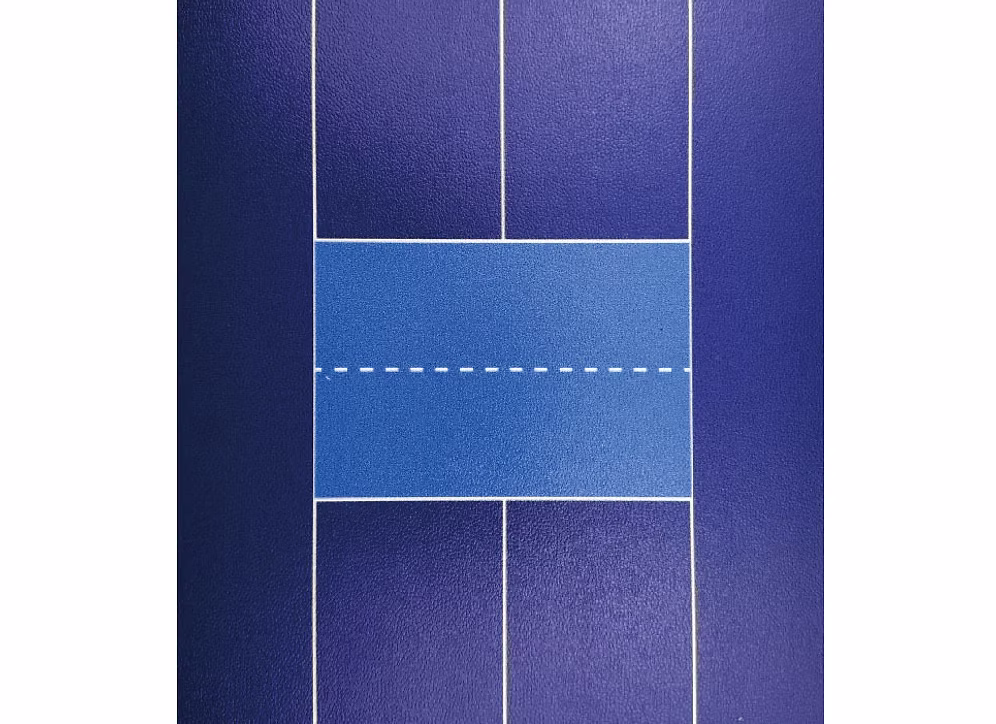

The printed lines reproduce the official layout: a 13.41 x 6.10 m playing area (singles and doubles on the same court), service line, baseline, sidelines and the 2.13 m non-volley zone on each side of the net, all in 5 cm wide white. The net sits at the centre of the court, 91.4 cm high at the posts and 86.4 cm at the centre according to the rules of the game; the net on wheels offered with the court is positioned and removed without tools.
The technical data sheet describes the surface as designed for three requirements: performance (grip, footing and pace of play at world championship, international competition and official qualifying level), safety (lower risk of slipping and injury) and durability (intensive use by local authorities and clubs). Ball bounce measured at 97 % and controlled slip resistance give consistent play from one end of the court to the other; 26 % shock absorption is kind to the joints during long sessions.
Subfloor: the condition to check before ordering
The court must be installed on a clean, flat, hard and homogeneous surface. The subfloor must meet the flatness tolerances defined by French standard NF P90-110; as a guide, flatness defects must not exceed 6 mm under a 3 m straightedge. Any irregularity likely to affect the stability of the flooring or the quality of play must be corrected before installation.
Compatible subfloors: concrete slab, asphalt concrete, porous concrete (the one used on tennis courts is ideal), parquet, PVC floor, acrylic resin court.
Not recommended without a suitable structure first: soil, grass, artificial turf, unstabilised gravel, sand.
If in doubt, send us photos of the subfloor and its dimensions: we will confirm whether preparation is needed before issuing the quotation.
Installation, assembly and dismantling
Permanent installation: hot welding
The strips are hot-welded together and the court becomes a single piece. This is the solution for a permanent installation, but it also works for events, since the complete roll can be rolled up again in a few minutes. Allow 2 people and 4 courts per half day for the first welded installation, then about 10 minutes to roll or unroll each court for a 7.2 m wide roll. A dedicated handling trolley moves the complete roll without lifting its weight.
Demountable installation: single-sided tape
If the court is regularly installed and removed, single-sided tape is preferable: it holds the strips together while allowing them to be separated again for easy removal. In practice, cut about 1 m of single-sided tape and apply it underneath, between each strip. For an event set-up, allow 2 to 3 people, 1 hour to install and 45 minutes to dismantle.
Before first use
We recommend unrolling and laying out the rolls 24 hours before use: the flooring relaxes and recovers its flatness after transport.
Delivery and storage
The rolls are wrapped in recycled paper and delivered in a wooden transport crate. For off-season storage, keep them flat, in their crate: never stack rolls on top of each other and never store them upright; the resulting deformation is permanent.
Maintenance
- Clean regularly to remove dust, marks and other residues with a mop or a fringe broom.
- Use only soap and pH-neutral cleaning products in a weak solution.
- Play in clean indoor sports shoes.
Do not: use unsuitable or dirty shoes with black soles, which mark the floor; use acids (bleach, vinegar, toilet cleaners), alkalis (butyl cleaners, high-pH strippers) or petrochemical products (cleaners containing oil, grease, solvents or abrasives); place furniture on the playing surface; leave dirt or liquids on the surface.
Which installation context?
Municipal sports hall or community hall with size constraints. Most school and municipal halls built before 2000 measure 20 to 28 m long by 12 to 14 m wide: they host two badminton courts or one handball court, and 18 m of length for a single pickleball court then encroaches on the other uses. The 7.2 x 15 m format fits these constraints without sacrificing the other activities. EN 14904 compliance, CE marking and the declaration of performance support grant applications and user agreements.
Multi-purpose sports space: pickleball, badminton and mini-tennis on the same floor. Ball bounce measured at 97 % (EN 12235) and controlled slip resistance (EN 13036-4, 80 to 110) suit several racket sports. The same court, with lines of different colours printed during manufacture, can mark out a pickleball court and a badminton court at the same time: the 7.2 m width covers the 6.10 m of a badminton court. For an association that wants to spread the investment over several activities, this format is the most efficient on an already constrained surface.
Hotel, campsite, senior residence, leisure centre: seasonal installation. Installed in 1 hour, dismantled in 45 minutes, the complete court rolled up in a few minutes: the compact format is also the easiest to store off season (108 sq m of flooring instead of 162) and to handle when laid again. Customisation, such as the venue’s colours or logo, is printed during manufacture: it does not wear off with repeated cleaning.
What to know before buying
1. The run-off is reduced: check that it suits your use. The official playing area is 13.41 x 6.10 m. This format leaves about 0.79 m behind each baseline and 0.55 m at the sides, where the recommended safety zone around a court is 2.44 m on each side. For training, group classes and recreational use, these margins are commonly accepted. For a club aiming at refereed competition, the 9 x 18 m format is preferable.
2. The flooring does not correct subfloor defects. Cracked concrete, raised tile joints, oil or resin marks: these defects show through the flooring and create lifting points in use. The reference is NF P90-110 flatness, with defects not exceeding 6 mm under a 3 m straightedge; levelling may be required before installation.
3. It is an indoor sports surface. The product is designed and tested for indoor use within the meaning of EN 14904. Outdoors, we recommend a temporary installation, for a tournament, an activity or an event, rolled up after use. For a permanent outdoor court, tell us about the project beforehand.
4. EN 14904 compliance is not a competition approval. IFP or USAPA rules have their own surface specifications. For official competitions under federation rules, have the surface confirmed by your federation before ordering.
Complementary equipment
Two accessories complete the court, available on request: a pickleball net on wheels with stabilising pads (black), movable without dismantling, and a handling trolley designed to move the complete roll without lifting its weight, useful whenever the court is installed and removed several times a year. Ask us for a price together with the flooring quotation. Both formats and the accessories are on the pickleball court rolls page.
Frequently asked questions: 7.2 x 15 m pickleball PVC floor
Our hall is 14 m long: can we still install this court?
The strips can be cut to fit a shorter length, but the cut is irreversible and reduces the run-off even further. Below 13.41 m in length, the official playing area no longer fits and the court can no longer be regulation size. Give us your exact dimensions: we also produce custom sizes.
Is the court delivered in one piece?
No: four strips, 1.80 m wide and 15 m long, joined on site. Hot-welded, they become a single piece; taped underneath with single-sided tape, they remain separable for removal. In both cases there is no open seam that could alter the bounce or catch a shoe.
Can this floor take a badminton or volleyball net in addition to the pickleball lines?
The 7.2 m width is compatible with a badminton court (6.10 m wide), and the lines of both sports can be printed in different colours during manufacture. For weighted mobile net posts, check the footprint: the indentation resistance of the flooring is measured at 0.2 mm maximum (EN 1516), but a very concentrated point load should still be avoided. Send us the reference of your posts if in doubt.
How does an order for a multi-court complex work?
We issue a global quotation with volume pricing and supply the full technical documentation: data sheet with test results, CE marking under EN 14041:2004 and declaration of performance under Regulation (EU) No 305/2011, Bfl-s1 reaction-to-fire test report (EN 13501-1:2018). For public procurement, the quotation is formalised with references and lead times. Send us the number of courts and the available dimensions: we propose the best split between the 7.2 x 15 m and 9 x 18 m formats.
Where is the non-volley zone and how high should the net be set?
The non-volley zone, or kitchen, extends 2.13 m on each side of the net; it is printed on the flooring with the other official lines, in 5 cm white. The net is set at 91.4 cm at the posts and 86.4 cm at the centre, in accordance with the rules of the game. The court hosts singles and doubles on the same layout.
