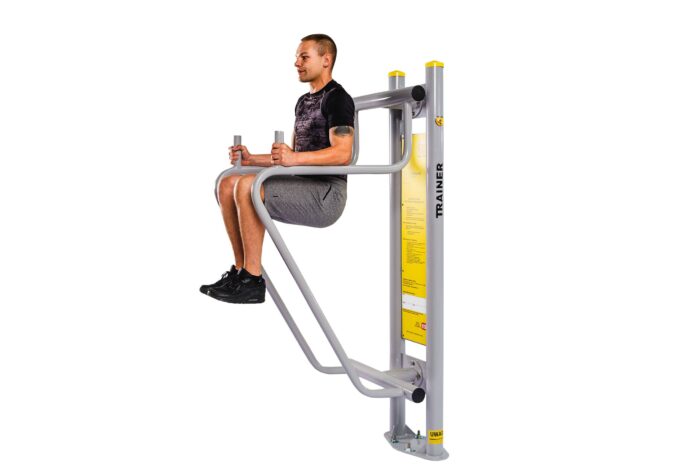

Raising Leg TRAINER Steel4Fit - Outdoor Hanging Leg Raise

The Raising Leg TRAINER Steel4Fit is a hanging leg-raise station from the reinforced Steel4Fit range, measuring 102 x 71 x 202 cm and weighing 25 kg plus 50 kg for its mounting pylon. It requires a safety zone of 482 x 451 cm, is rated difficult, and is certified to EN 16630:2015 and tested by TUV Rheinland. Light In Fitness supplies it at 1,026 EUR excluding VAT.

The hardest core exercise a public site can offer

Hanging leg raises are the reason this reference carries a difficult rating. The user supports their entire bodyweight through the arms and shoulders while the abdominals lift the legs against gravity, so grip, upper body and core all have to hold at once. Nothing on a standard fitness trail comes close, which is exactly why calisthenics practitioners look for it. Straight-leg raises, knee raises, tucked holds and windscreen wipers are all performed on the same frame, giving a progression that runs from a beginner who can only hang to an advanced user working toward front lever variants.

• Targets the abdominals and the arms, and improves back muscle condition
• Recruits several muscle groups at once depending on the variant chosen
• Difficulty rated difficult, for users with existing hanging strength
• Minimum user height 140 cm, maximum user weight 150 kg
• Steel4Fit reinforced range in red and graphite, RAL 3000 / RAL 7016

What the Steel4Fit designation covers

Steel4Fit is the reinforced TRAINER range built for high-intensity public sites: curved elements produced from seamless tube, straight components from structural section, then hot processed and given two powder coat layers, with the characteristic red and graphite finish. It is specified where a site is expected to take heavy, sustained use, typically an urban park with a resident calisthenics community rather than a quiet trail. Steel4Fit modules mount on the Steel4Fit pylon and are not interchangeable with the other TRAINER ranges, since EN 16630 certification applies to the assembly as installed.

Pylon and groundworks

The 25 kg apparatus weight is the module alone; the mounting pylon adds 50 kg and is a separate line on the quotation. Because the exercise is performed hanging, the free height of fall is set by the user’s grip height and impact-attenuating surfacing across the full 482 x 451 cm zone should be assumed in the budget from the outset.

Specification

Frequently asked questions

Is the pylon included in the price?

No. The quoted figure is for the apparatus. The Steel4Fit pylon is ordered separately and can carry more than one module, so the cost per training position falls as the station grows. We check the module-to-pylon ratio on the layout before quoting.

Should a difficult-rated station go on a general public site?

Yes, provided the plan also carries easy and medium references. A site with no demanding apparatus is abandoned by the users who train most often, and it is those users who give an area its visible activity. One difficult station in a plan of eight is a sound balance.

How does Steel4Fit differ from the standard TRAINER ranges?

It is the reinforced specification: heavier construction, a two-stage coating process and the red and graphite livery, aimed at intensive municipal use. The trade-off is a higher unit price and a dedicated pylon system that cannot be mixed with the other ranges within one certified assembly.
